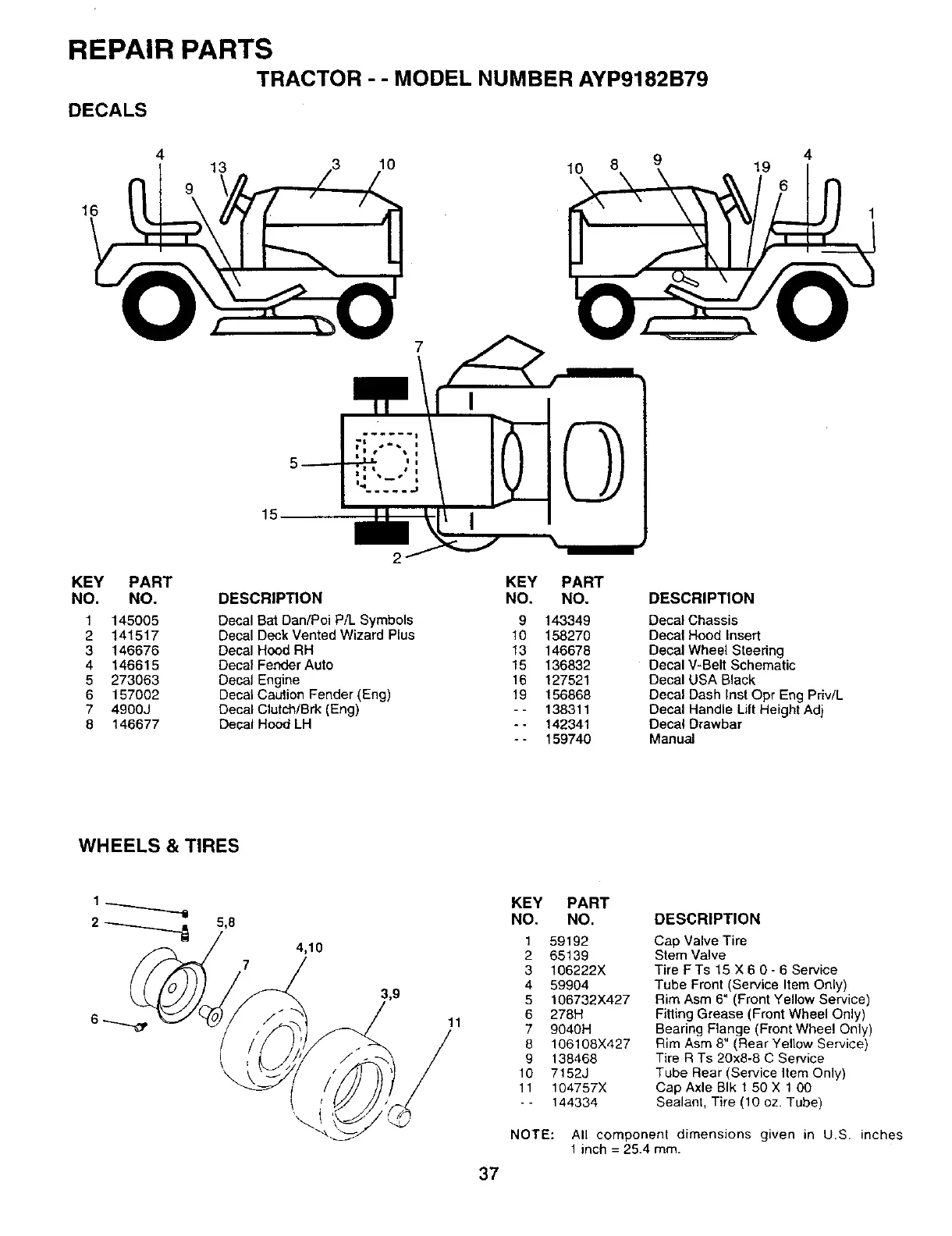

REPAIR PARTS
TRACTOR - - MODEL NUMBER AYP9182B79
DECALS
16
4
13 10 10 8
9
9
4
19
15
2
KEY PART KEY PART
NO. NO. DESCRIPTION NO. NO.
1 145005 Decal Bat Dan/Poi P/L Symbols 9 143349
2 141517 Decal Deck Vented Wizard Plus 10 158270
3 146676 Decal Hood RH 13 146678
4 146615 Decal Fender Auto 15 136832
5 273063 Decal Engine 16 127521
6 157002 Decal Caution Fender (Eng) 19 156868
7 4900J Decal Clulch/Brk (Eng) - - 138311
8 146677 Decal Hood LH - - 142341
- - 159740
DESCRIPTION
Deca_ Chassis
Decal Hood Insert
Decal Wheel Steering
Decal V-Belt Schematic
Decal USA Black
Decal Dash lest Opr Eng Priv/L
Decal Handle Lift Height Adj
Decal Drawbar
Manual
WHEELS & TIRES
4,10
7
\
37
KEY PART
NO. NO.
1 59192
2 65139
3 106222X
4 59904
5 106732X427
6 278H
7 9040H
8 106108X427
9 138468
10 7152J
11 104757X
-- 144334
DESCRIPTION
Cap Valve Tire
Stem Valve
Tire F Ts 15 X 6 0- 6 Service
Tube Front (Service Item Only)
Rim Asm 6" (Front Yellow Service)
Fitting Grease (Front Wheel Only)
Bearing Flange (Front Wheel Only)
Rim Asm 8" (Rear Yellow Service)
Tire R Ts 20x8-8 C Service
Tube Rear (Service item Only)
Cap Axle BIk 1 50 X 1 00
SealanL Tire (10 oz. Tube)
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 ram.
