Western DEFENDER - Hydraulic Unit; System Capacity; Cab Controls

Lit. No. 72451, Rev. 03 12 October 15, 2019

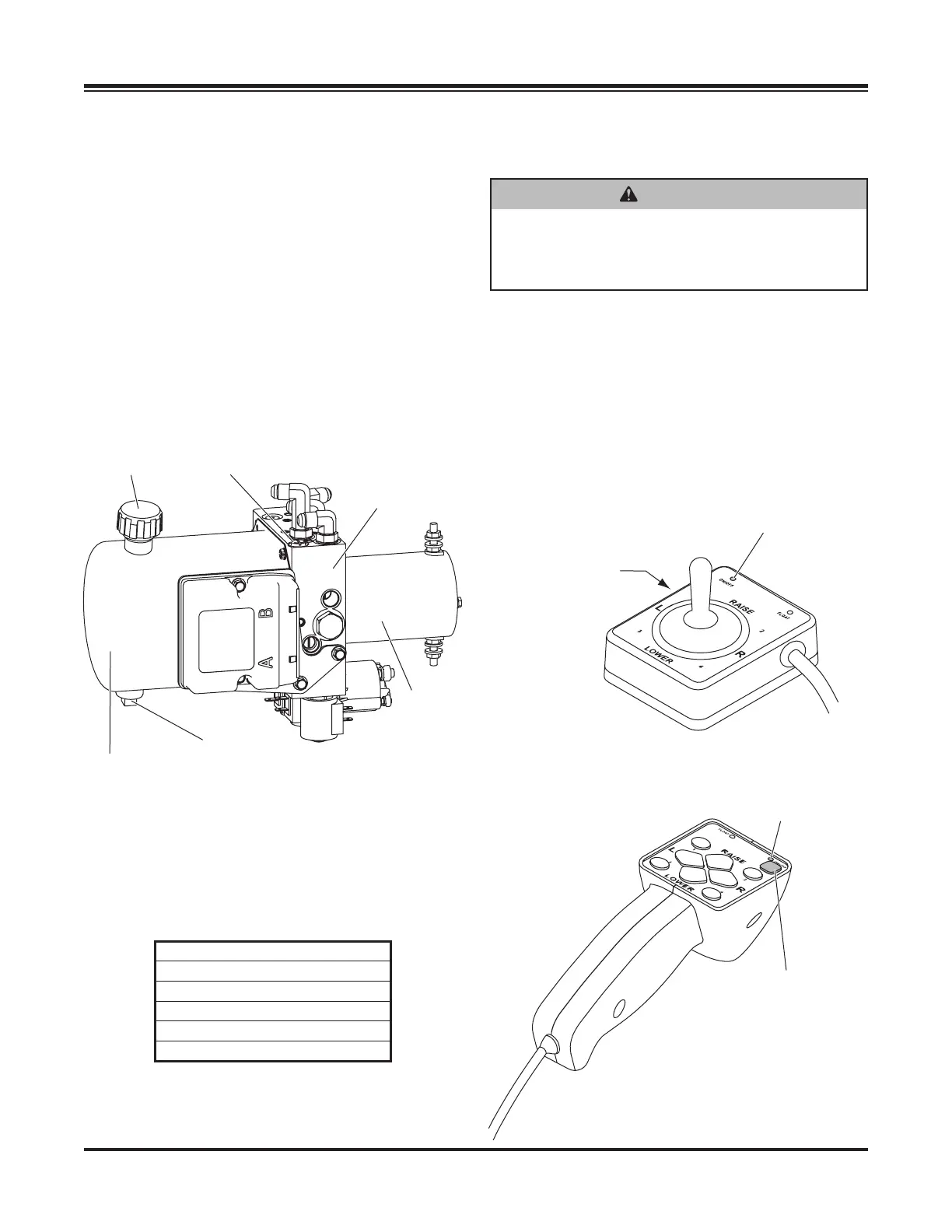

HYDRAULIC UNIT
The hydraulic system gives you full control of the
snowplow from the driver's seat. Two single-acting
hydraulic rams hold the blade at the desired angle.
The hydraulic unit's manifold has built-in blade scrape
lock circuitry. This feature resists the tendency of a
snowplow to "oat up" when large amounts of snow
build up in front of the blade while plowing deep snow
or stacking snow into piles.
The scrape lock feature is factory set. See your sales
outlet for adjustment.
System Capacity
• Unit Reservoir ............................... 1-3/4 quarts
• System Total ................................ 2-1/8 quarts
12V DC with +/– Connection
1750 psi Pump Relief Valve
4000 psi Angle Relief
3.0" dia 2.8 kW Motor (1.39 hp)
0.000476 gal/rev Pump
Hydraulic Hose SAE 100R1
GETTING TO KNOW YOUR SNOWPLOW
CAB CONTROLS
The controls are electrically powered through the
ignition (key) switch of your vehicle and are protected
by a replaceable in-line fuse. The ON/OFF switch
allows you to turn OFF the control and prevent blade
movement even when the ignition is ON.
The ON/OFF switch serves as an emergency stop
when required.
Quill
Breather/
Fill Plug
Motor
Reservoir
Drain
Plug
Valve
Manifold
WARNING
To prevent accidental movement of the blade,
always turn the control OFF whenever the
snowplow is not in use. The power indicator
light will turn OFF.
Power Indicato
r
Light (red)
Power Indicator
Light (red)
ON/OFF Button
(emergency stop)
ON/OFF Switch
(emergency stop)
Hand-Held Control
Joystick Control
