DC Inverter U-match Series Cassette Type Unit
29
Unit:mm

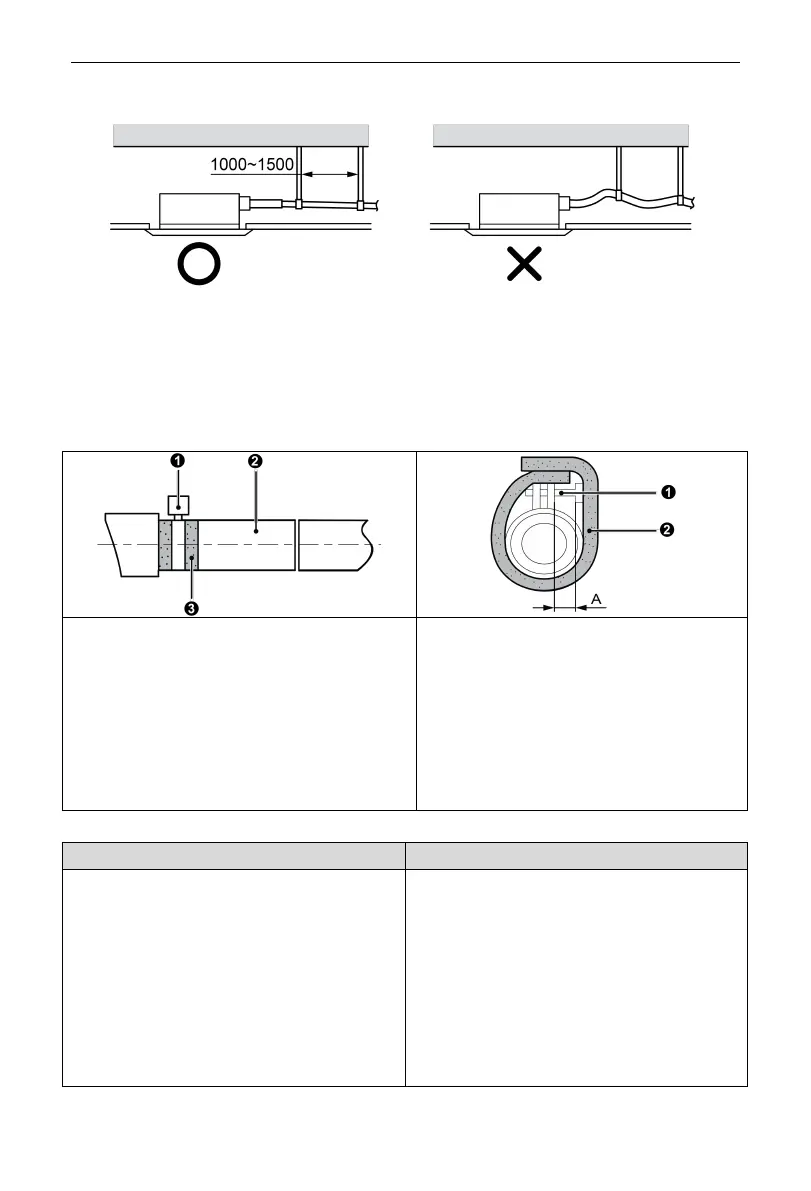

(6) Use the drain hose that is delivered together with the unit.
(7) Insert the drain hose into the drain faucet.
(8) For the purpose of thermal insulation, wind a large piece of sponge around
the clamp of drain hose.
(9) Apply thermal insulation for the indoor drain hose.
Insulate the pipe clamp and the drain
hose using heat insulation sponge.
① Metal clamp
② Drain hose
③ Grey tape
During the installation, distance from
soft drain pipe to the gasket is A mm
when the bolt is tightened. It is not
allowed to apply PVC or other related
glue in the joints of two ends of drain
pipe.
① Metal clamp
≤15
2
2
3
3
2
