DC Inverter U-match Series Cassette Type Unit
41
Buckle magnetic ring shall be added in the power line communication cord of
outdoor and indoor unit. The added buckle magnetic ring shall be fixed at the outlet
of power line communication cord near the outdoor unit side; detailed operation step
for the magnetic buckle is as follow:

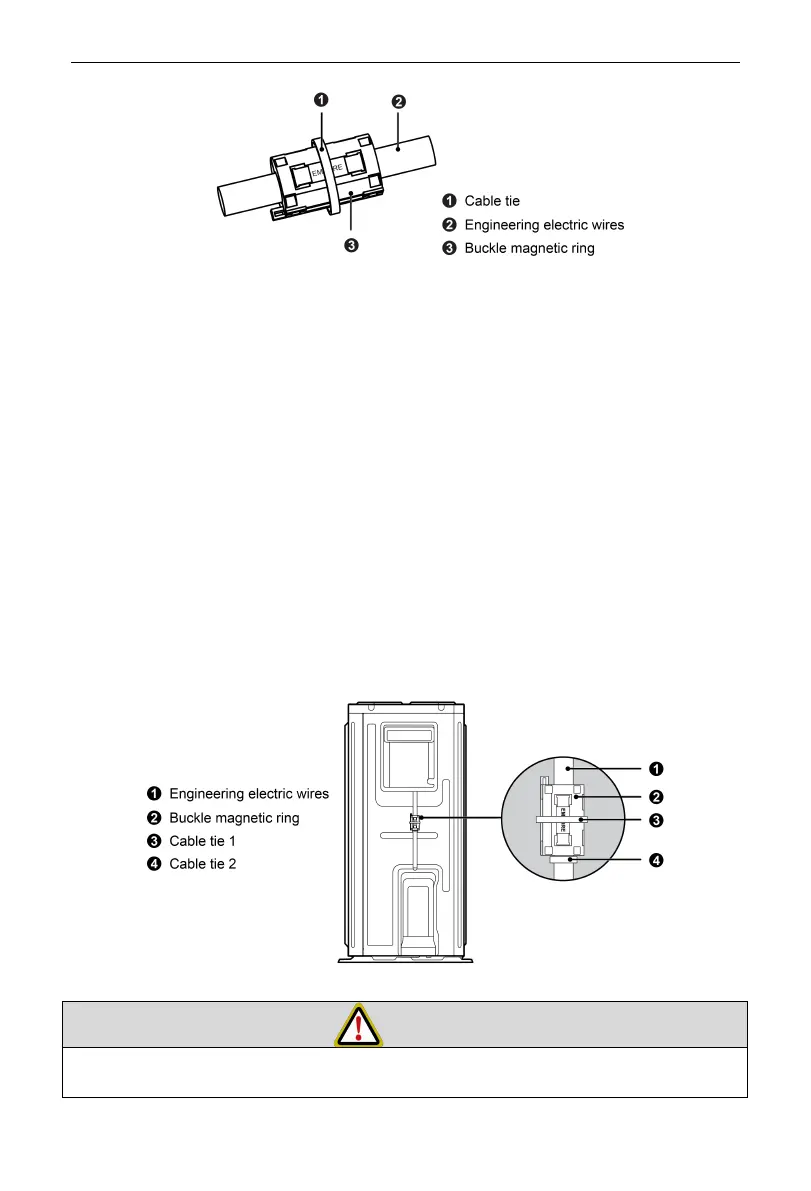

1) Limit the fixation location of buckle magnetic ring at the outlet of power
line communication cord near the outdoor unit side with a cable tie (refer
to the mark 4 in the following picture) to prevent the buckle magnetic ring
from sliding along the power line communication cord;
2) Then clasp the buckle magnetic ring to the location of power line
communication cord confirmed with cable tie, after that, re-fix it with a
cable tie (refer to the mark 3 in the following picture)
(Note
：
Only for 48K, 60K units.)
WARNING!
(1) Before working, please check whether the indoor and
outdoor units are
powered on.
