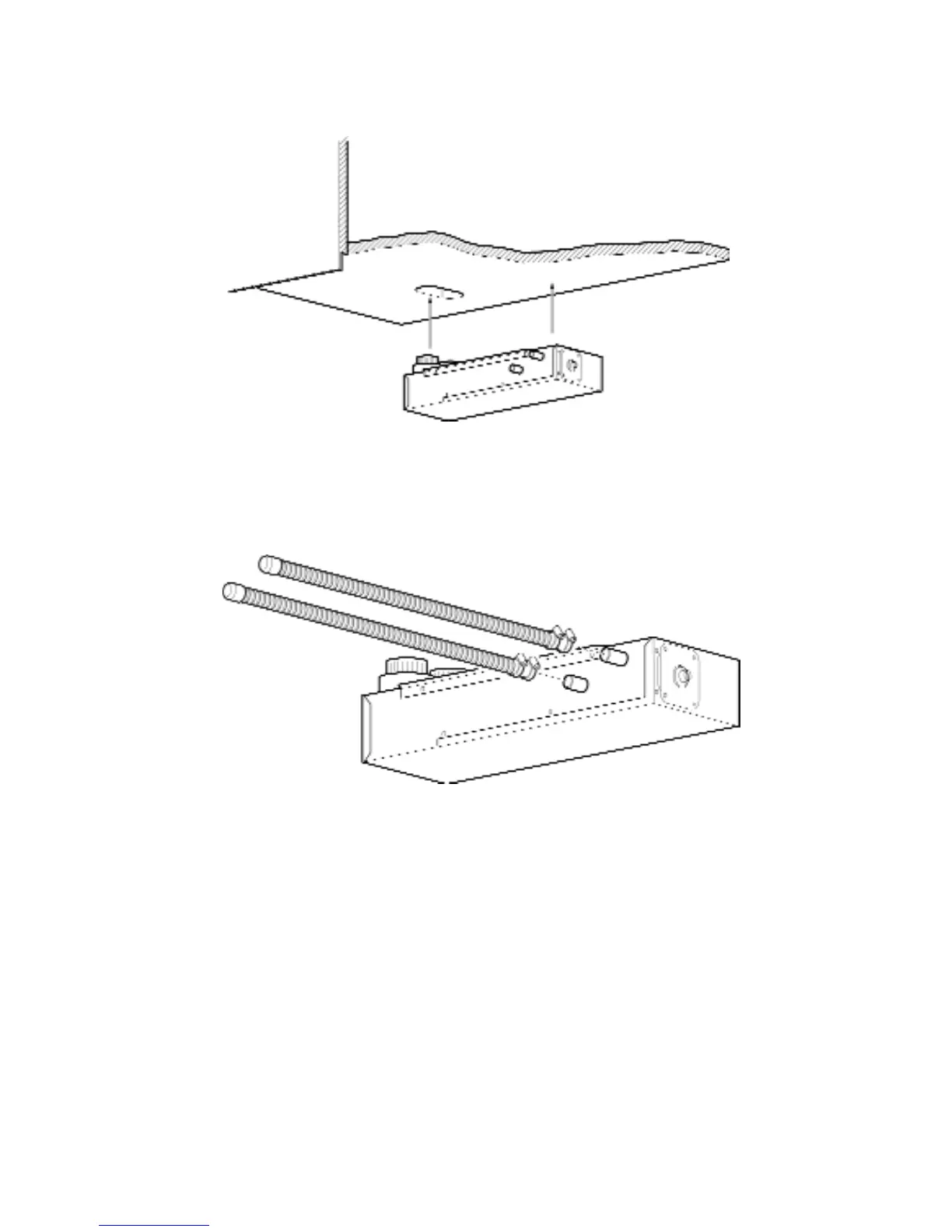

Fig. 15
Step 5 Securing the flues
Fig. 16
Push on the ends of the flues with the blue adaptor to the pipes on the underside of the Space Heater ensuring they
are fully pushed on, and secure with supplied hose clips.
Step 6 Mounting the flues
When mounting the combustion inlet flue and exhaust flue, they should ideally run downwards from the heater to
their open end to allow any condensation to drain out. The open ends should be angled downwards to prevent rain
from entering. Care should be taken to route exhaust flues around chassis members and avoiding gas pipes and
wires.
The flues should otherwise be kept as straight as possible.
Please note: The exhaust flue should be positioned at the side or the rear end of the vehicle. The open end of the
combustion air flue must be at least 500mm away from the open end of the exhaust flue and pointing in the same
direction.
