Step 3 Attach heater to the floor

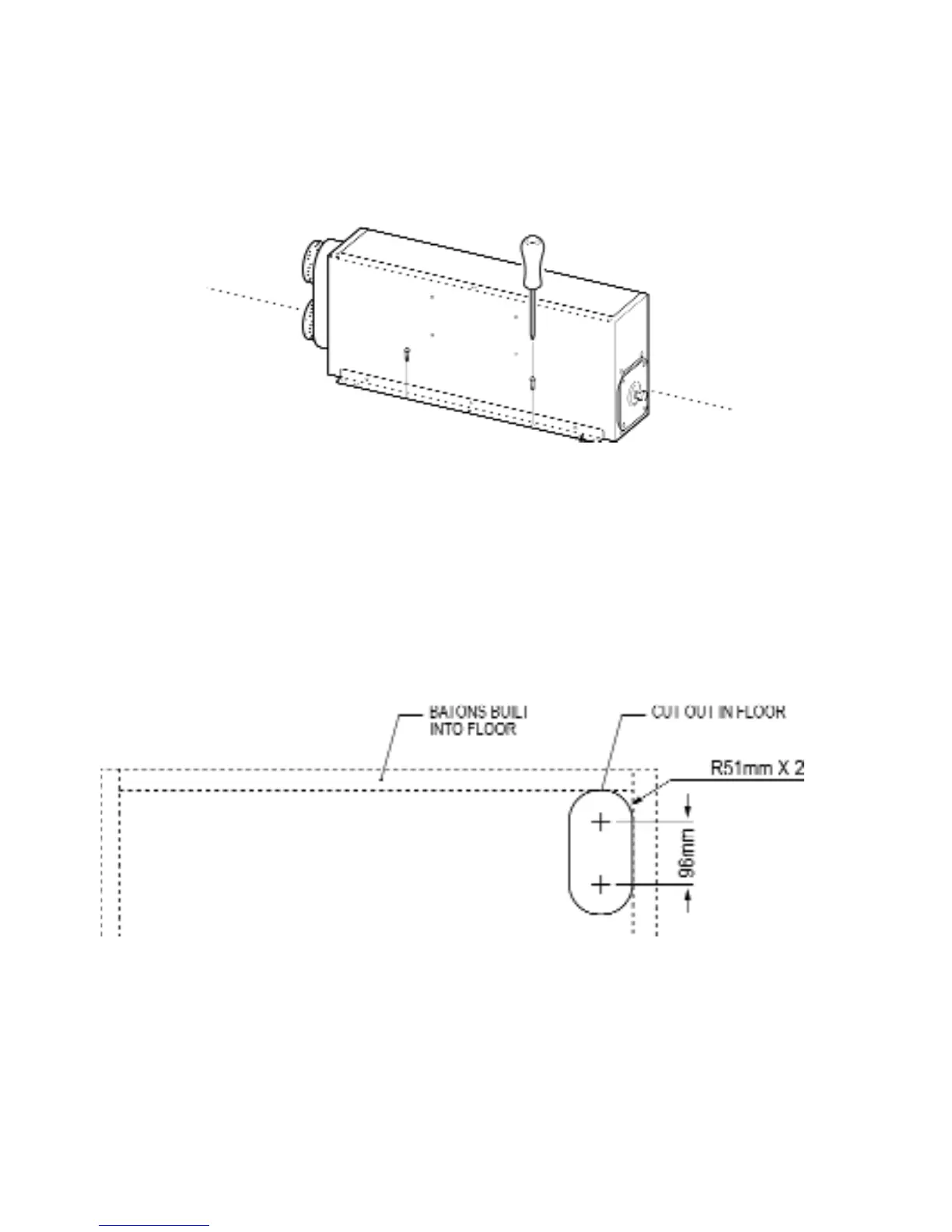

From inside the vehicle, feed the exhaust and combustion air flues through the holes drilled on the floor. Locate the
heater so that the flues are centralised in the holes, and attach heater to floor with 4 screws supplied (No. 8 x ¾”), as
per Figs. 12 & 13
Fig.13
Proceed to Step 6
Step 4 Underfloor heater location
For under-floor installation the floor of the vehicle should be manufactured as per the Fig. 14. It is important that
wooden batons are incorporated in the floors construction to allow the screws to secure into.
Fig. 14
Locate the heater in the correct position such that the screws will enter the batons, and attached with 10 screws (No.
8 x 5/8”) provided. Ensure that the mains cable is fed through the rectangular cut out and is not trapped between the
outer cover box and the floor.
11
