Assembly Instructions

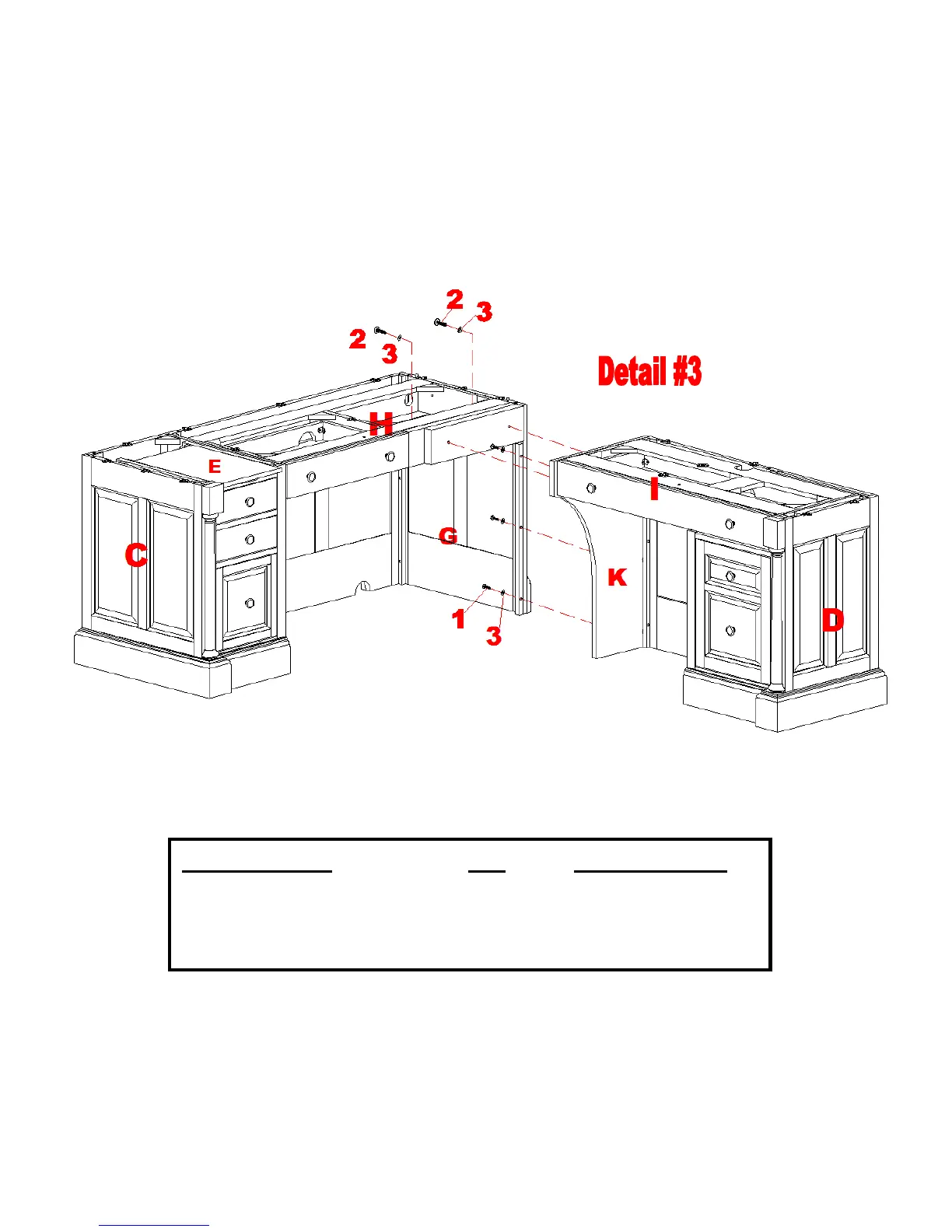

8. Attach the Desk to the Return using two 3” Bolts (2) and Flat Washers (3). Insert the Bolts with
Flat Washers from inside the Desk Drawer Box (H) through the Curved Middle Panel (K). As
shown in detail #3.
9. Finish attach you need to insert three 1 1/4" Bolts and Flat Washers (1 & 3) through the cleat
hole of the Desk Side Panel (G) into the threaded inserts on Curved Middle Panel (K). As
shown in detail #3.
Parts Provided Qty Tools Required
(1) –1 1/4” Bolt (3) Phillips Screwdriver
(2) –3” Bolt (2)
(3) –Flat Washer (5)
