Assembly Instructions

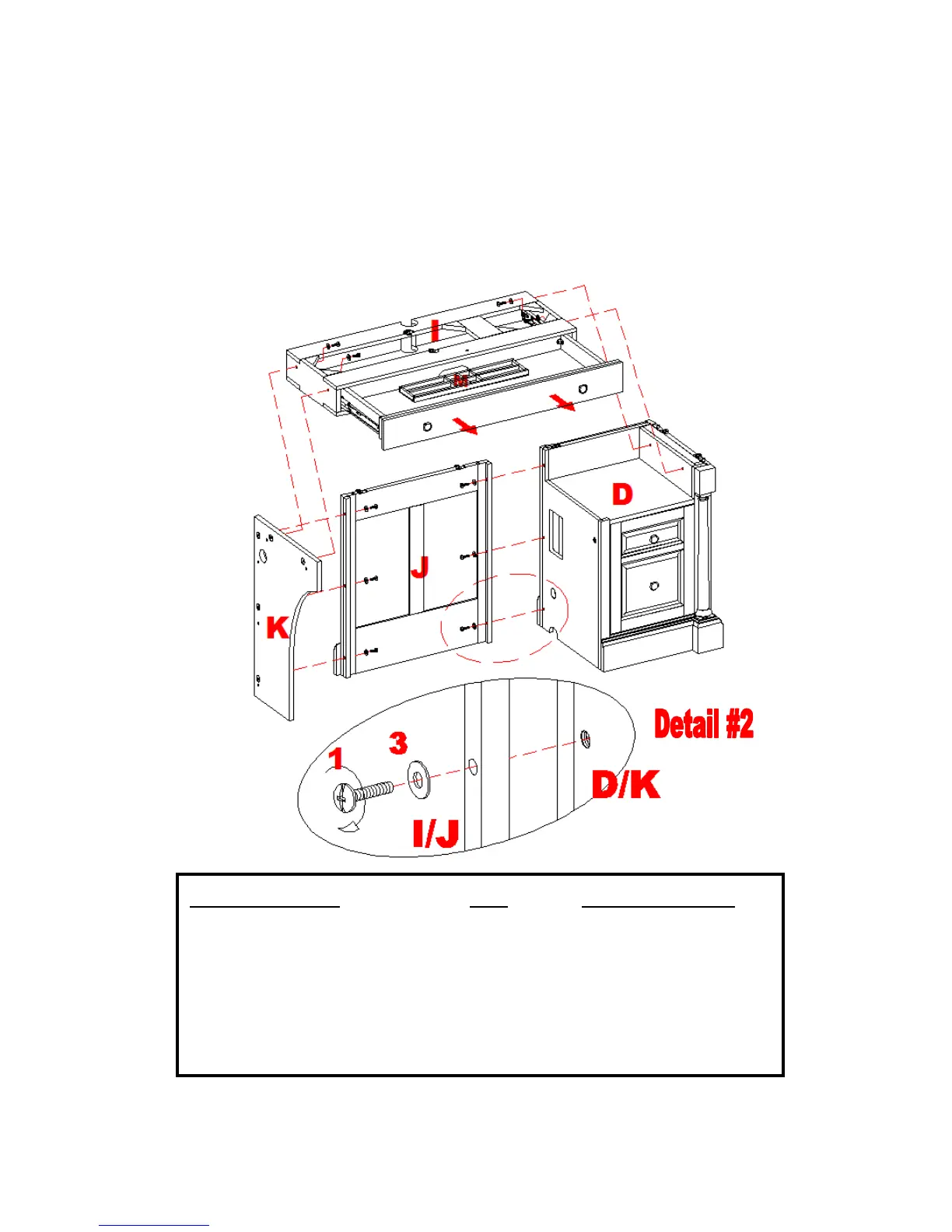

6. Bolt the Computer Pedestal (D) and Return Back Panel (J) with three 1 1/4" Bolts and Flat
Washers (1 & 3). Proceed to attach the Curved Middle Panel (K) onto the Return Back Panel
(J) using the 1 1/4" Bolts with Washers (1 & 3) through the cleat holes of the Return Back
Panel. See detail #2.
7. Pick up Return Keyboard Box (I) and remove pullout. Attach the Return Keyboard Box
between the Computer Pedestal (D) and the Curved Middle Panel (K) in place using the 1 1/4"
Bolts and Flat Washers (1 & 3) from inner side. See detail #2.
Parts Provided Qty Tools Required
D –Computer Pedestal (1) Phillips Screwdriver
I – Return Keyboard Box (1)
J –Return Back Panel (1)
K –Curved Middle Panel (1)
(1) –1 1/4” Bolt (10)
(3) –Flat Washer (10)
To Next Page
