Model # PRO-9
Please call for replacement parts or assistance: 1-866-942-5362
Whalen Furniture Mfg. Inc. Page 5 Factory No. 33- 10944
Assembly Instructions
Note: Please do not fully tighten all bolts until you finish assembling all parts. Once
assembled, go back and fully tighten all bolts. This will make it easier during assembly of unit.

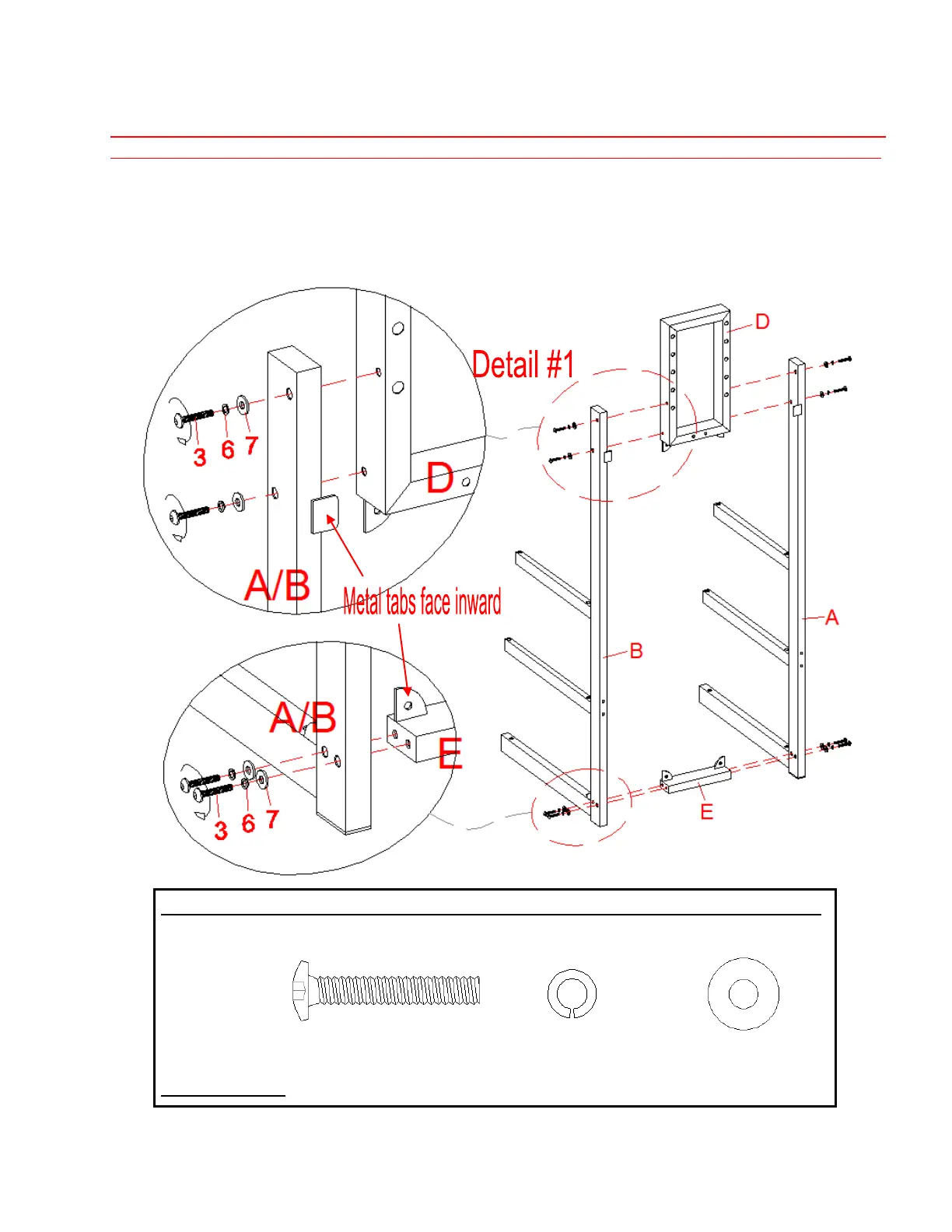

1. Attach Back Top Frame (D) and Back Bottom Stretcher (E) between Left and Right Side
Frame (A & B) by inserting the 1-1/2” Bolts (3) with Lock Washers and Flat Washers (6 & 7)
through the pre-drilled holes of side frame into place. Make sure the metal brackets on Back
Bottom Stretcher (E) facing up and pointing forward. Tighten the bolts with enclosed M4
Allen Wrench. See detail #1.
Required hardware in this step
Description (3) 1-1/2” Bolt (6) Lock Washer (7) Flat Washer
Sketch
Qty. (8 pcs) (8 pcs) (8 pcs)
Tools required: M4 Allen Wrench
To Next Page
