Assembly Instructions

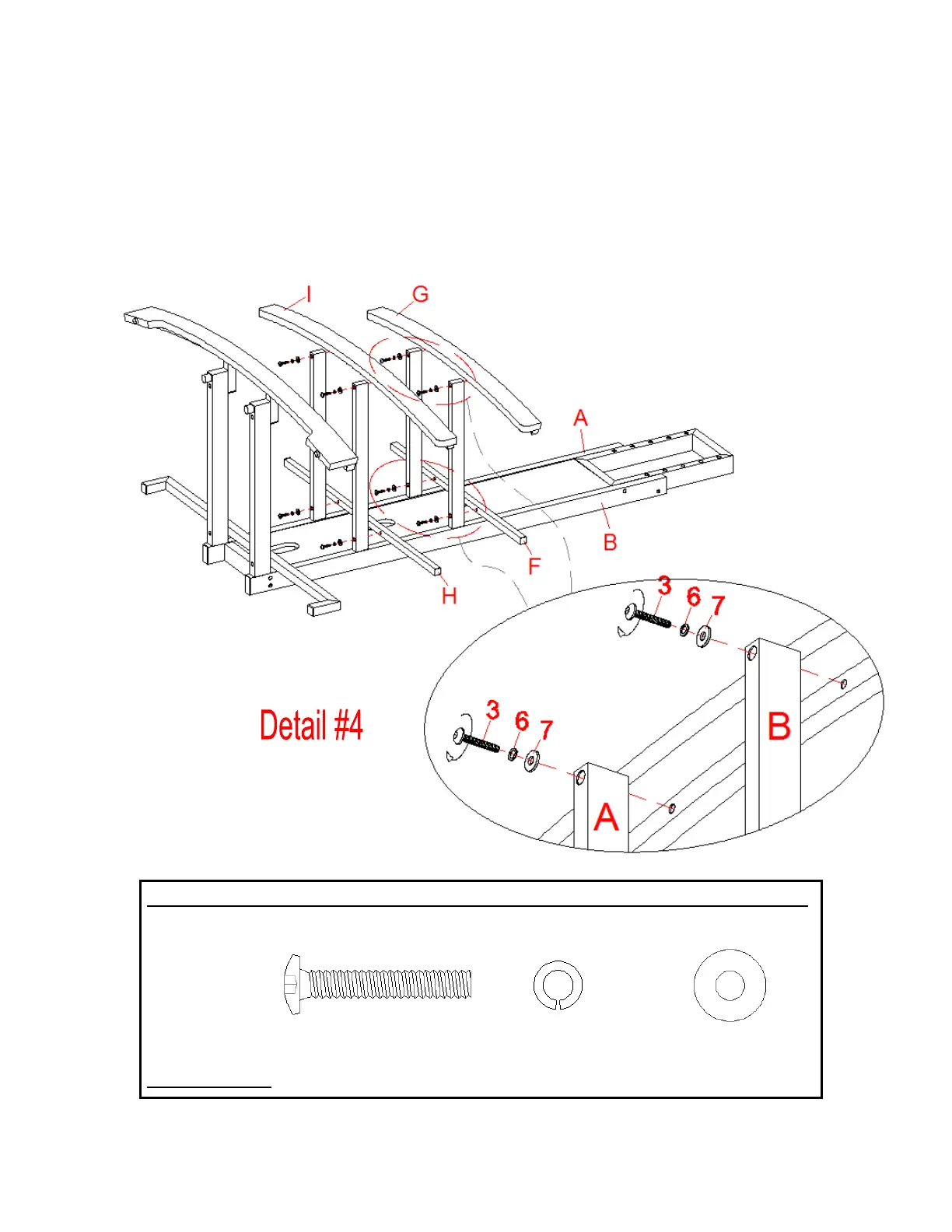

6. Attach Middle Crossbar (H) and Middle Stringer (I) to the middle rail of Left & Right Side
Frame (A & B) using 1-1/2” Bolts (3) with Washers (6 & 7) through the pre-drilled holes on
middle rails into place. Tighten the bolts with enclosed M4 Allen Wrench. See detail #4.
7. Repeat last step to attach Top Crossbar (F) and Top Stringer (G) to the top rail of Left &
Right Side Frame (A & B).
Required hardware in this step
Description (3) 1-1/2” Bolt (6) Lock Washer (7) Flat Washer
Sketch
Qty. (8 pcs) (8 pcs) (8 pcs)
Tools required: M4 Allen Wrench
To Next Page
