Assembly Instructions

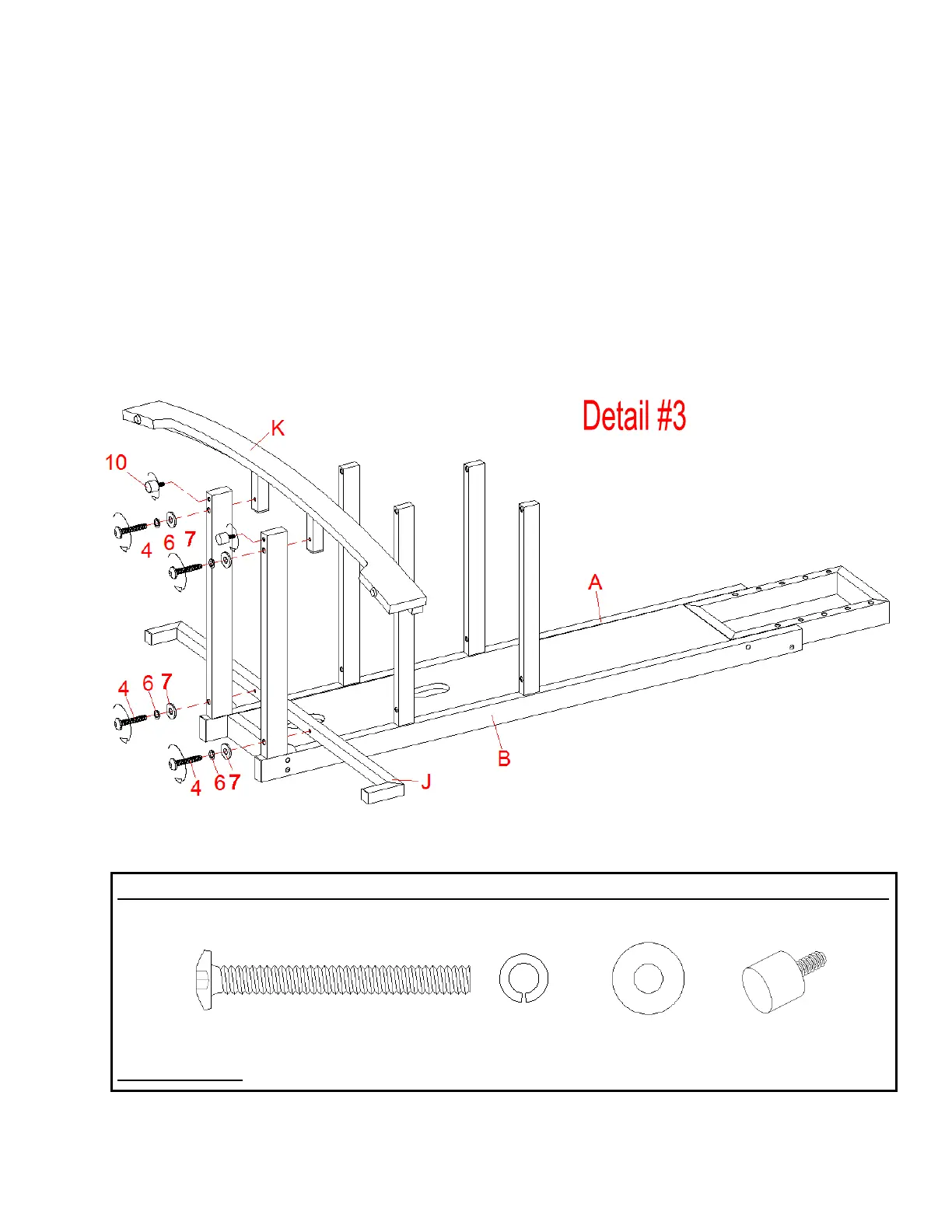

3. Lay down the unit on a level and protective surface as shown in detail #3.
4. Attach Bottom Brace (J) and Bottom Stringer (K) to the bottom rail of Left & Right Side
Frame (A & B) with four 2-1/4” Bolts (4) and Washers (6 & 7) as shown in detail #3.
5. Screw the Large Floor Levelers (10) into the front sockets underneath the bottom rail
of Left and Right Side Frame (A & B). Set the Levelers to the correct height.
Required hardware in this step
Description (4) 2-1/4” Bolt (6) Lock Washer (7) Flat Washer (10) Large Floor Leveler
Sketch
Qty. (4 pcs) (4 pcs) (4 pcs) (2 pcs)
Tools required: M4 Allen Wrench
