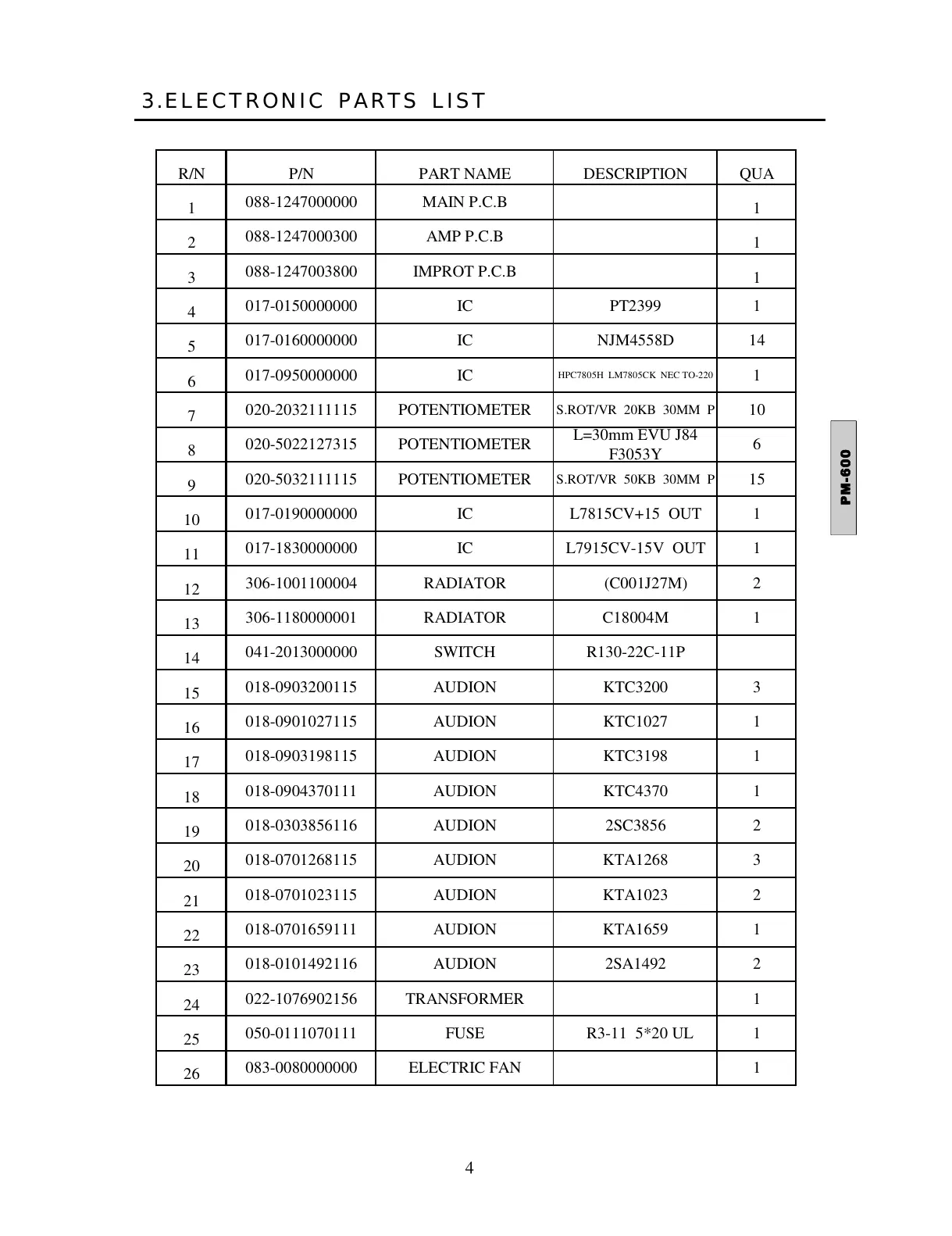

3.ELECTRONICPARTSLIST
4
R/N P/N PART NAME DESCRIPTION QUA
1
088-1247000000 MAIN P.C.B
1
2
088-1247000300 AMP P.C.B
1
3
088-1247003800 IMPROT P.C.B
1
4
017-0150000000 IC PT2399 1
5
017-0160000000 IC NJM4558D 14
6
017-0950000000 IC
HPC7805H LM7805CK NEC TO-220
1
7
020-2032111115 POTENTIOMETER
S.ROT/VR 20KB 30MM P
10
8
020-5022127315 POTENTIOMETER
L=30mm EVU J84
F3053Y
6
9
020-5032111115 POTENTIOMETER
S.ROT/VR 50KB 30MM P
15
10
017-0190000000 IC L7815CV+15 OUT 1
11
017-1830000000 IC L7915CV-15V OUT 1
12
306-1001100004 RADIATOR (C001J27M) 2
13
306-1180000001 RADIATOR C18004M 1
14
041-2013000000 SWITCH R130-22C-11P
15
018-0903200115 AUDION KTC3200 3
16
018-0901027115 AUDION KTC1027 1
17
018-0903198115 AUDION KTC3198 1
18
018-0904370111 AUDION KTC4370 1
19
018-0303856116 AUDION 2SC3856 2
20
018-0701268115 AUDION KTA1268 3
21
018-0701023115 AUDION KTA1023 2
22
018-0701659111 AUDION KTA1659 1
23
018-0101492116 AUDION 2SA1492 2
24
022-1076902156 TRANSFORMER 1
25
050-0111070111 FUSE R3-11 5*20 UL 1
26
083-0080000000 ELECTRIC FAN 1
