V SERIES FULL RANGE AND SUBWOOFER CONNECTION
PANEL
The V-10, V-12, V-12M,V-15 and V-153 feature two 1/4” phone jack socket connectors and are
paralleled. This means that these cabinets can be linked together with other cabinets of the same
impedance and design or with a subwoofer speaker. (See drawing)

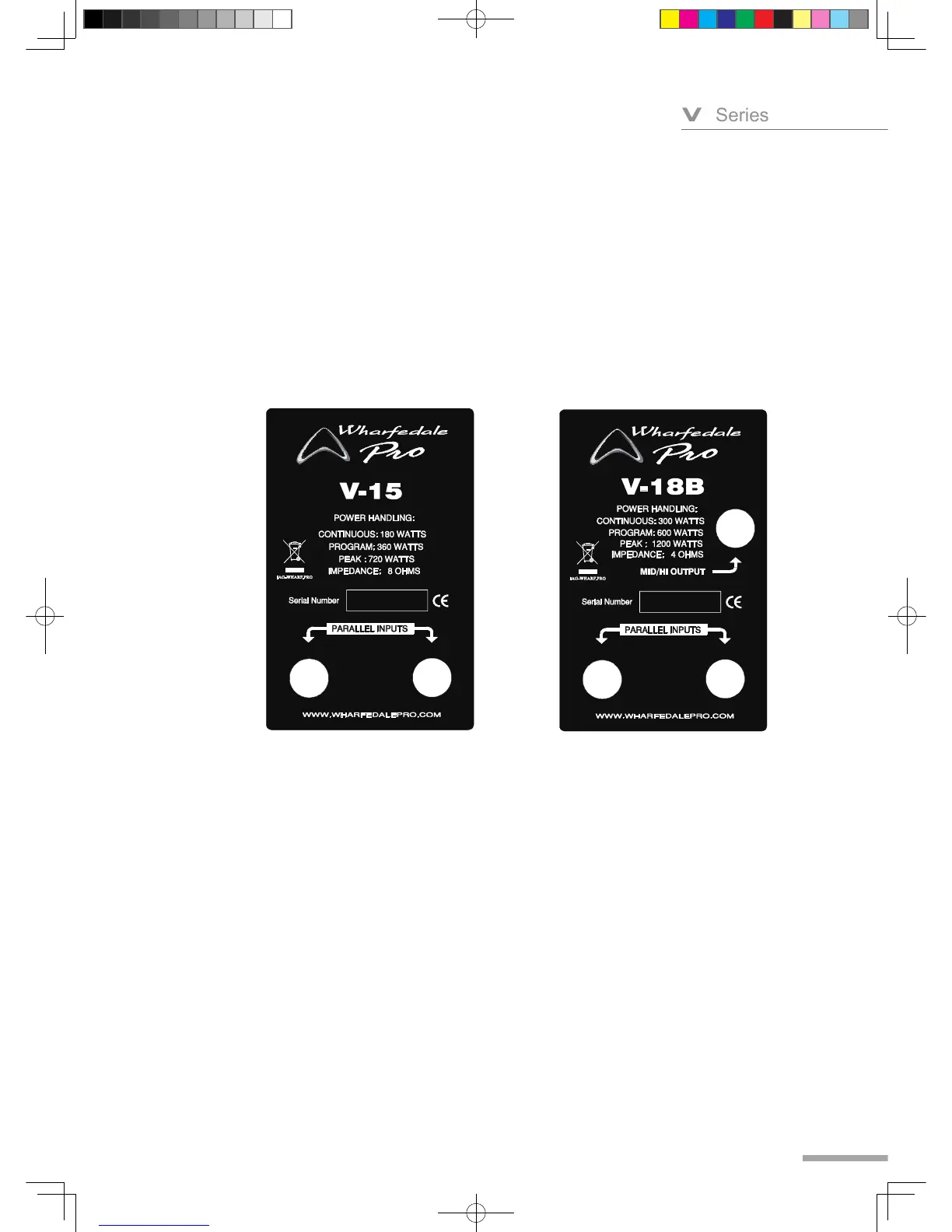

Rear panel for
V-10/12/12M/15/153
Rear panel for
V-15B/18B
The V-15B, V-18B have three 1/4” phone jack.Two 1/4” phone jack are paralleled at the rear of
each cabinet. The other 1/4” phone jack allows connection to MID/HI output .
In the (standard) passive mode, the power amplier can be connected to the V-15B or 18B system
through the system’s internal low pass filters. The V Full Range Speaker is connected from the
input/output connector panel and receives a full range signal via the sub cabinet. (See drawing)
