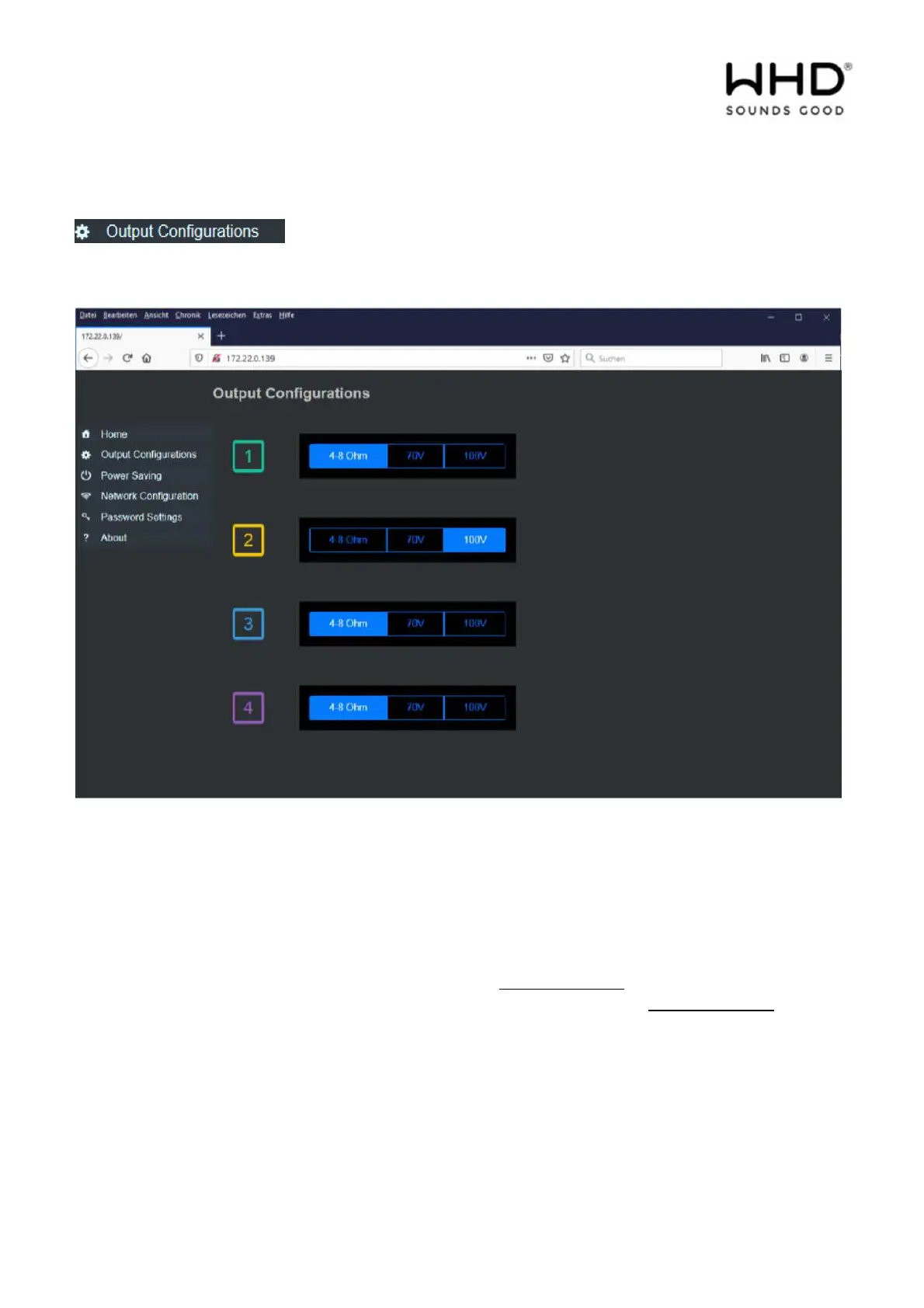

10.2.2. Output Configuration
Here the output impedance can be selected separately for each channel.
Note:
NEVER mix the two technologies in one zone!
Pay attention to the correct polarity when connecting the speakers!
When connecting the speakers, make sure that the dimensions are correct.
With 100V technology, the total power of the speakers must not exceed 200 W per zone!
With low-resistance connections, the total impedance of the loudspeakers must not be less than 4 ohms!
