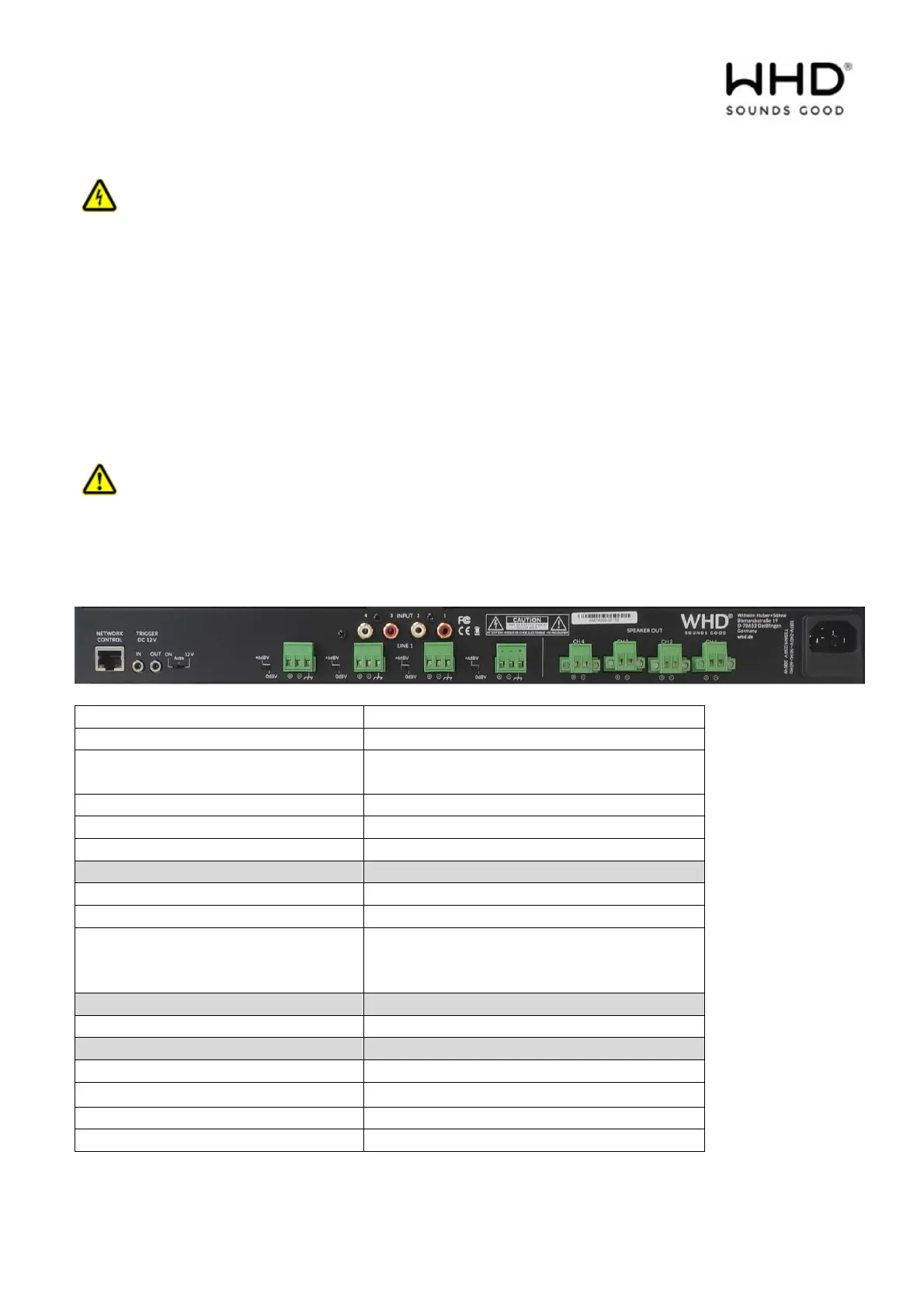

Manual AMP 4200
Valid for 111-425-04-001-00
Version (modifications reseverd)
21.02.2022
Seite 2 of 17
Warning
The 230V line must be connected only by a professional electrician.
The Electrical supply must be disconnected before working on the device.
Improper handling may void warranty.
4. Product Scope
Matrix Amplifier for 4 speaker zones (4-8 ohms/70V/100V).
5. Intended use
Indoors
6. Improper use
The device is not suitable for outdoor operation. The ambient temperature should not exceed 30 ° C.
7.
Specifications
AMP 4200
Power Supply
100
-
2
4
0 V AC, 50
/60
Hz
Output Power
4 x 200
Watt
rms
Protection Thermal, over-current, over-voltage, short
circuit protection
Dimensions
(H/
W
/
D
)
44 x 430 x 320 mm
Weight
5
.
5 kg
Operating Temperature
5 … 30 °C
Input
:
Sensitivity
*)
0
/
+6
dBV (variab
le
)
Impedan
ce
22 kOhm
Type 4 x Phoenix, 3Pin
Bzw. 4 x RCA
Trigger: 12VdC (3,5mm mono jack)
Output
:
Speaker
4 x Phoenix, 2Pin
Audio Performance:
Type
Class D
Frequency Response
20

20kHz ± 1dB
THD+N
> 1% @ 1 kHz, Rated Power
S/N Ratio
≥ 90 dB (A
-
weighted)
