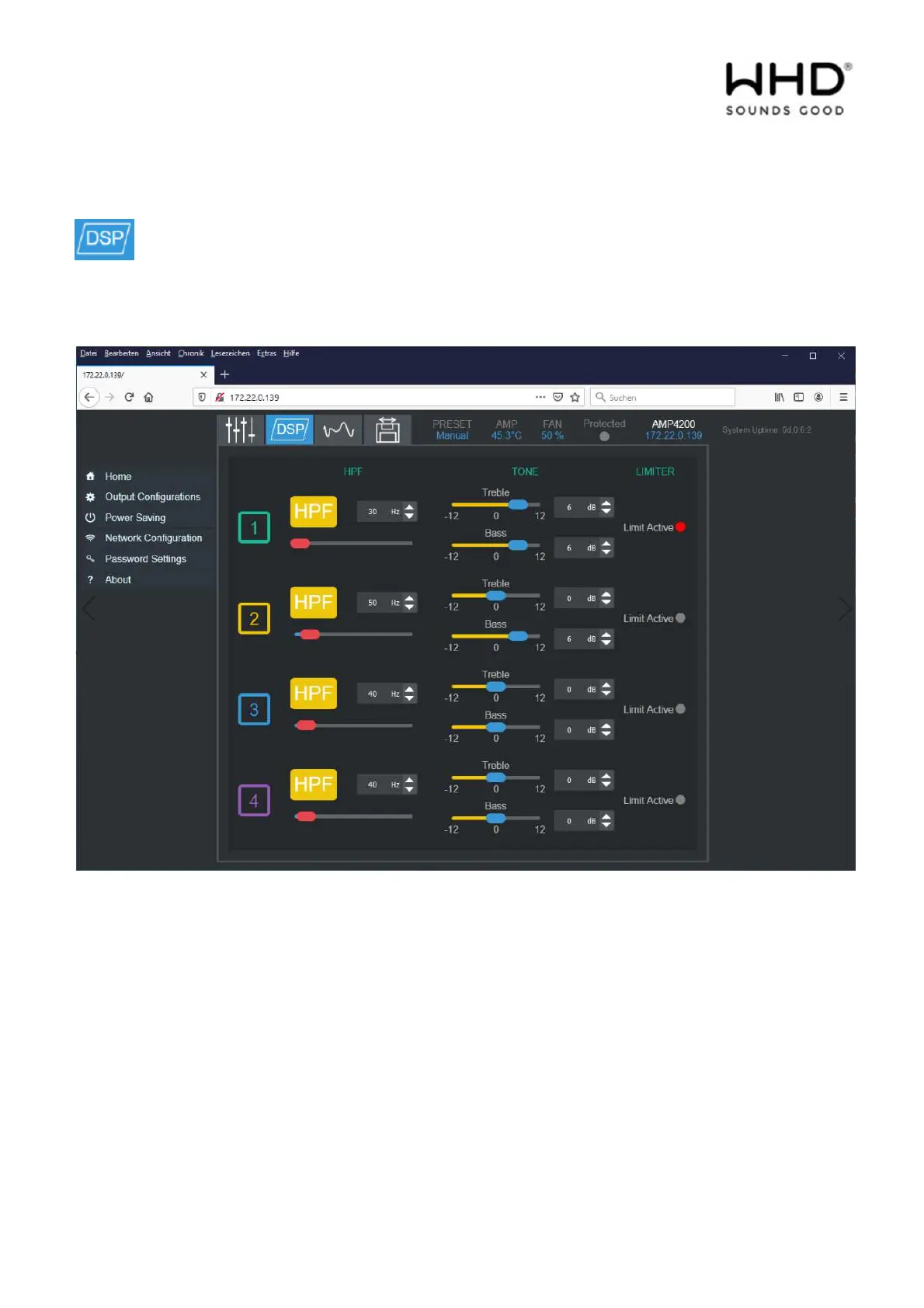

DSP
Configuration
:
A high-pass filter and a simple bass / tweeter control can be carried out for each output.
HPF: High-Pass-filter:
Frequencies above the specified value are let through, lower frequencies are filtered out.
Tone:
Sound settings for treble and bass.
Limiter, setting and activation:
Power setting of the amplifier output.
0 dB: maximum power / -3 dB: half power
