Manual applicable for
UP Series
Product-No.:
106-010-03-001-00 (UP 10, -T6)
106-010-03-001-12 (UP 10, -T6 Marine)
106-014-03-008-01 (UP 14, -8)
106-014-03-006-00 (UP 14, -T6)
106-014-03-200-05 (UP 14/2, -8)
106-014-03-206-01 (UP 14/2, -T6)
106-014-03-206-00 (UP 14/2, -T25)
106-022-03-000-00 (UP 22, -4)
106-022-03-006-00 (UP 22, -T6)
106-026-03-008-00 (UP 26, -8)
106-026-03-025-00 (UP 26, -T25)
Version
(Technical and optical
modifications reserved)
15.09.2020
Safety & Security
Informations
Improper handling may void war-
ranty.
In addition to this guidance please
comply with your own country-
specific safety & security regulations.
Intended Use:
Indoors, ceiling or wall mounting
Operating temperature:
-20 ... + 60 °C.
The device is not suitable for out-
door operation.
Note:
- Make sure that the resulting impe-
dance and the power of the connec-
ted speakers are properly sized to
the output of the amplifier safe.
- Ensure correct polarity.
- Before the removal of the speaker,
switch OFF the amplifier.

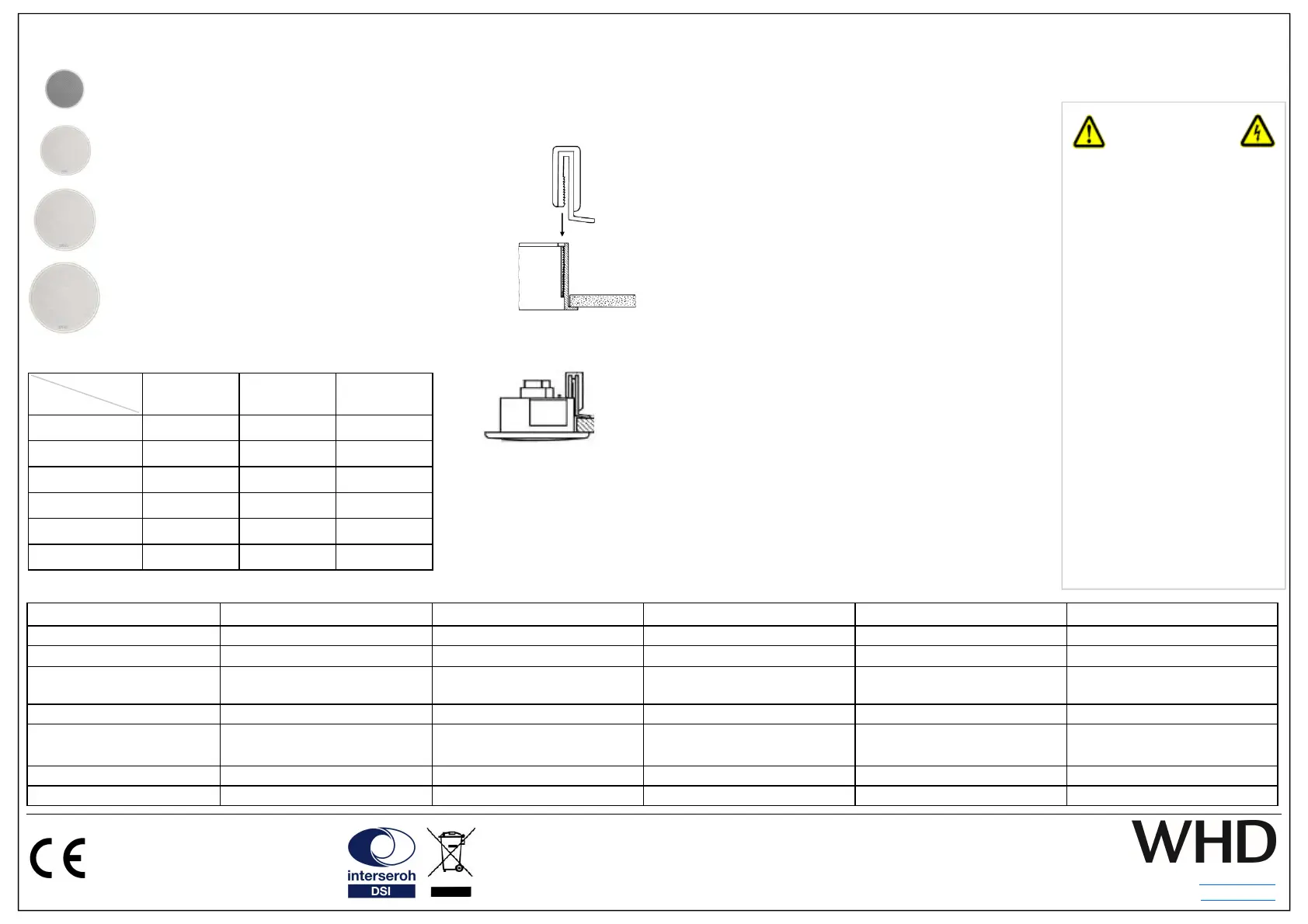

Mounting the speaker
Saw out the ceiling cut-out (diameter according to the table
below).
Fix the connection cable of the speaker to the appropriate
strain relief at the mounting ring.
Fix the mounting ring with all the supplied clamps in the cut
and tighten it.
With UP 14/2 and UP 26:
Attach the safety rope to the eyelet on the mounting ring.
Screw the speaker in the mounting ring. There must be a
clicking sound.
Note:
If the speaker is not rotating properly, it can be solved by
vibration from the bayonet and drop from the ceiling.
Operation
Thank you for purchasing our plastic in-ceiling speaker.
Please read this manual carefully, especially the safety and security information.
Connection
Version
Color
4/8 Ω -T6 -T25
brown - 6 W 25 W
yellow - 3 W 12,5 W
green - 1,5 W 6,25 W
blue - 0 0
red 4/8 ohms - -
white/red 0 - -
Connecting the speaker
Connect the loudspeakers with the two wires to the designated terminals with the required power (see
table opposite).
Specifications UP 10 UP 14 UP 22 UP 14/2 UP 26
Rated / Music ower 6 / 8 W 6 / 8 W 8 / 10 W 40 / 50 W 40 / 50 W
Impedance (without trsfmr) - 8 ohms 4 ohms 8 ohms 8 ohms
SPL 1W/1m
Rated Power
87 dB
95 dB
90 dB
98 dB
91 dB
100 dB
89 dB
105 dB
89 dB
105 dB
Frequency Range (-3 dB) 180-21000 Hz 100-20000 Hz 50-18000 Hz 100-20000 Hz 50-18000 Hz
Transmission Angle 1/4/8 kHz
(-6 dB)
180/130/80 ° 180/90/40 ° 180/80/40 ° 180/50/30 ° 180/70/70 °
Mounting Diameter (up...to) ø 120 mm (120 … 130 mm) ø 180 mm (180 … 188 mm) ø 230 mm (229 … 243 mm) ø 180 mm (180 … 188 mm) ø 230 mm (229 … 243 mm)
Mounting Depth : Ω/T6/T25 -/72/- mm 54/55/- mm 72/72/- mm 71/110/71 mm 85/-/85 mm
