Whipple LT1 - Supercharger and Accessory Installation

Installation Manual: GM LT1_A1R13E
Last Updated: February 12th, 2019
Page 13 of 36
www.whipplesuperchargers.com

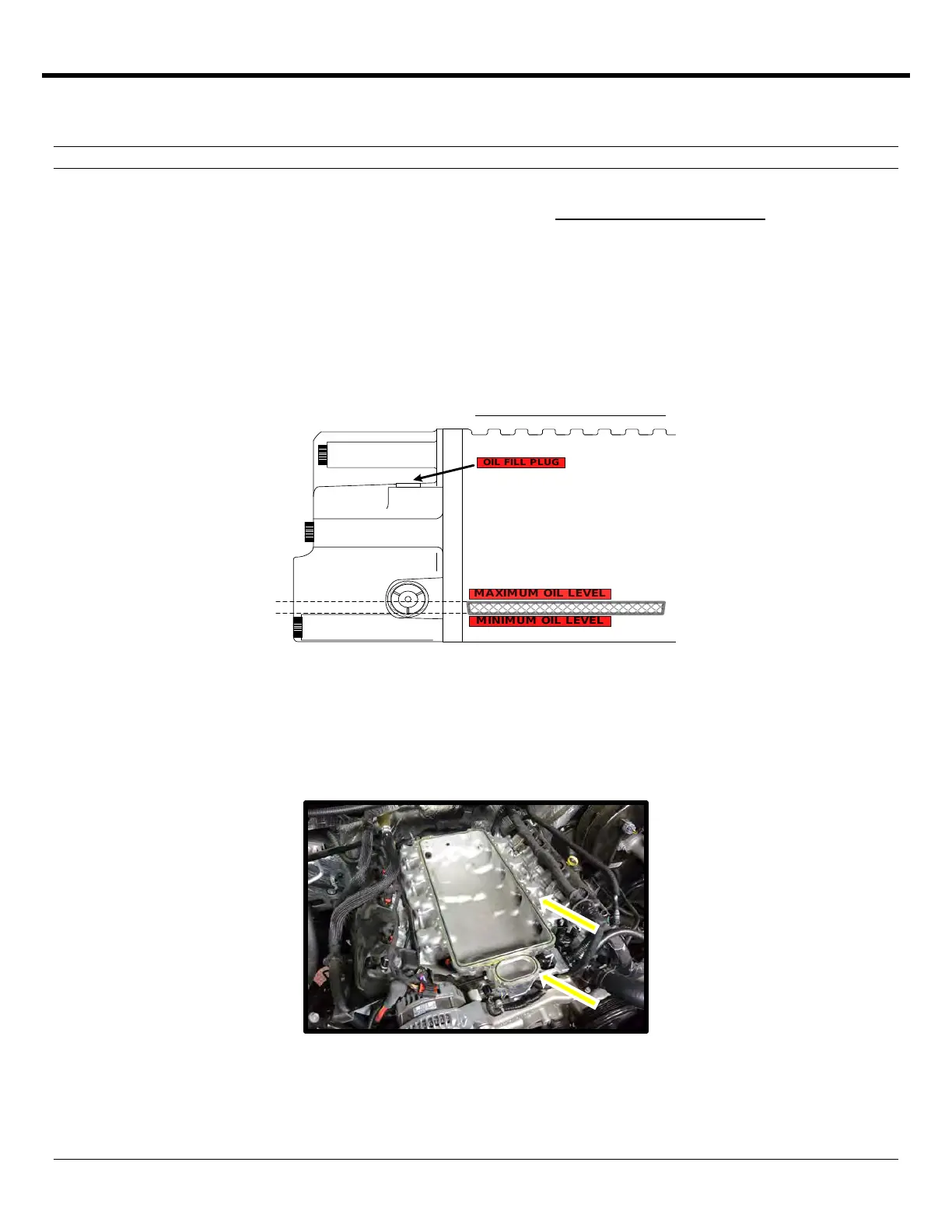

35. The supercharger must be filled with oil prior to use. This supercharger is shipped without oil inside. The oil is in a
separate bottle supplied with your kit and is prefilled to the exact oil amount.
CAUTION! Severe damage to the compressor will occur if you overfill the supercharger rear gear case.
 Make sure the SC is sitting on a flat surface.
 Remove -6AN allen plug (1/4” allen wrench) and fill SC with WHIPPLE SC OIL ONLY!!
 Fill to the middle of the sight glass. Tip from side to side then with the SC flat again, check oil level again,
add if necessary. Whipple kits are supplied with pre-measured oil bottles, therefore, on all new installs
NOTE: The W175FF compressor takes a maximum of 8 fl/oz and a minimum of 7.5 fl/oz. Failure to fill
properly will result in catastrophic damage.
 Reinstall -6AN allen plug.
 NOTE: After running the SC, the oil level will lower due to oil filling the bearings. The proper level while not
running should be between the bottom of the sight glass and the middle and will vary when running and not
running.
 Change SC oil every 100,000 miles and only use WHIPPLE SC OIL ONLY!!
OIL FILL PLUG
MAXIMUM OIL LEVEL
MINIMUM OIL LEVEL
OIL LEVEL OPERATING RANGE
36. Preinstall the intercooler in and out fittings/hoses. Install the supplied 5/8” ID hose with the 90deg molded rubber
hose (88” long) on the driver’s side fitting. Install the 5/8” ID molded hose to ¾” ID with the straight end (24”
long) on passenger side. Secure both 10AN push lock fittings to IC fittings. Both should face towards the passenger
side of vehicle.
37. Install the supplied orings to the intake manifold top surface and the bypass area. Use light amount of grease to
secure oring in place during installation.
38. Apply generous amount of grease to the orings installed on intake manifold for easy SC installation.
