Installation Manual: GM LT1_A1R13E
Last Updated: February 12th, 2019
Page 14 of 36
www.whipplesuperchargers.com

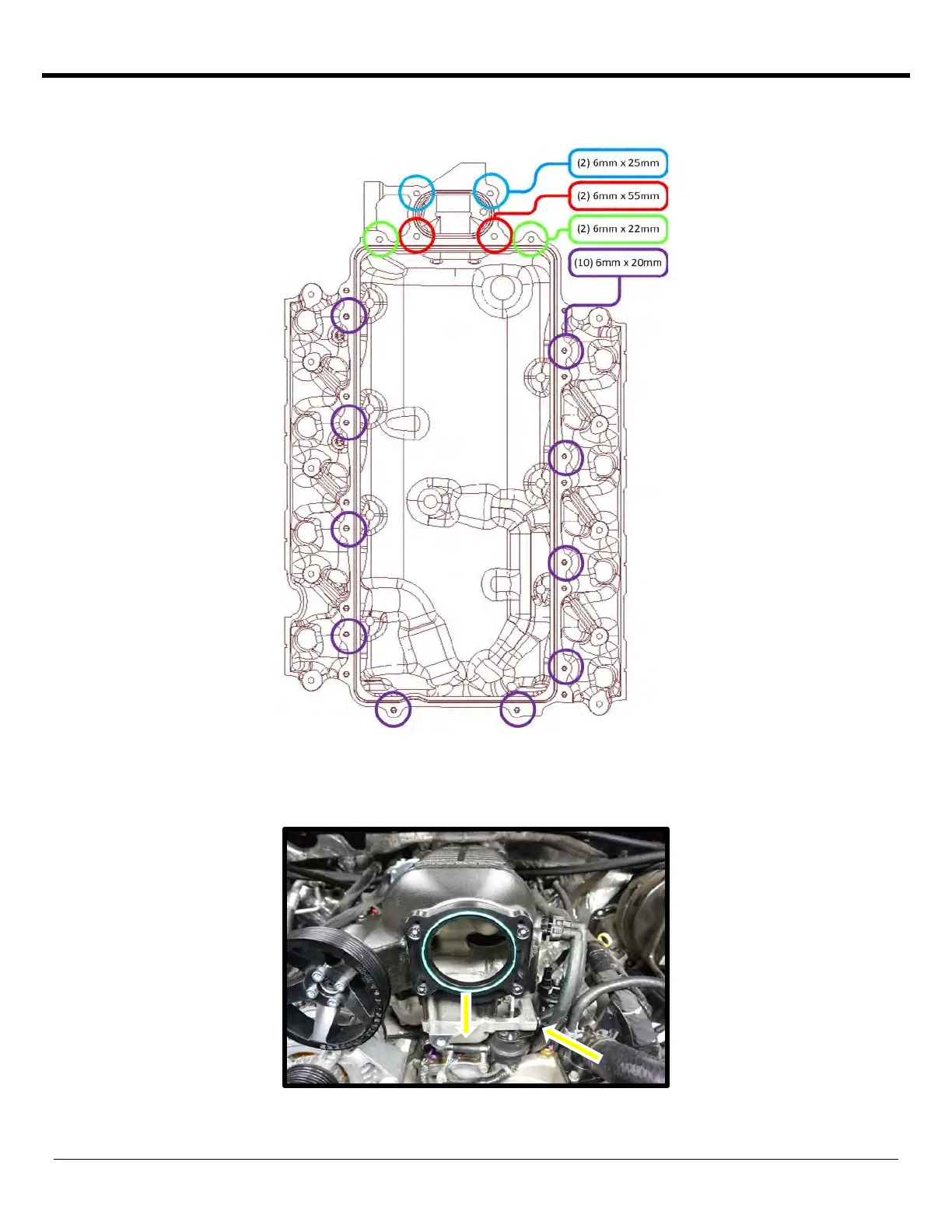

39. Carefully install the SC assembly to the engine by carrying over the intake manifold and setting down after its
properly aligned. First get (16) 6mm SHCS started to ensure proper alignment. Once all (16) are hand tight, torque
the first pass to 49 in/lbs and then a final pass at 89 in/lbs.
40. Reinstall the bypass valve actuator to supercharger assembly. Before torqueing the 8mm bolts, apply light amount
of pre-load to the arm. Torque the (2) bolts to 18 ft/lbs. Secure the ¼” bypass actuator feed line using supplied
clamp.
