Installation Manual: GM LT1_A1R13E
Last Updated: February 12th, 2019
Page 22 of 36
www.whipplesuperchargers.com

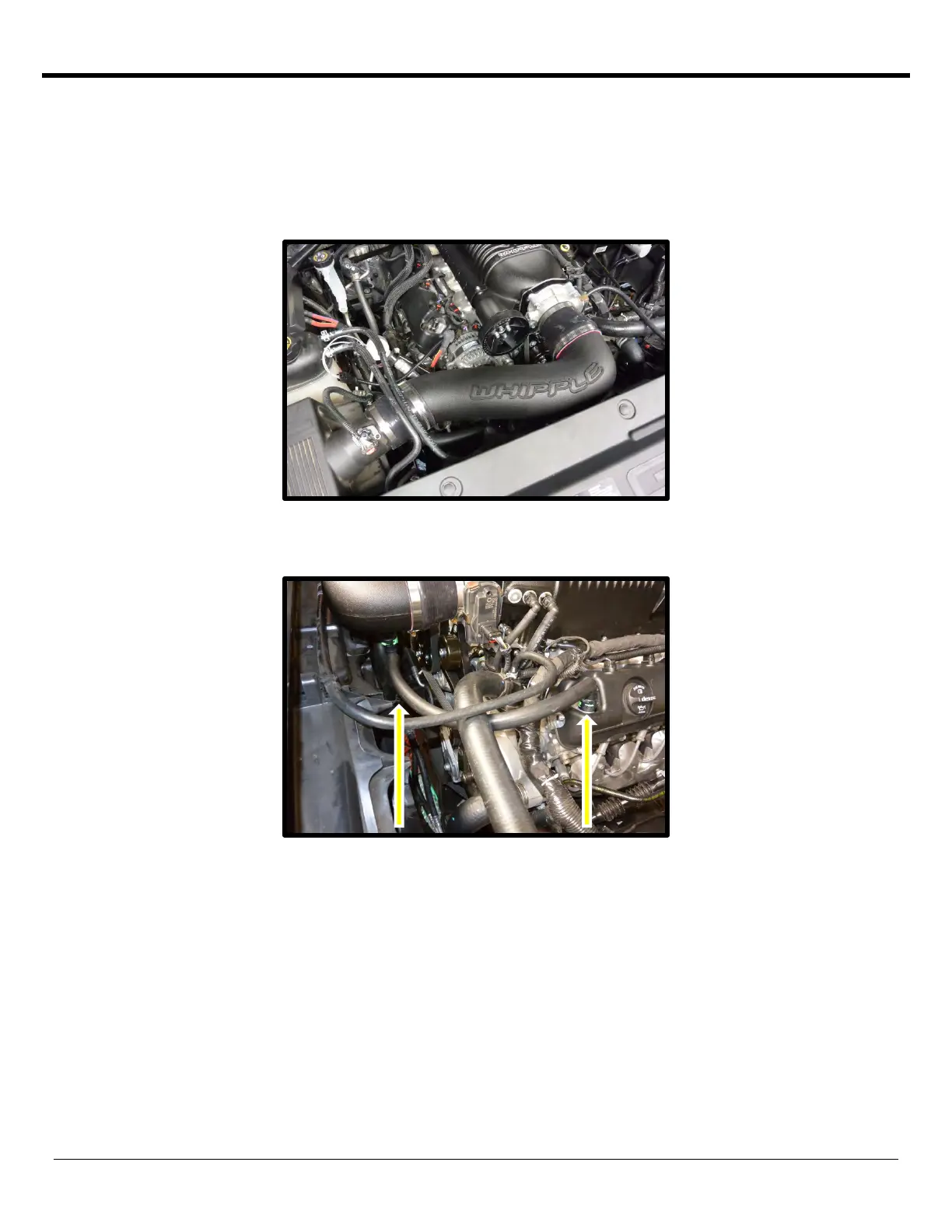

64. Install the supplied high flow filter element to the factory location.
65. Reinstall the factory airbox lid to the factory airbox. Secure using the factory (4) fasteners and an 8mm socket.
66. Install the supplied Whipple air inlet tube with the reducer hose to the factory MAF housing and secure with the
supplied clamp. Install other end of inlet to the supplied silicone hose to the factory throttle body using supplied
clamp. NOTE: It’s easier to install if you install both silicone hoses on the MAF and TB first, then put the air inlet
tube on.
67. Install the driver side PCV/Vent hose to the quick connect fitting on the driver side of air inlet tube and connect to
driver side valve cover. Push until it locks in place.
