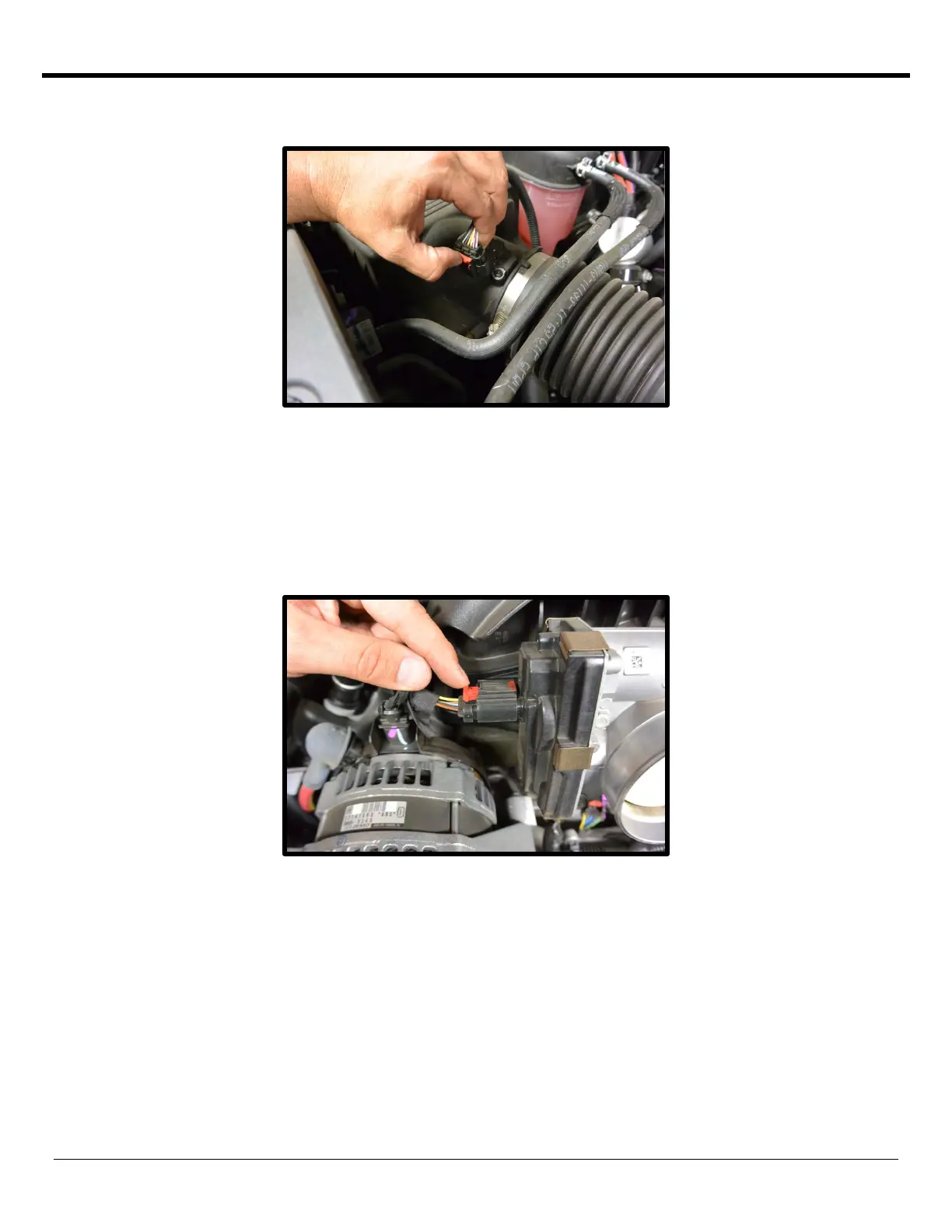

6. Disconnect the MAF sensor connector by pulling up on the red safety clip, and then squeezing the connector while
pulling up.
7. Loosen the hose clamp using an 8mm nut driver that secures the MAF housing to the stock air induction tube and
the hose clamp holding the air induction tube to the throttle body. Lift the factory air ducting away from engine.
8. Remove the factory airbox lid by removing the (4) mounting bolts using an 8mm socket. Remove the stock air filter
element, this will not be reused.
9. Disconnect the electronic throttle connector by pulling up on the red safety clip, and then squeezing the connector
while pulling up.
