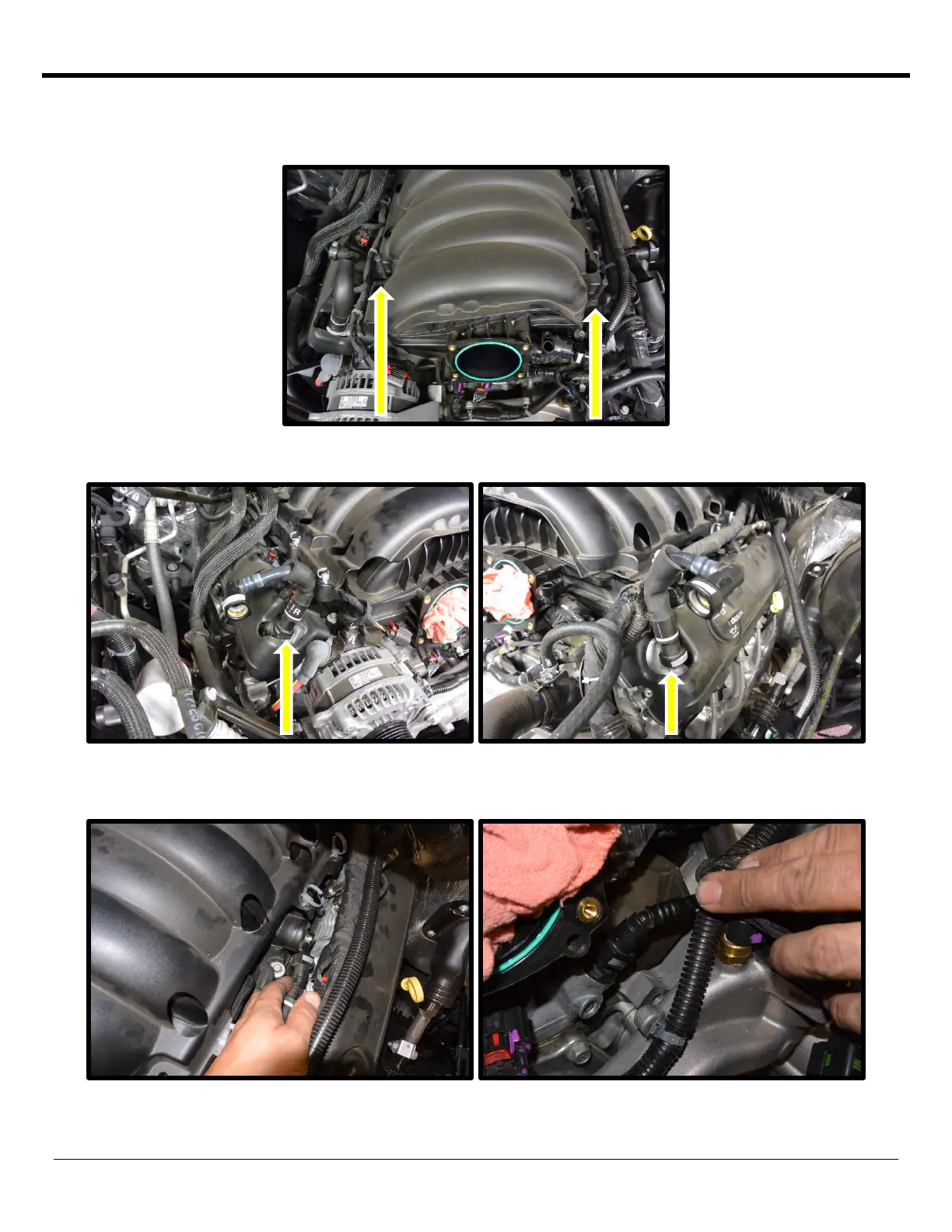

14. Remove the (2) air duct support stands from the intake manifold using a 10mm wrench or deep-well socket.
Remove the (2) fasteners located in the back securing the intake manifold cover to the intake manifold using a
10mm socket.
15. Remove the valve cover to air duct plastic vent tubes from valve covers by squeezing the connector and pulling up.
16. Remove the vent line from the valley tray to the manifold quick connect fitting by squeezing the connector and
pulling away from intake manifold. Remove end from valley tray (this is in the way for manifold removal).
17. Remove the (8) cable ties securing the wire harness to the intake manifold cover (these will not be reused).
