Whirlpool ACD052MM0 - Completing Installation

7

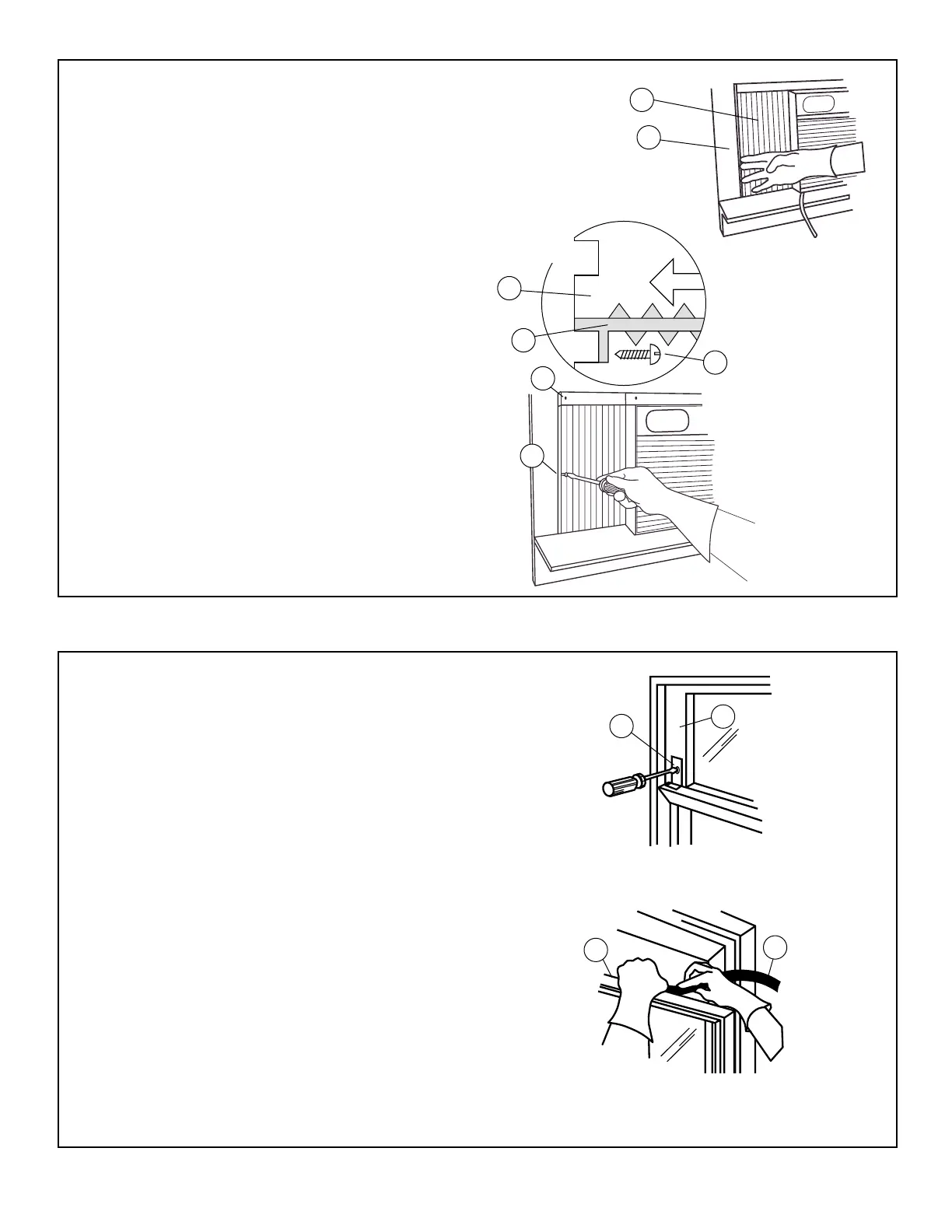

4. Pull left curtain (D) out until it fits into the window
channel (E). Repeat with right curtain.
Top view
E
D
E
D
F
5. Insert one of the slotted round-head screws (F)
through left curtain and into the window channel or
through alternate hole (G) at the top of the curtain
and into the window channel to fasten the curtain to
the window sash. Repeat for right curtain.
F
G
NOTE: Install window-lock bracket to prevent air
conditioner from falling out of window.
1. Place window-lock bracket (H) on top of lower
window and against upper window sash (I).
2. Use a 3/32 in. drill bit to drill a starter hole through
the hole in the bracket.
3. Attach window-lock bracket by inserting one of the
slotted round-head screws through the window lock
bracket (H) and into the upper window sash (I).
4. Insert foam seal (J) behind the top of the lower
window sash (K) and against the glass of the upper
window.
5. Plug power cord into outlet.
J
K
H
I
Completing installation
