Whirlpool AGB 650/WP - Page 10

SERVICE
07.04.2005 / Page 10 AGB 650/WP Whirlpool Europe Doc. No: 4812 728 12115 8512 650 01000 Customer Service

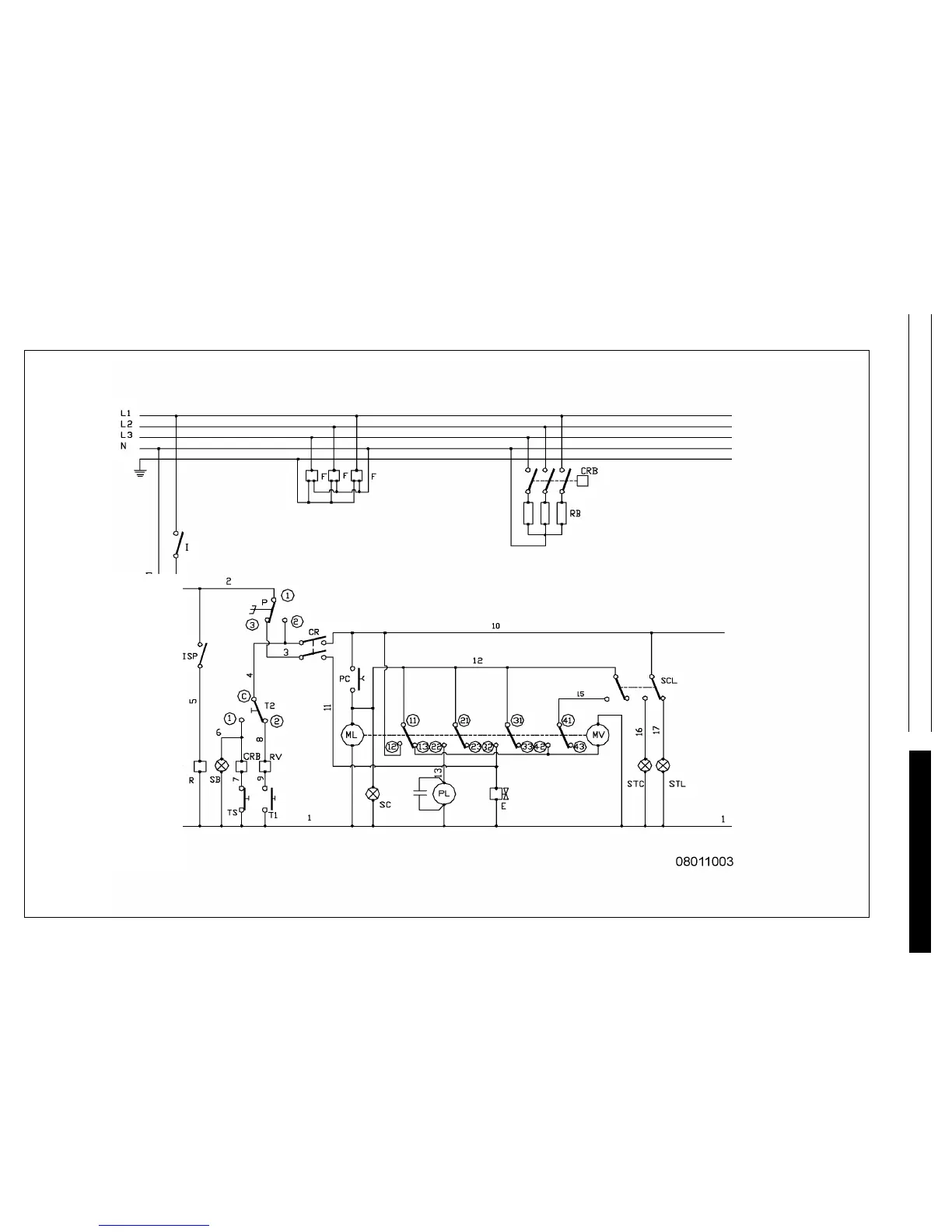

Circuit diagram
CR Contact relais
CRB Control switch contact
E Rinse soleinoid valve
F Interference filter
I Main switch
ISP Door safety device
ML Motor - Long cycle timer
MV Motor - Fast cycle timer
P Tank pressure switch
PC Button - cycle
PL Motor - Spray pump
R Door microswitch relay
RB Heating - boiler
RV Heating - tank
SB Pilot lamp - boiler
SC Pilot lamp - cycle
SL Pilot lamp - power
SCL Wash cycle selector
STC Pilot lamp - Fast cycle
STL Pilot lamp - Long cycle
T1 Thermostat - tank
T2 Thermostat - boiler
TS Thermostat - safety device
