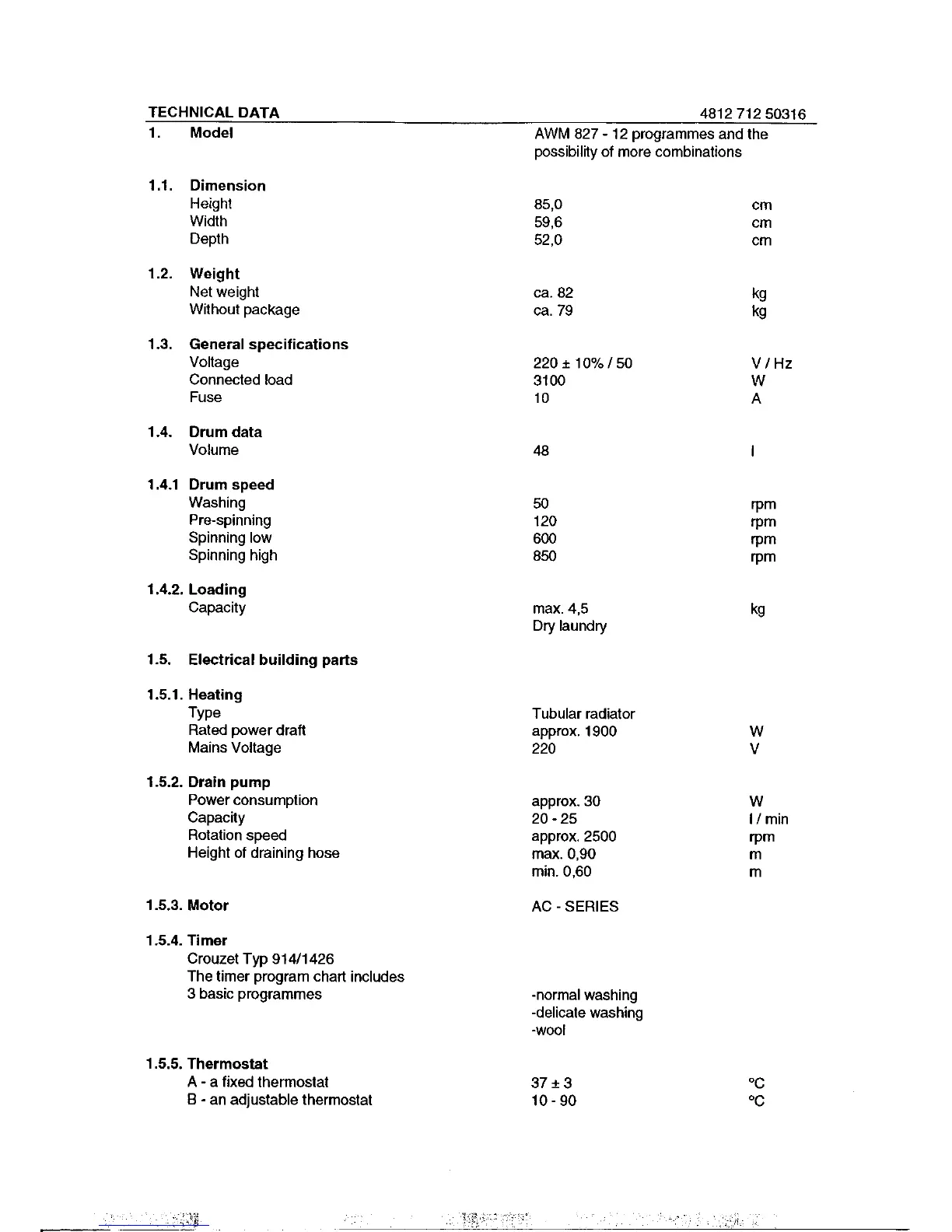

TECHNICAL DA TA 481271250316
1. Model A WM 827 -12 programmes and the
possibility of more combinations
1.1. Dimension
Height 85,0 cm
Width 59,6 cm
Depth 52,0 cm
1.2. Weight
Net weight ca. 82 kg
Without package ca. 79 kg
1.3. General specifications
Voltage 220 :t 10% / 50 V / Hz
Connected load 3100 W
Fuse 10 A
1.4. Drum data
Volume 48 I
1.4.1 Drum speed
Washing 50 rpm
Pre-spinning 120 rpm
Spinning low 600 rpm
Spinning high 850 rpm
1.4.2. Loading
Capacity max. 4,5 kg
Dry laundry
1.5. Electrical building parts
1.5.1. Heating
Type Tubular radiator
Rated power draft approx. 1900 W
Mains Voltage 220 V
1.5.2. Drain pump
Power consumption approx. 30 W
Capacity 20 -25 I / min
Rotation speed approx. 2500 rpm
Height of draining hose max. 0,90 m
min. 0,60 m
1.5.3. Motor AG -SERIES
1.5.4. Timer
Grouzet Typ 914/1426
The timer program chan includes
3 basic programmes -normal washing
-delicate washing
-wool
1.5.5. Thermostat
A -a fixed thermostat 37 :t 3 °G
B -an adjustable thermostat 10 -90 °G
