MICROWAVE OVEN SAFETY
INSTALLATION INSTRUCTIONS
Tools Recommended
Gather the required tools and parts before starting installation.
Read and follow the instructions provided with any tools listed
here.

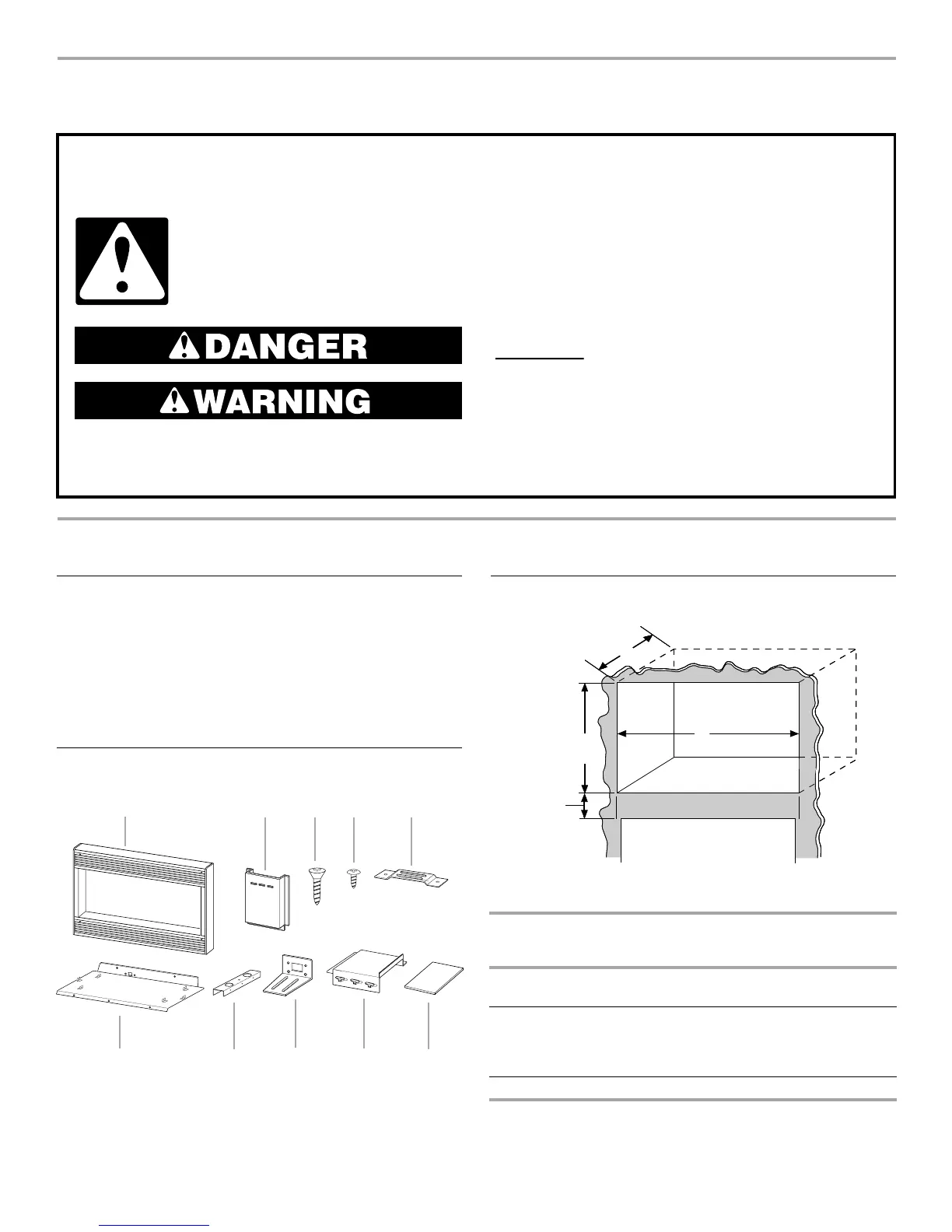

Parts Supplied
Cutout Dimensions
You can be killed or seriously injured if you don't
immediately follow instructions.
You
can be killed or seriously injured if you don't
follow instructions.
All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you
what can
happen if the instructions are not followed.
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and on your appliance. Always read and obey all
safety messages.
This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or hurt you and others.
All safety messages will follow the safety alert symbol and either the word “DANGER” or
“WARNING.” These words mean:
■ Measuring tape
■ Pencil
■ Scissors
■ #2 Phillips screwdriver
■ ⁵⁄₆₄" drill
A. Trim kit frame
B. Side duct (1)
C. 1" screws (4, plus 2 extra)
D.
¹⁄₂
" screws (15, plus 2 extra)
E. Anti-tip bracket (1)
F. Bottom duct floor (1)
G. Bottom duct supports (2)
H. Bottom bracket (1)
I. Upper duct (1)
J. Template (1)
ABCDE
FGHIJ
A. Width
B. Depth
DIMENSION
S
OVER 27" (68.6
CM) BUILT-IN
OVEN
OVER 30" (76.2 CM)
BUILT-IN OVEN
Width 25¹⁄₂" (64.77 cm) 25¹⁄₂" (64.77 cm) min;
28¹⁄₂" (72.39 cm) max.
Depth 21" (53.34 cm) min. with flush mount
receptacle;
22³⁄₄" (57.79 cm) min. without flush mount
receptacle
Height 16³⁄₄" (42.55 cm) (for all models)
WidthWidth
16³⁄₄"
(42.55 cm)
3"
(7.6 cm)
B
A
