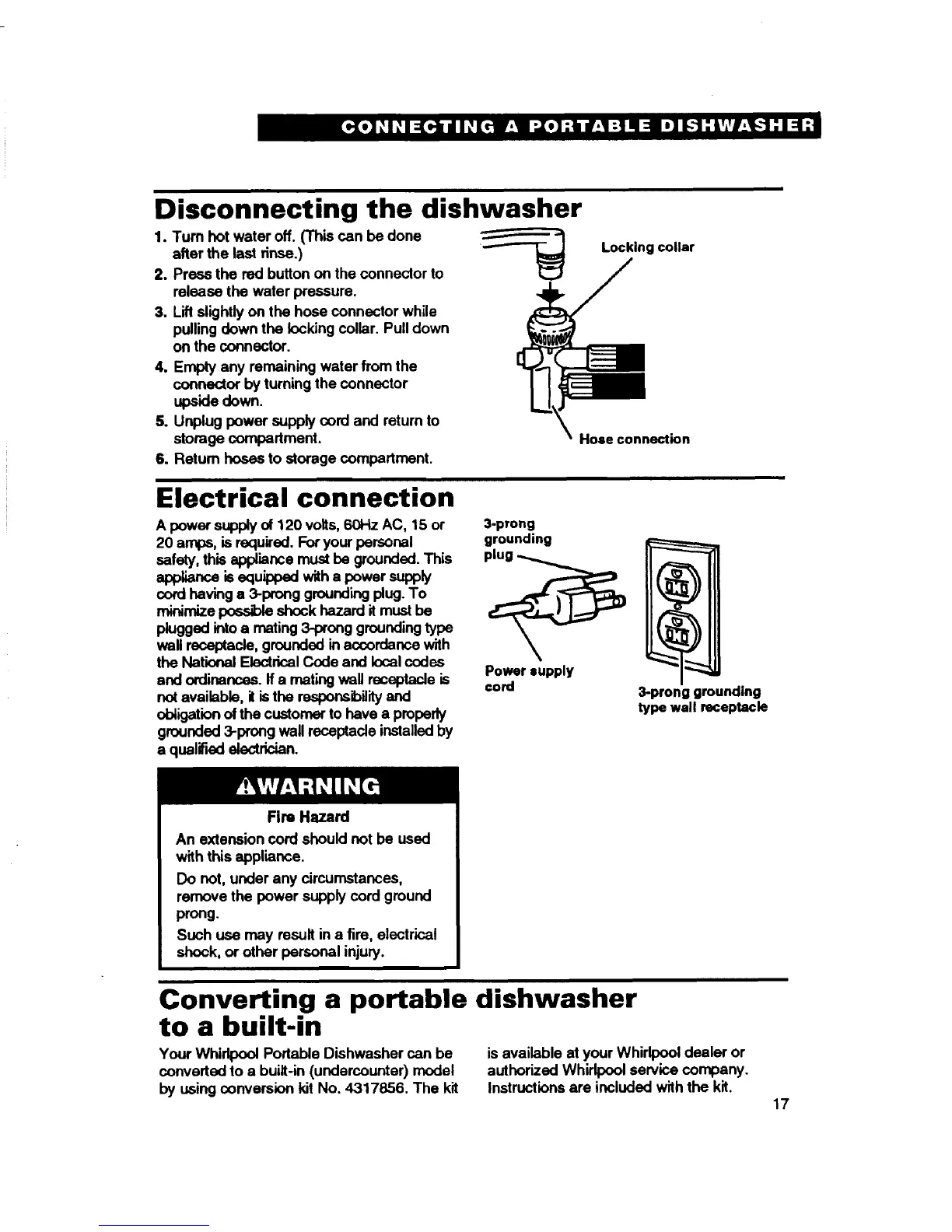

Disconnecting the dishwasher
1. Turn hot water off. (This can be done
after the last rinse.)
2, Press the red button on the connector to
release the water pressure.
3. Lift slightlyon the hose connector while
pulling down the lockingcollar. Pull down
on the connector.
4. Empty any remaining water from the
connector by turning the connector
upside down.
5. Unplug power supply cord and return to
storage compartment.
6. Retum hoses to storage compartment.
Locking collar
Hose connection
Electrical connection
A power supply of 120 volts, 60Hz AC, 15 or
20 amps, isrequired. For your personal
safety, this appliance must be grounded. This
appliance is equipped witha power supply
cord having a 3-prong groundingplug.To
minimize _ shock hazard it mustbe
plugged into a mating 3-prong groundingtype
wall receptacle, grounded in accordance with
the National Electrical Code and local codes
and ordinances. If a mating wall receptacle is
not available, itis the rosponsU',ilityand
obligationof the customer to have a properly
grounded 3-prong wall receptacle installedby
a qual_ied electrician.
3-prong
p_gr°unding
Power supply
cord 3-prong grounding
type wall receptacle
Fire Hazard
An extension cord should not be used
with this appliance.
Do not, under any circumstances,
remove the power supply cord ground
prong.
Such use may result in a fire, electr'v'.,al
shock, or other personal injury.
Converting a portable dishwasher
to a built-in
Your Whirlpool Portable Dishwasher can be isavailable at your Whirlpool dealer or
converted to a built-in (undercountar) model authorized Whirlpool service company.
by using conversion kit No. 4317856. The kit Instructions are included with the kit.
17
