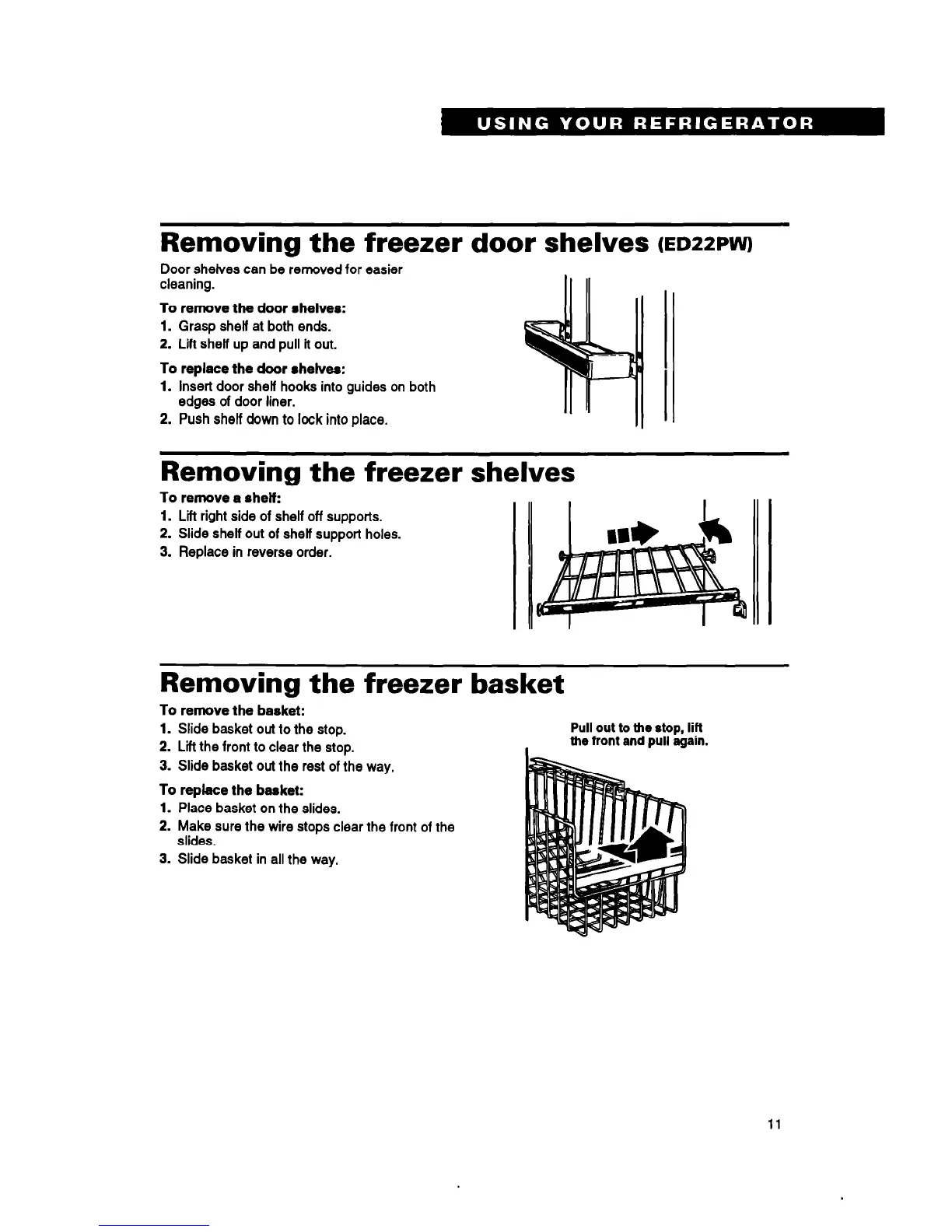

Removing the freezer door shelves
(EDZZPW
Door shelves can be removed for easier
cleaning.
To remove the door shelves:
1.
Grasp shelf at both ends.
2. Lift shelf up and pull it out.
To replace the door shelves:
1. Insert door shelf hooks into guides on both
edges of door liner.
2. Push shelf down
to
lock into
place.
Removing the freezer shelves
To remove a shelf:
1. Lift right side of shelf off supports.
2. Slide shelf out of shelf support holes.
3. Replace in reverse order.
Removing the freezer basket
To remove the basket:
1. Slide basket out to the stop.
2. Lift the front to clear the stop.
3. Slide basket out the rest of the way.
To replace the basket:
1. Place basket on the slides.
2. Make sure the wire stops clear the front of the
slides.
3. Slide basket in all the way.
Pull out to the stop, lift
I
the front and pull again.
11
