Whirlpool ED5LHEXTD00 - Air Flow Parts

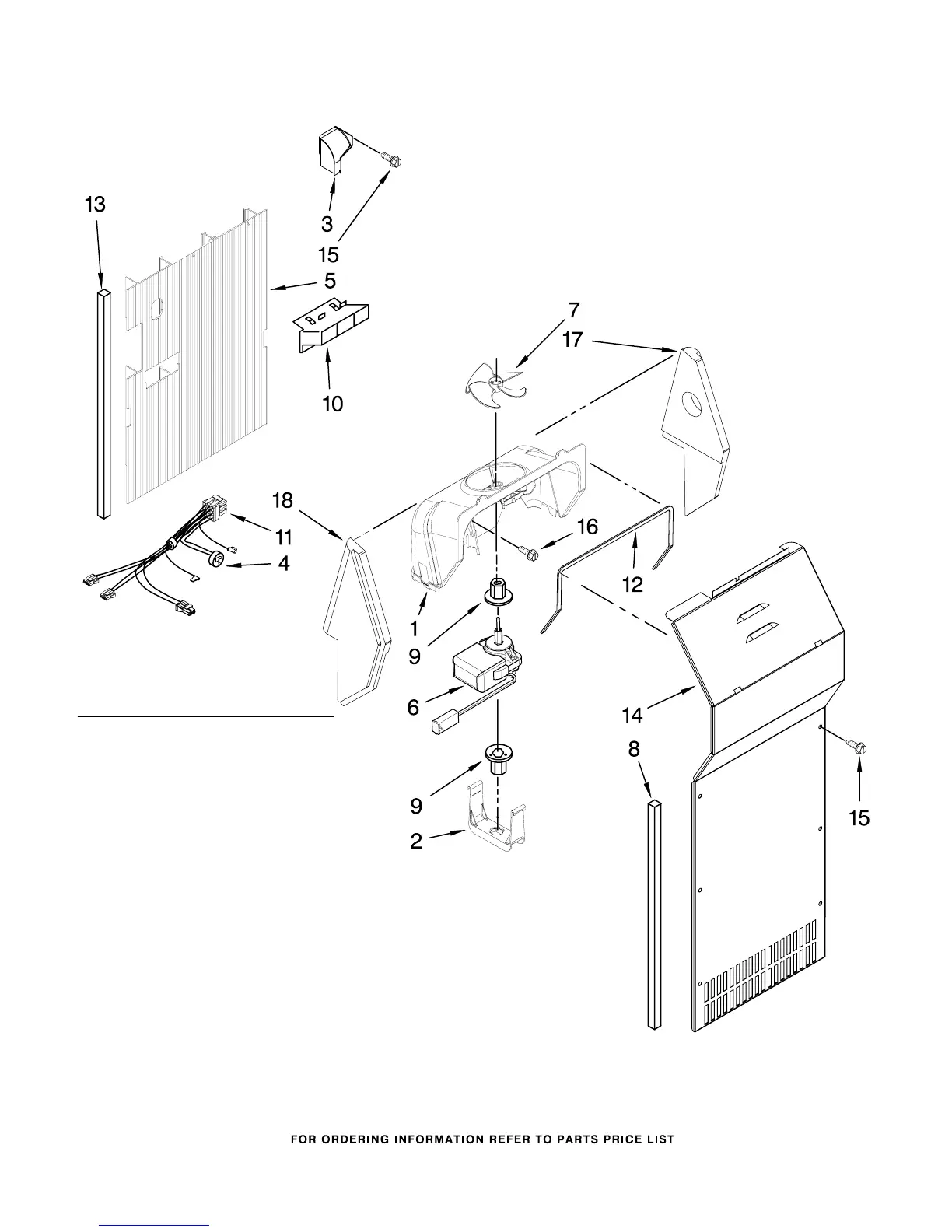

AIR FLOW PARTS
17
For Models: ED5LHEXTD00
(Universal Silver)
W10142735
Illus. Part
No. No. DESCRIPTION
1 2182120 Fan Scroll
2 2155590 Retainer,
Fan Motor
3 2161231 Air Scoop
4 2315504 Bi−Metal, Defrost
5 2203593 Air Duct Freezer
6 2162404 Fan Motor
7 2169142 Fan Blade
8 2304241 Gasket, Evaporator
Cover (2)
9 2176759 Fan Grommet (2)
10 2182146 Duct, Icemaker
11 2310114 Harness, Fan
Evaporator
(Includes #4)
12 2155789 Gasket, Fan Scroll
13 2203876 Gasket
14 2203841 Cover, Evaporator
15 8281159 Screw (6)
16 489478 Screw
17 2203595 Support, R.S
18 2203596 Support, L.S
