Whirlpool ED5LHEXTD00 - Control Parts

CONTROL PARTS
18
For Models: ED5LHEXTD00
(Universal Silver)
W10142735
Illus. Part
No. No. DESCRIPTION
Illus. Part
No. No. DESCRIPTION
Illus. Part
No. No. DESCRIPTION

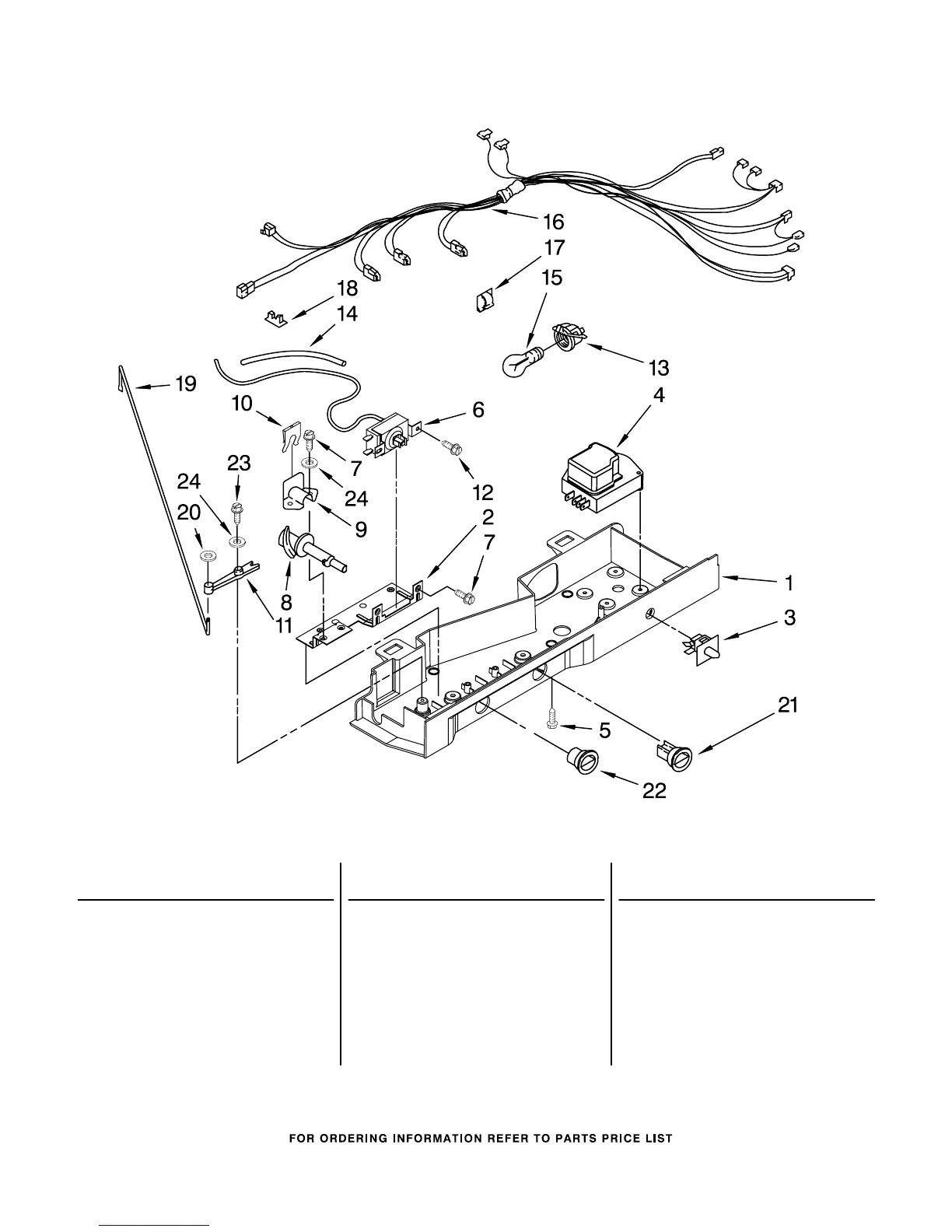

1 2311623 Control Box
2 2311611 Mounting Bracket
3 2219875 Light Switch
4 2303824 Electronic
Control
5 489398 Screw (2)
6 2198202 Thermostat
7 3196537 Screw
8 2182195 Cam Assembly
9 1110560 Bearing Body
10 2196062 Damper Control
11 1110559 Pivot Arm
12 487869 Screw (2)
13 2162085 Light Socket
14 2196001 Tube Barrier,
Thermostat
15 2311792 Light Bulb
16 2311633 Control Box
Harness
17 1115374 Clip, Wiring
18 1115375 Clip, Wiring
19 2311631 Connecting Rod
20 489285 Fastener, Push−On
21 2311614 Thermostat Knob
22 2311615 Control Knob
23 627068 Screw
24 489203 Spring Washer
