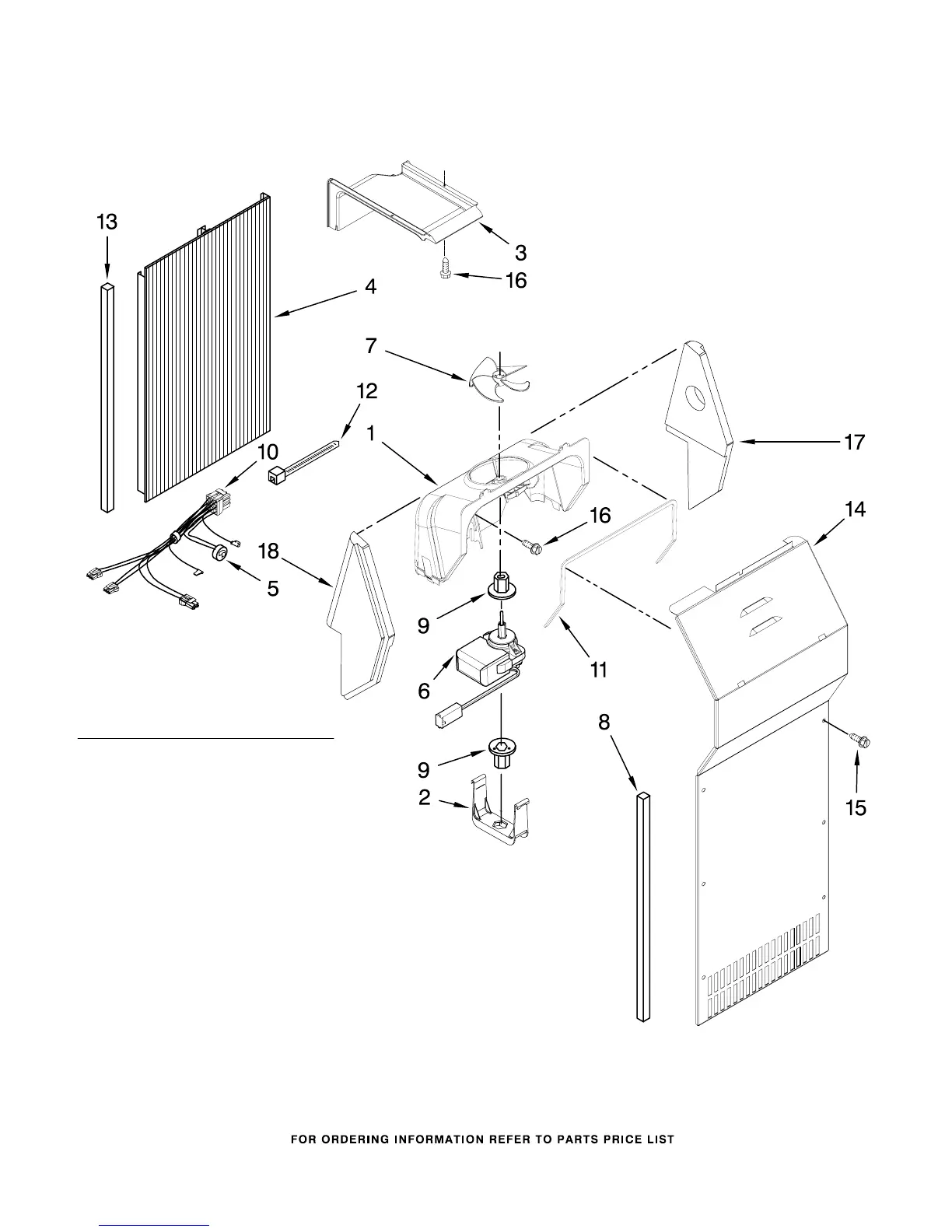

AIR FLOW PARTS
15
W10177407
Illus. Part
No. No. DESCRIPTION
1 2182120 Fan Scroll
2 2155590 Retainer
Fan Motor
3 2313359 Air Duct, Upper
4 2198580 Air Duct Freezer
5 2319914 Bi−Metal, Defrost
6 2315549 Fan Motor
7 2169142 Fan Blade
8 2304241 Gasket, Evaporator
Cover (2)
9 2176759 Fan Grommet (2)
10 2310237 Harness, Fan
Evaporator
(Includes #5)
11 2155789 Gasket, Fan Scroll
12 2172840 Strap
13 2203876 Gasket
14 2206314 Cover, Evaporator
(Includes #8)
15 8281159 Screw (6)
16 489478 Screw
17 2203595 Support, R.S.
18 2203596 Support, L.S.
For Models: ED5LVAXVQ00, ED5LVAXVB00
(White) (Black)
