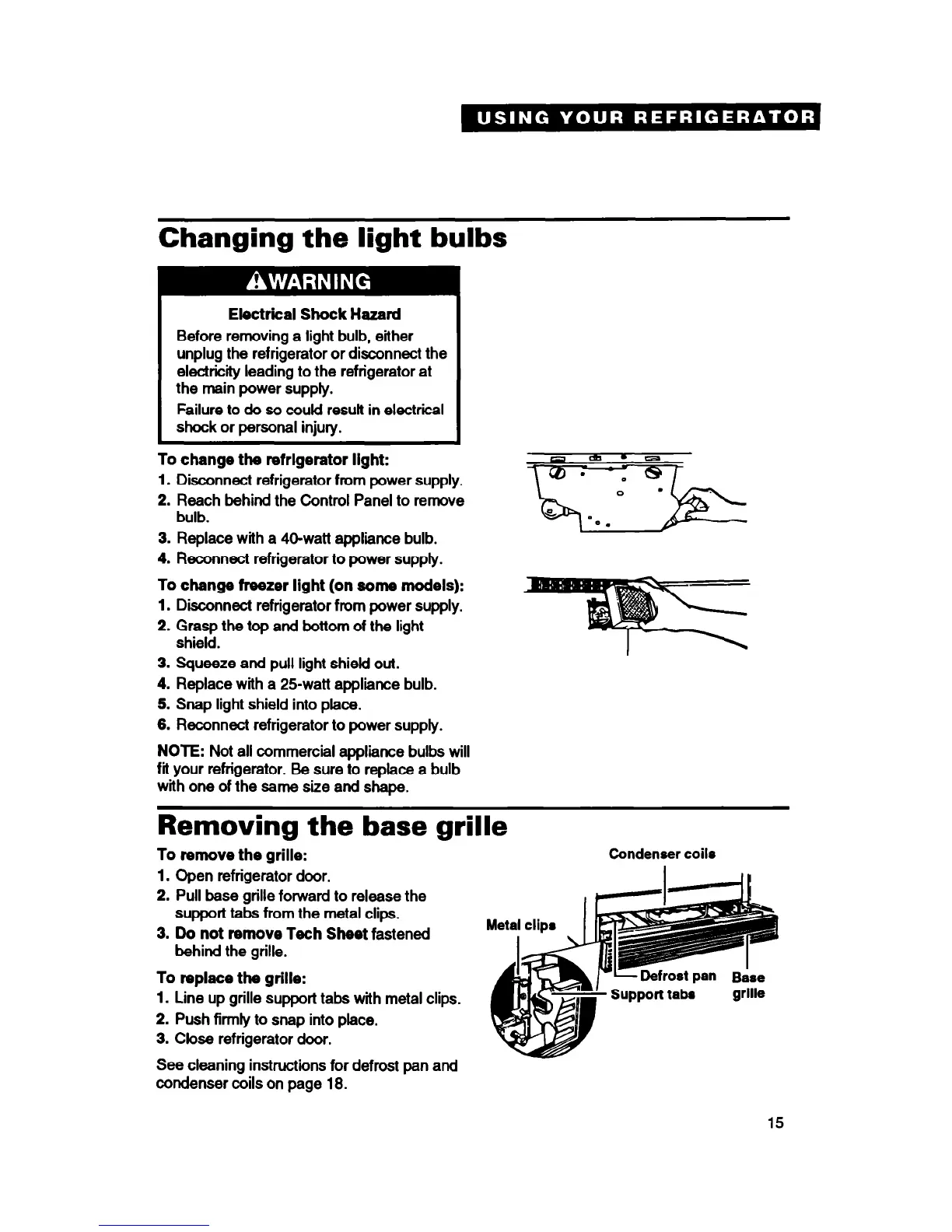

Changing the light bulbs
Electrical Shock Hazard
Before removing a light bulb, either
unplug the refrigerator or disconnect the
electricii leading to the refrigerator at
the main power supply.
Failure to do so could result in electriil
shock or personal injury.
To change the refrigerator light:
1. Disconnect refrigerator from power supply.
2. Reach behind the Control Panel to remove
bulb.
3. Replace with a 40-watt appliance bulb.
4. Reconnect refrigerator to power supply.
To change freezer light (on some models):
1. Disconnect refrigerator from power supply.
2. Grasp the top and bottom of the light
shield.
3. Squeeze and pull light shield out.
4. Replace with a 25-watt appliance bulb.
5. Snap light shield into place.
6. Reconnect refrigerator to power supply.
NOTE: Not all commercial appliance bulbs will
fit your refrigerator. Be sure to replace a bulb
with one of the same size and shape.
Removing the base grille
To remove the grille:
1. Cpen refrigerator door.
2. Pull base grille forward to release the
support tabs from the metal clips.
3. Do not remove Tech Sheet fastened
behind the grille.
To replace the grille:
1. Line up grille support tabs with metal clips.
2. Push firmly to snap into place.
3. Close refrigerator door.
See cleaning instructions for defrost pan and
condenser coils on page 18.
15
