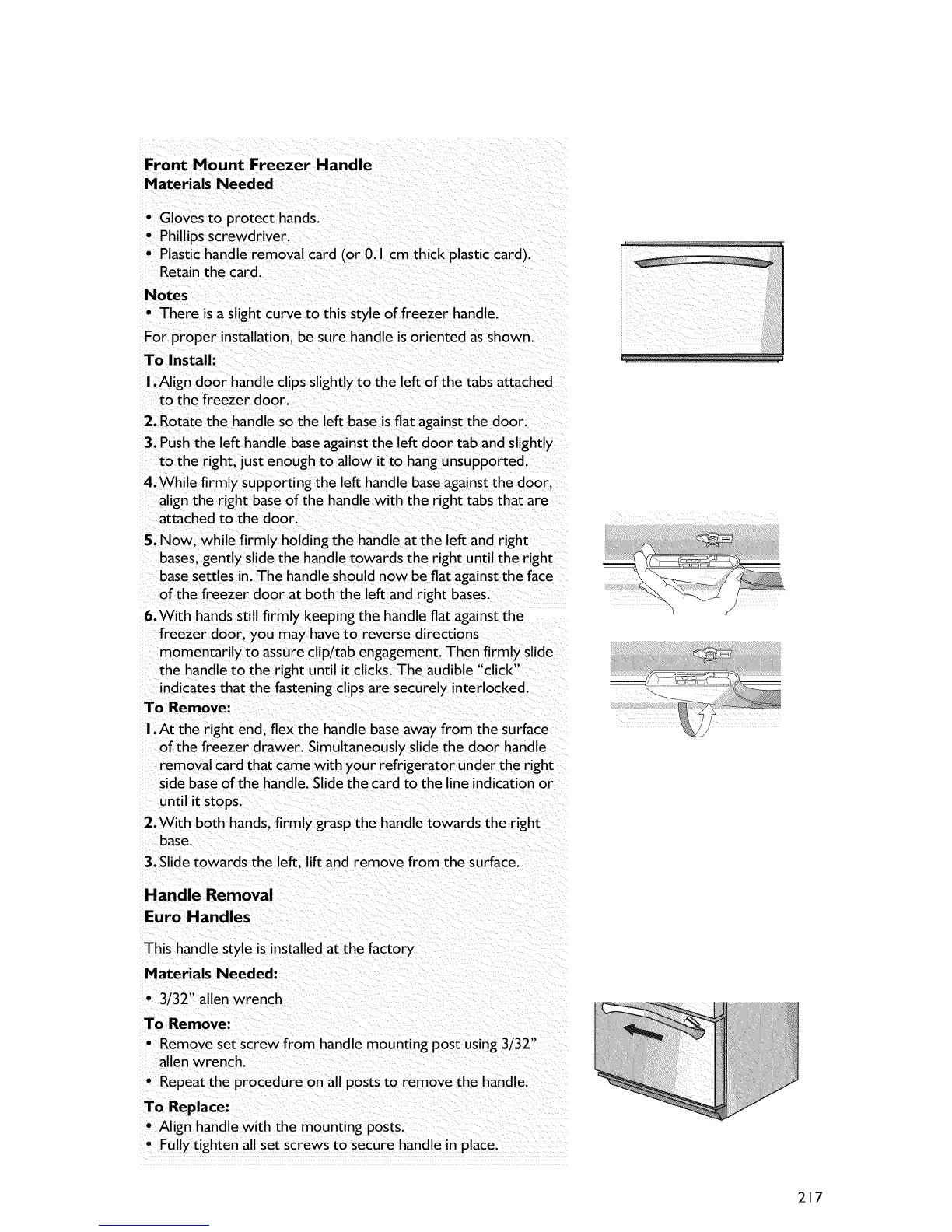

Whirlpool Freezer - Front Mount Freezer Handle; Handle Removal; Euro Handles

FrontMount FreezerHandle
MaterialsNeeded
• Gloves to protect hands.
: Phillips screwdriver.
Plastichandle removal card (or 0. I cm thick plastic card),
Retainthe card.
Notes
• There isa slight curve to this style of freezer handle.
For proper installation, be sure handle isoriented as shown.
To Install:
I.Align door handle clips slightly to the left of the tabs attached
to the freezer door.
3. Pushthe left handle baseagainst the left door tab and slightly
to the right just enough to allow it to hang unsupported.
4.While frmly supporting the left handle baseagainst the door.
attached to the door.
5. Now, while firmly hold ng the handle at the left and right
bases,gently slide the handle towards the right until tie right
basesettles in. The handle should now be fiat againstthe face
momentarily to assureclip/tab engagement. Then firmly slide
the handle to the right until it clicks. The audible "click"
To Remove:
I .At the right end, flex the handle base away from the surface
of the freezer drawer. Simultaneously slide the door handle
removal card that came with your refrigerator under the right
side base of the handle. Slide the card to the line indication or
until it stops.
2.With both hands, firmly grasp the hand e towards the right
base.
3. Slide towards the left, lift and remove from the surface.
H andle Removal
Euro Handles
This handle style is installed at the factory
Materials Needed:
• 3/32" allen wrench
To Remove:
• Remove set screw from handle mounting post using3/32"
allen wrench.
• Repeatthe procedure on all posts to remove the handle.
To Replace:
° Align handle with the mounting posts.
• Fully tighten all set screws to secure handle in place.
217
