Whenthe left door isclosed, the hingedsection automaticallyforms

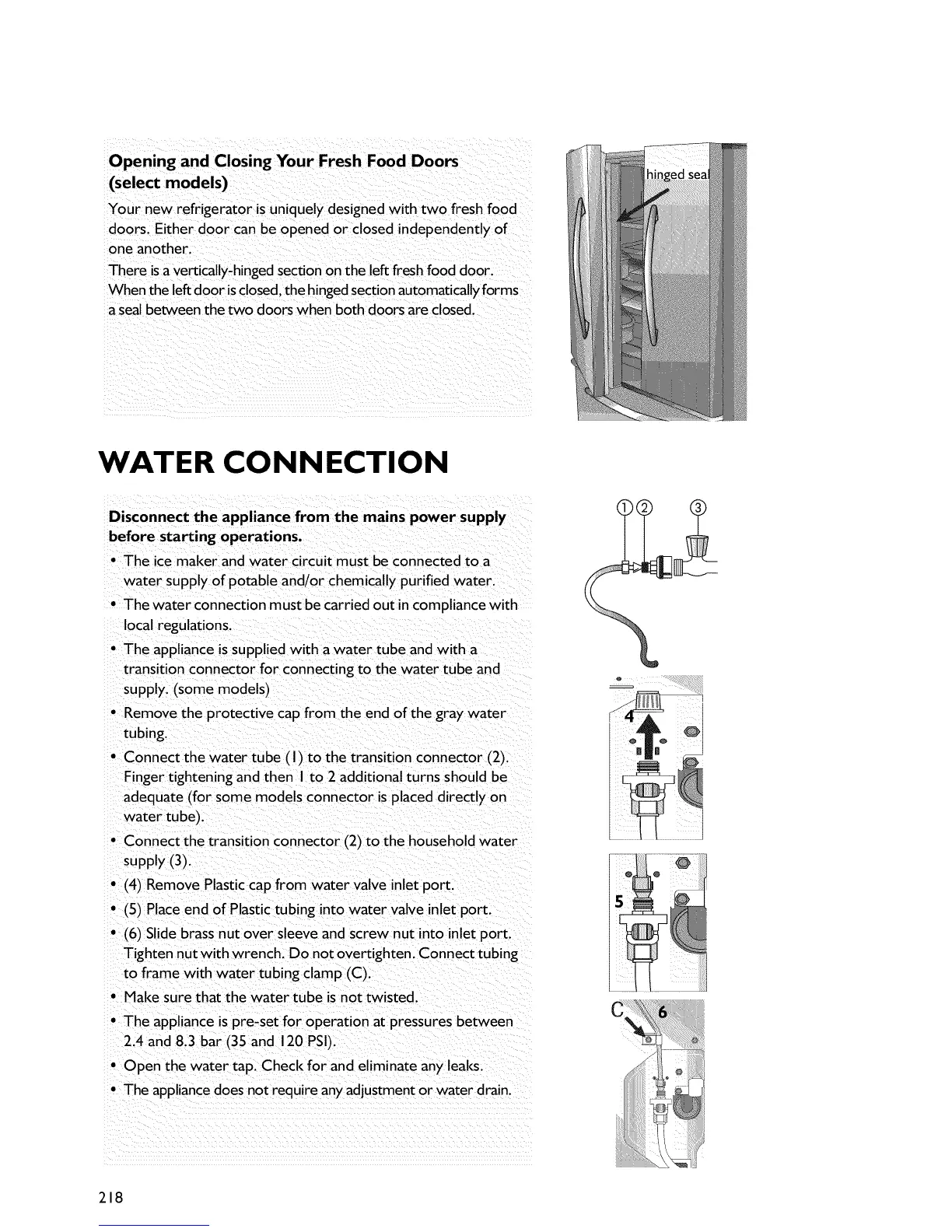

WATER CONNECTION
Disconnect the appliance from the mains power supply
before starting operations.
• The ice maker andwater circuit must be connectedto a
water supplyof potable and/or chemicallypurified water.
• The water connectionmust be carriedout incornpliancewith
localregulations.
• The appliance issuppliedwith a water tube and with a
transition connectorfor connectingto the water tube and
supply. (some models)
• Remove the protective cap from the end of the gray water
tubing.
• Connect the water tube (I) to the transition connector (2).
Finger tightening and then I to 2 additional turns should be
adequate (for some models connector is placed directly on
water tube).
• Connect the transition connector (2) to the household water
supply (3).
• (4) Remove Plasticcap from water valve inlet port.
• (5) Placeend of Plastic tubing into water valve inlet port.
• (6) Slide brass nut over sleeve and screw nut into inlet port.
Tighten nut with wrench. Do not overtighten. Connect tubing
to frame with water tubing clamp (C).
• Make sure that the water tube is not twisted.
• The appliance ispre-set for operation at pressures between
2.4 and 8.3 bar (35 and 120 PSI).
• Open the water tap. Check for and eliminate anyleaks.
• The appliancedoes not require any adjustment or water drain.
c .....i iiililiHHilHiilliii!iHl
i!i!!!i_!i_iiiiii_iiiji!iil
218
