INSTALLATION INSTRUCTIONS
Golf Caddy Use Requirements
■ Intended to be installed on Gladiator
®
Garageworks GearWall
®
panel or GearTrack
®
channels.
■ Maximum weight limit is 25 lbs (11.34 kg) for the shoe shelf.
■ Maximum weight limit is 50 lbs (22.68 kg) for the golf bag shelf.
■ Maximum weight limit is 75 lbs (34.0 kg) for the golf bag caddy.
Unpack the Golf Caddy Parts
Remove the golf caddy parts and fasteners, and dispose of/recycle
all packaging materials.
Assemble Golf Caddy
Gather the required tools before starting assembly.
Tools Needed
Tools Supplied

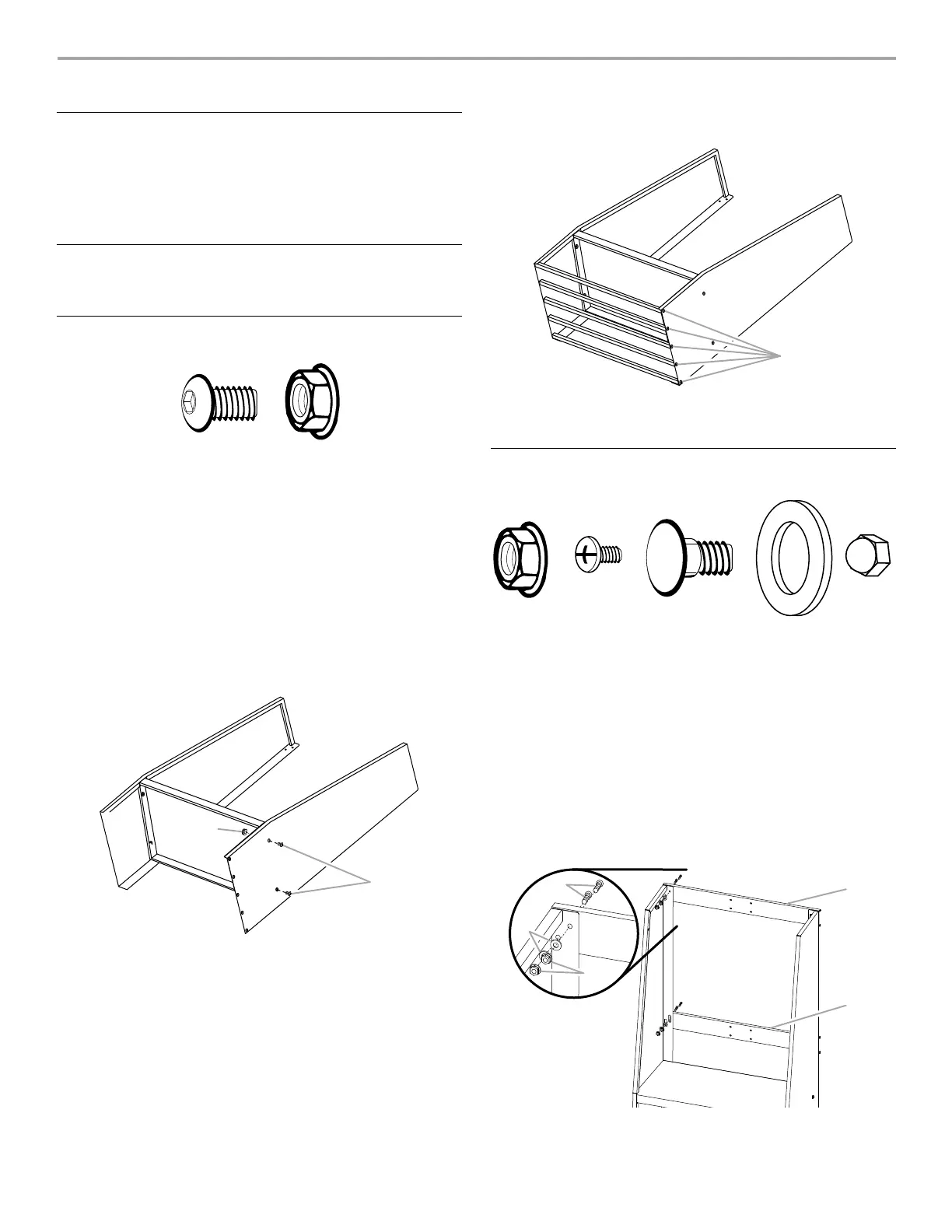

1. Using ⁵⁄₁₆" hex-head bolts (F1) and ⁵⁄₁₆" flange nuts (F2), attach
the golf bag shelf to the sides as shown.
2. Create a shoe shelf by using ⁵⁄₁₆" hex-head bolts (F1), to attach
the 5 rods to both sides of the golf caddy, as shown.
3. Stand the golf caddy upright.
Attach Mounting Brackets
1. With the mounting bracket rims pointing down, align the
2 bracket holes with the top two holes in each side.
2. Working from the back, insert a carriage-head bolt (F7) through
the holes in the bracket and into the side.
3. Working from the front, fasten each bolt with a washer (F8) and a
flange nut (F2). Completely tighten the nuts.
4. Repeat steps 1 through 3 to attach the lower mounting bracket.
NOTE: Hand tighten the nuts attaching the lower bracket. In
order to mount the golf caddy on the wall, this bracket will need
to be adjusted.
F1 F2
F1:
⁵⁄₁₆
" hex-head bolt (14)
F2:
⁵⁄₁₆
" flange nut (4)
■ ³⁄₈" nut driver
■ ¹⁄₂" nut driver
■ Phillips-head screwdriver
■ Hex key
A.
⁵⁄₁₆
" flange nut (F2)
B.
⁵⁄₁₆
" hex-head bolt (F1)
A.
⁵⁄₁₆
" hex-head bolt (F1)
F2 F3b F7 F8 F10
F2
F3b
F7
⁵⁄₁₆
" flange nut (8)
Phillips-head screw (4)
Carriage-head bolt (8)
F8
F10
Washer (8)
Acorn nut (4)
A. Carriage-head bolts (F7)
B. Washer (F8)
C. Flange nuts (F2)
D. Upper mounting bracket
E. Lower mounting bracket
D
E
