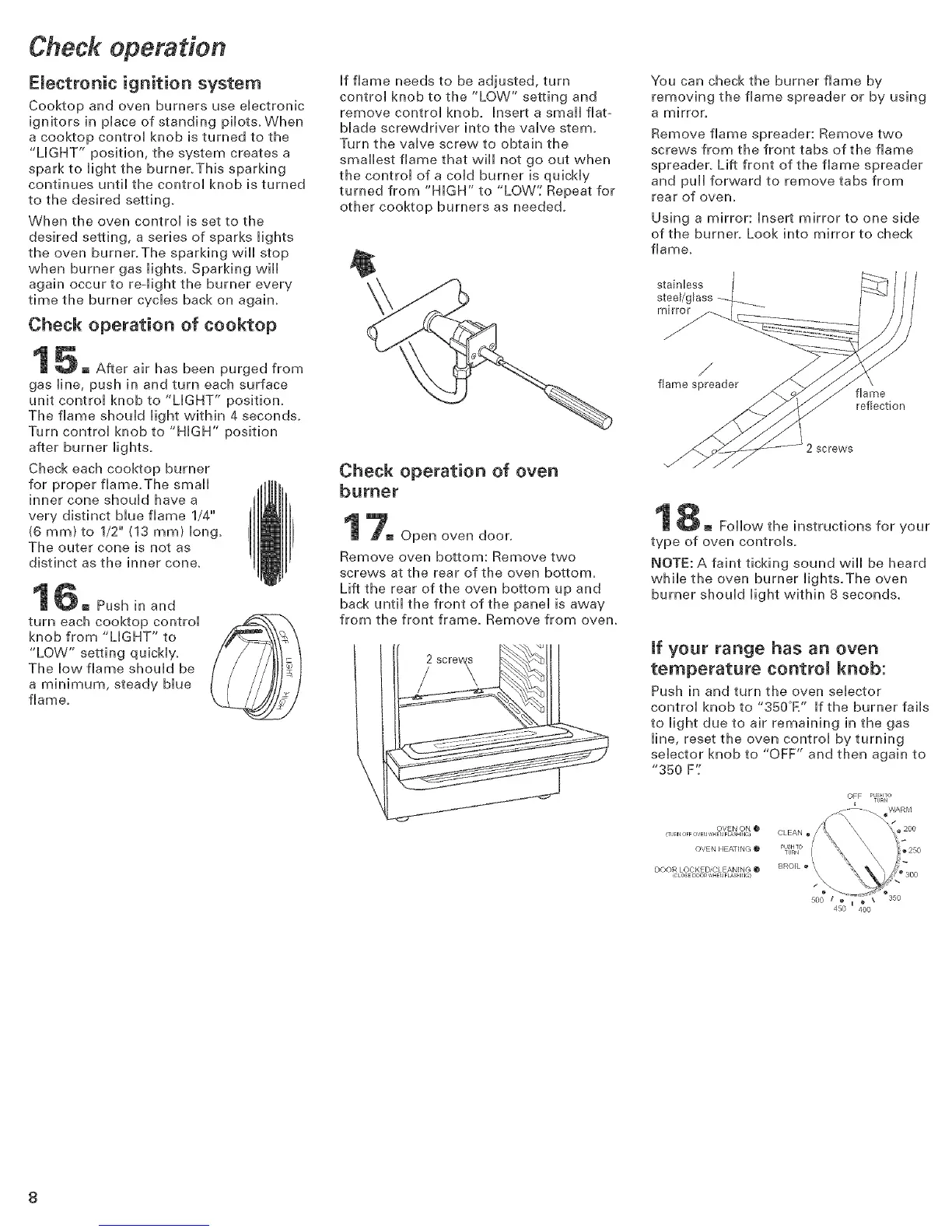

Check operation
Electronic ignition system
Cooktop and oven burners use eiectronic
ignitors in piace of standing pibts. When
a cooktop controi knob is turned to the
"UGHT" position, the system creates a
spark to Night the burner.This sparking
continues until the controi knob is turned
to the desired setting.
When the oven controi is set to the
desired setting, a series of sparks Nights
the oven burner.The sparking wHi stop
when burner gas Nights, Sparking will
again occur to re-light the burner every
time the burner cycles back on again.
Check operation of cooktop
[] After air has been purged from
gas line, push in and turn each surface
unit control knob to "LIGHT" position.
The flame should light within 4 seconds.
Turn control knob to "HIGH" position
after burner lights.
Check each cooktop burner
for proper flame.The small
inner cone should have a
very distinct blue flame 1/4"
(6 ram) to 1/2"' (13 ram) long,
The outer cone is not as
distinct as the inner cone.
[] Push in and
turn each cooktop control
knob from "LIGHT" to
"LOW" setting quickly.
The low flame should be
a minimum, steady blue
flame.
if flame needs to be adjusted, turn
control knob to the "LOW" setting and
remove control knob. Insert a small flat-
blade screwdriver into the valve stem.
Turn the valve screw to obtain the
smallest flame that will not go out when
the control of a cold burner is quickly
turned from "HIGH" to "LOW': Repeat for
other cooktop burners as needed.
Check operation of oven
burner
[] Open oven door.
Remove oven bottom: Remove two
screws at the rear of the oven bottom.
Lift the rear of the oven bottom up and
back until the front of the panel is away
from the front frame. Remove from oven.
You can check the burner flame by
removing the flame spreader or by using
a mirror,
Remove flame spreader: Remove two
screws from the front tabs of the flame
spreader. Lift front of the flame spreader
and pull forward to remove tabs from
rear of oven.
Using a mirror: insert mirror to one side
of the burner. Look into mirror to check
flame_
stainless
stee
mirror
/
flame spreader
flame
reflection
[] Follow the instructions for your
type of oven controls.
NOTE: A faint ticking sound will be heard
while the oven burner lights,The oven
burner should light within 8 seconds.
if your range has an even
temperature control knob:
Push in and turn the oven selector
control knob to "350°E " if the burner fails
to light due to air remaining in the gas
line, reset the oven control by turning
selector knob to "OFF" and then again to
"350 F':
OFF PlJ HTO
TLIRH
OVEN ON •
(TIJRHOFFOTEH,_HEHFL_SHING) CLEAN
OVEN HEATING Q PUSHTuRNTOi
DOOR LOCKED/CLEANING O BROIL ® _\
,CLOSEDOOR¸,',¸HEnFLASHIng) \\
/ \
200
