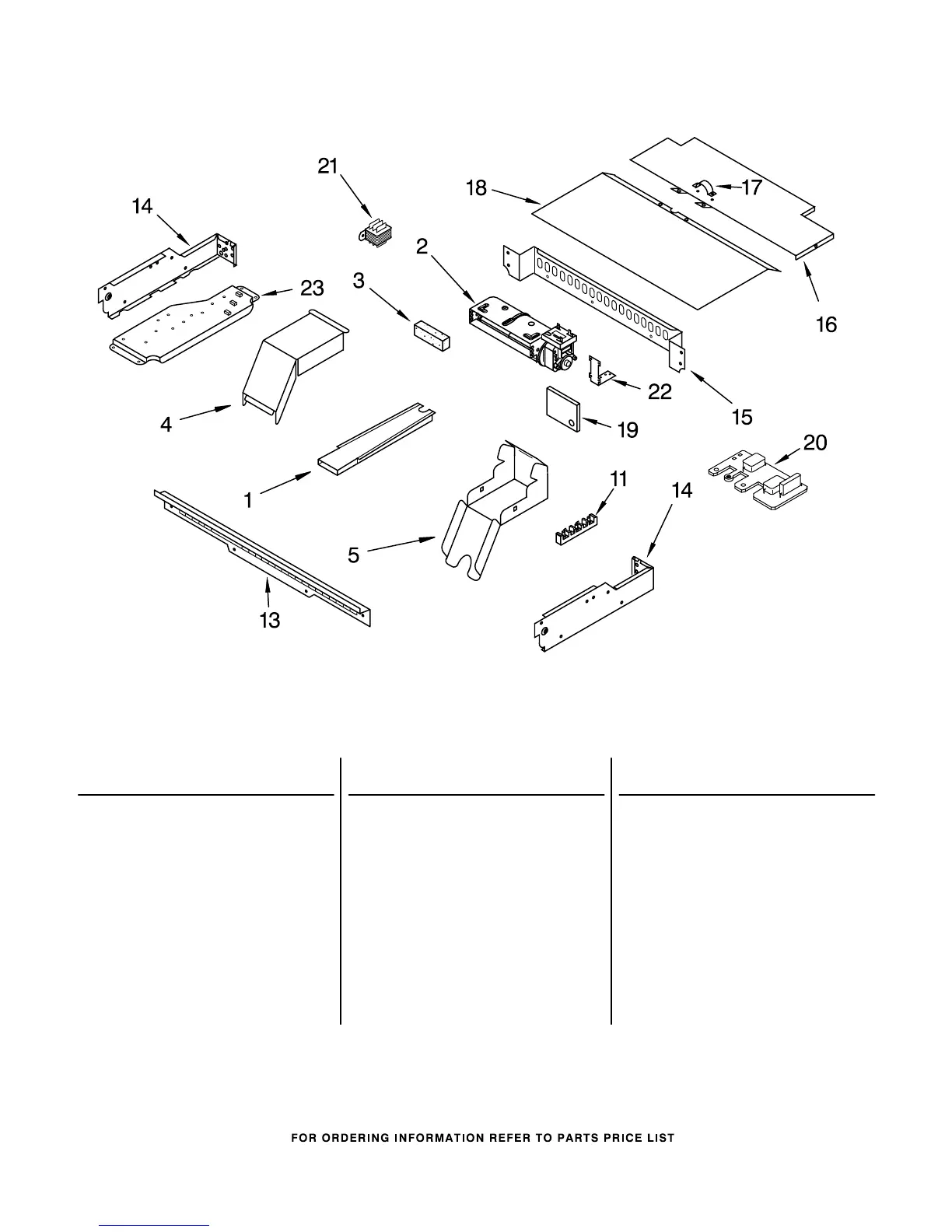

TOP VENTING PARTS
9
8185829
Illus. Part
No. No. DESCRIPTION
Illus. Part
No. No. DESCRIPTION
Illus. Part
No. No. DESCRIPTION
NOTE: The screws and nuts
required to attach a part are
listed immediately following
that part.
1 4451759 Vent, Exhaust
2 4455334 Blower 60mm
For Models:RBD245PDB12, RBD245PDQ12, RBD245PDT12,RBD245PDS12
(Black) (Designer White) (Biscuit) (Stainless Steel)
(Bl. Wh. Bt. Mdls)
6610168 Blower 45mm
(S. Steel Mdls)
3 4451758 Foam, Block
4 4455178 Elbow, Vent−Top
5 4455177 Elbow, Vent−Bottom
11 4449868 Block, Terminal
3400080 Screw
13 4448547 Vent,
(Control Panel)
4450038 Screw
14 Side, Control Top
4451597 Right
4451598 Left
4449809 Screw
4449154 Screw
15 4452244 Back, Control
4449809 Screw
16 4450549 Cover, Top Rear
4449809 Screw
17 4448664 Clamp
4449809 Screw
112432 Nut
18 4452365 Cover, Top Front
4449809 Screw
19 4454943 Plate, Fan
20 4451985 Suppressor
21 8300642 Transformer,
Single Control
22 4455352 Bracket, Blower
23 4451789 Plate, Mounting
