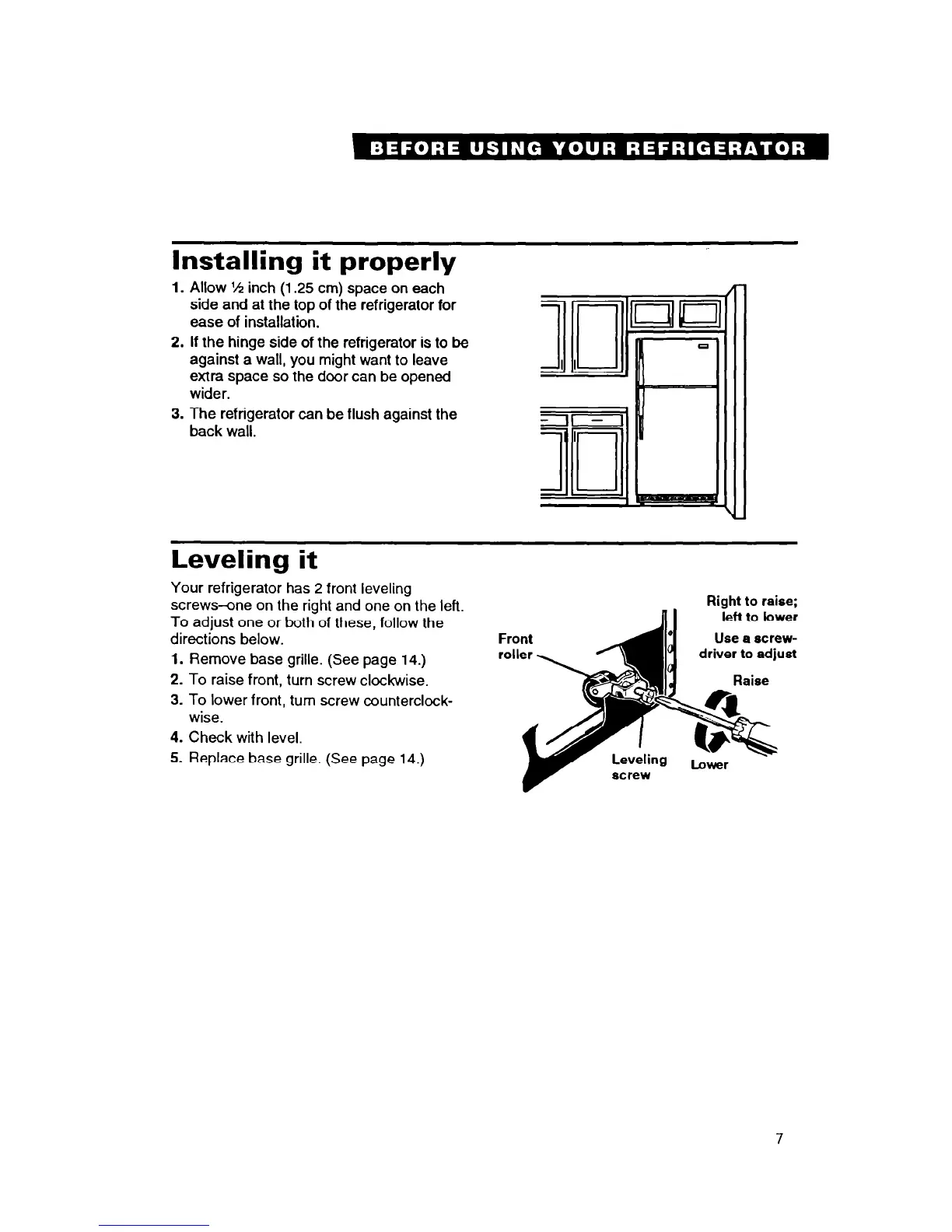

Installing it properly
1. Allow 55 inch (1.25 cm) space on each
side and at the top of the refrigerator for
ease of installation.
2. If the hinge side of the refrigerator is to be
against a wall, you might want to leave
extra space so the door can be opened
wider.
3. The refrigerator can be flush against the
back wall.
Leveling it
Your refrigerator has 2 front leveling
screws-one on the right and one on the left.
To adjust one or both of these, follow the
directions below.
1. Remove base grille. (See page 14.)
2. To raise front, turn screw clockwise.
3. To lower front, turn screw counterclock-
Right to raise;
left to lower
Use a screw-
driver to adjust
wise.
4. Check with level.
5. Replace base grille. (See page 14.)
7
