Whirlpool SIDE BY SIDE REFRIGERATOR - Refrigerator Doors; Door Removal and Installation

5
Refrigerator Doors
Gather the required tools and parts and read all instructions before starting installation.
TOOLS NEEDED: ¹⁄₄", ¹⁄₂", and ⁵⁄₁₆" hex-head socket wrenches.
IMPORTANT: Before you begin, turn the refrigerator control OFF. Unplug refrigerator or disconnect power. Remove food, the ice storage bin,
and any adjustable door or utility bins from doors.
NOTE: To get your product through the doorway of your home, measure the doorway to see if you need to remove the whole doors. See the
instructions below to remove the whole doors.
WARNING
Electrical Shock Hazard
Disconnect power before removing doors.
Failure to do so can result in death or electrical shock.

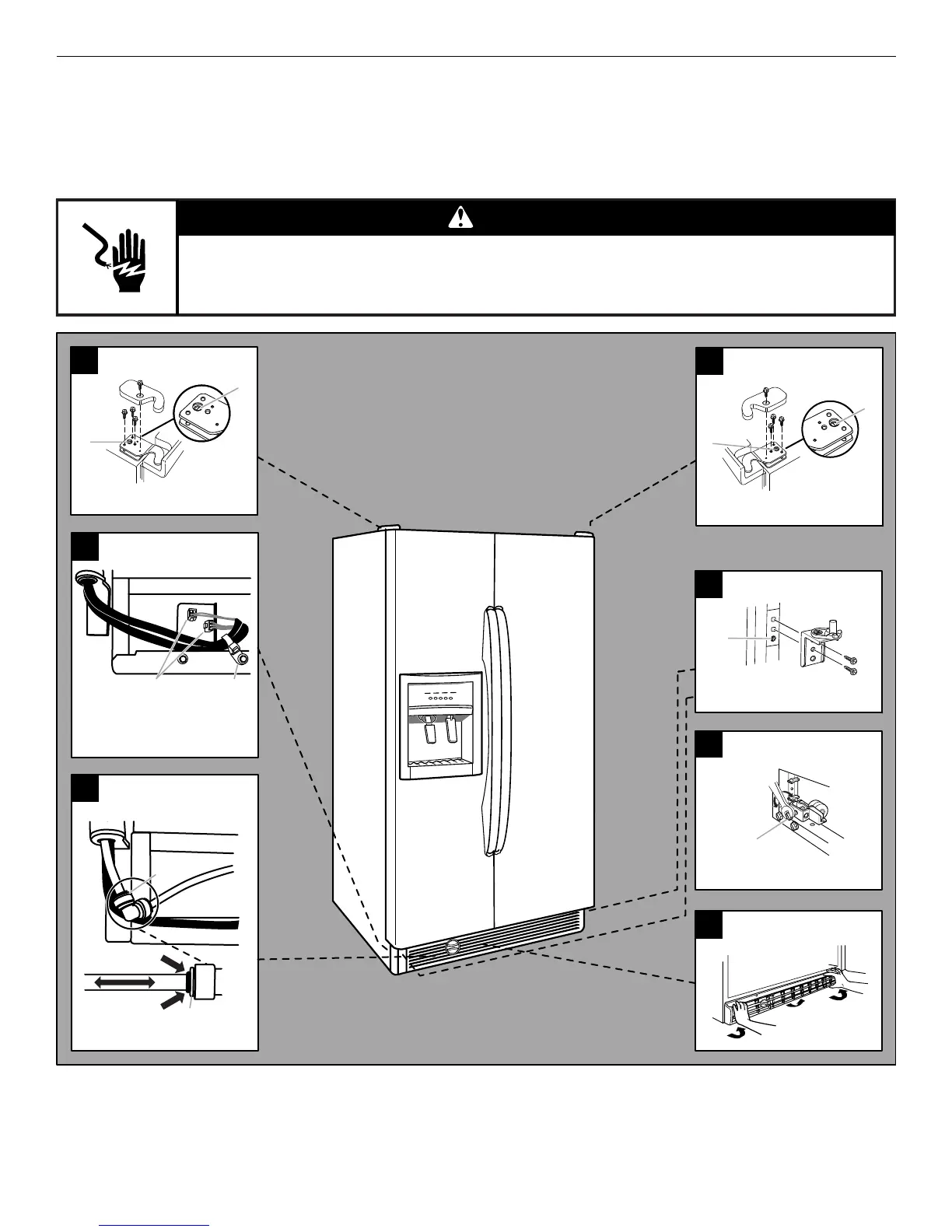

2
Water Dispenser
Tubing Connection
A. Face of fitting
4
Top Left Hinge
Do Not Remove Screw A
A
A
1
Base Grille
5
Do Not Remove Screw A
A
Top Right Hinge
3
Wiring Connection
Door Alignment
7
A. Leveling Screw
A
Bottom Hinge
6
A. Wiring plugs
B. Wiring clip
A
A
A
A B
Do Not Cut Wiring Clip B
Do Not Remove Screw A
(present on some models)
A
