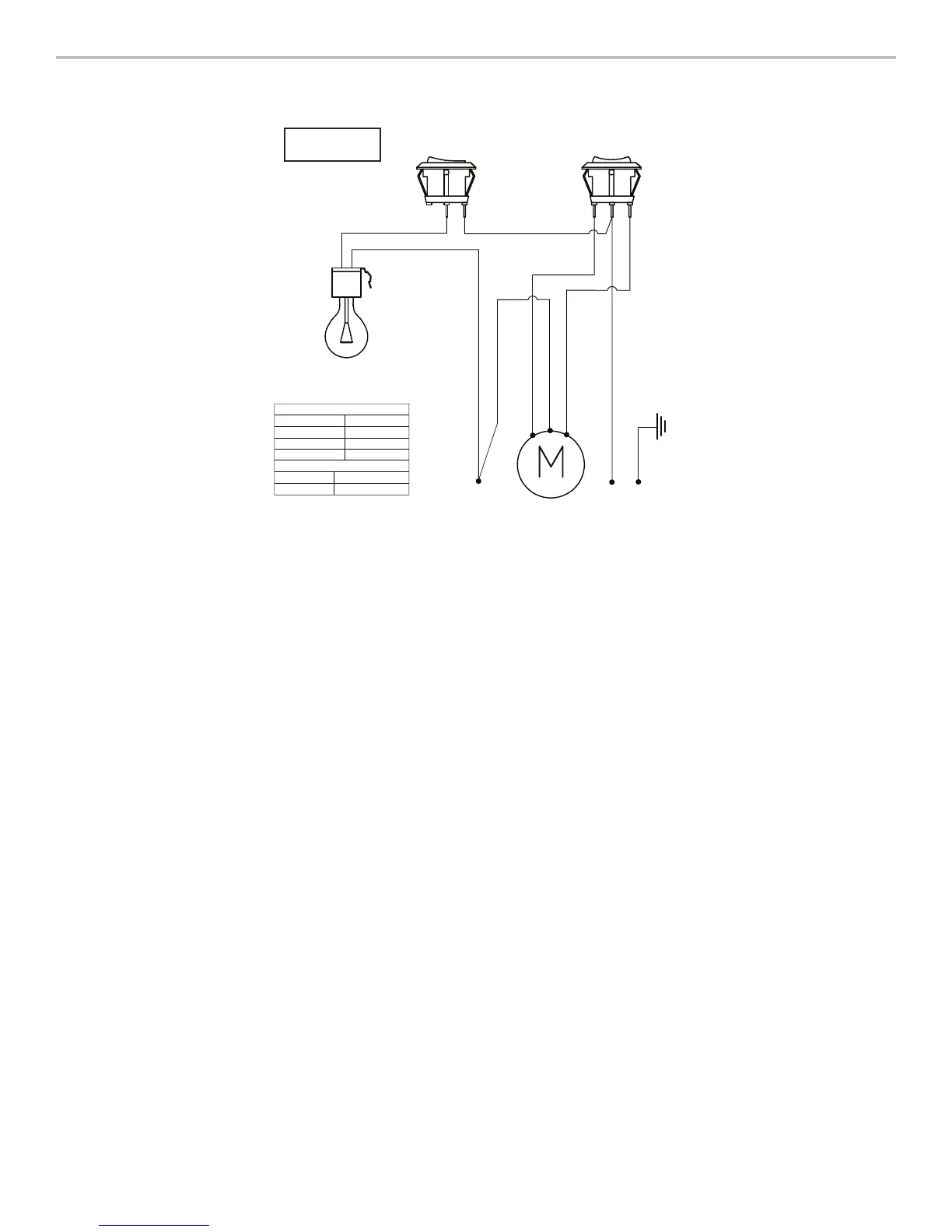

WIRING DIAGRAM
0.33 ±10% A
20 ±10% Watts
45.28 ±10% Ohms
47.44 ±10% Ohms
C10
SE113C
Motor Characteristics
Power Supply 120 VAC
Frequency 60 Hz
Amperage
Wattage Rating
Motor Resistance
Brown - White
Brown - Red
Light Switch
On - Off
Motor Switch
Low - Off - High
BK BK
WH
RD BK BR
BK
GND
Ground
Screw
LN
BR RD WH WH WH
Speed 2
Speed 1
Common
