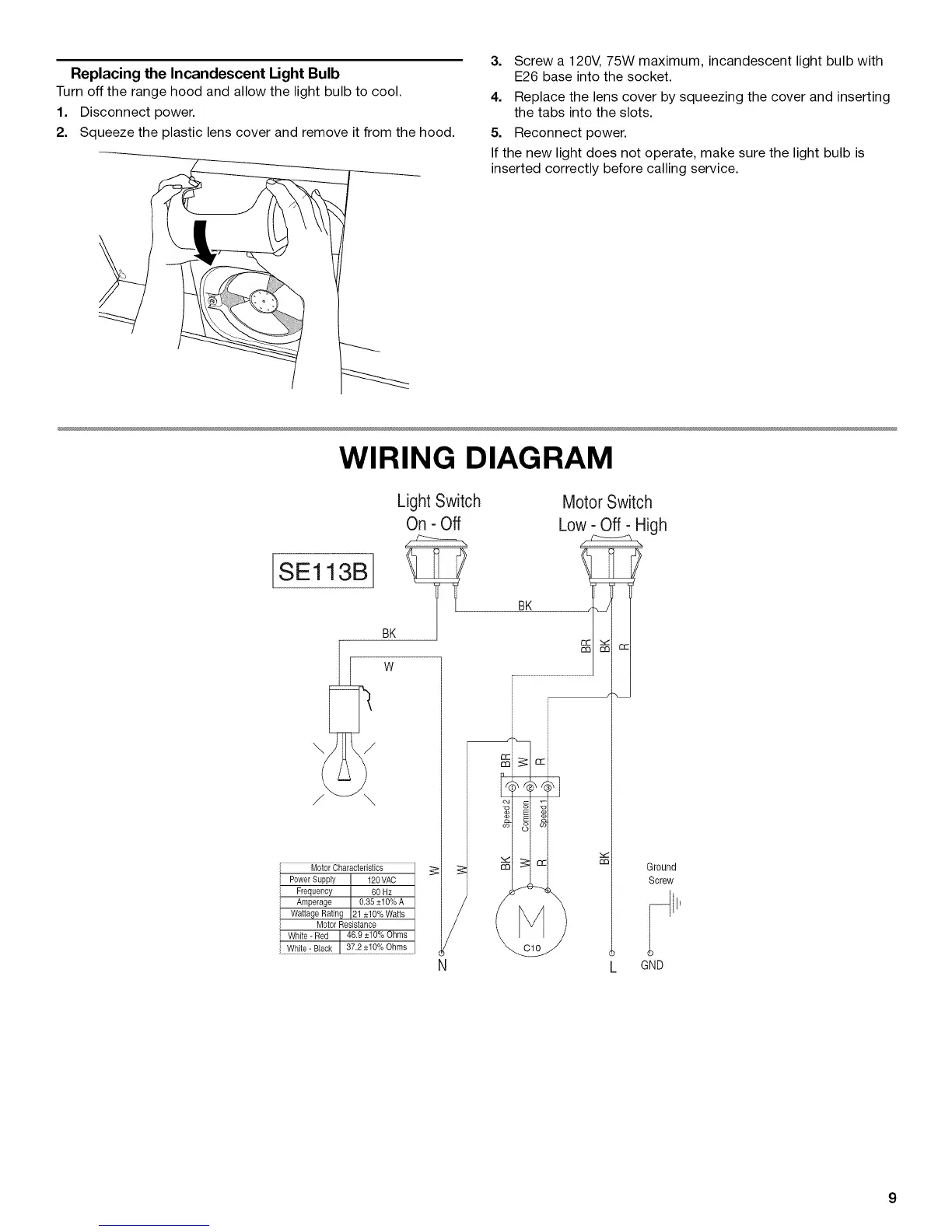

Replacing the Incandescent Light Bulb
Turn off the range hood and allow the light bulb to cool.
1. Disconnect power.
2. Squeeze the plastic lens cover and remove it from the hood.
3. Screw a 120V, 75W maximum, incandescent light bulb with
E26 base into the socket.
4. Replace the lens cover by squeezing the cover and inserting
the tabs into the slots.
5. Reconnect power.
If the new light does not operate, make sure the light bulb is
inserted correctly before calling service.
WIRING DIAGRAM
SE113B
Light Switch
On- Off
Fc:_===m
BK
w
\
/ \
Motor Characteristics
PowerSupply 120VAC
Frequency 60 Hz
Amperage 0.35 _+10%A
Wattage Rating 21 _+0% Watts
Motor Resistance
White- Red 46.9 _+10%Ohms
N
Motor Switch
Low- Off- High
BK j
rri
Ground
Screw
111
GND
