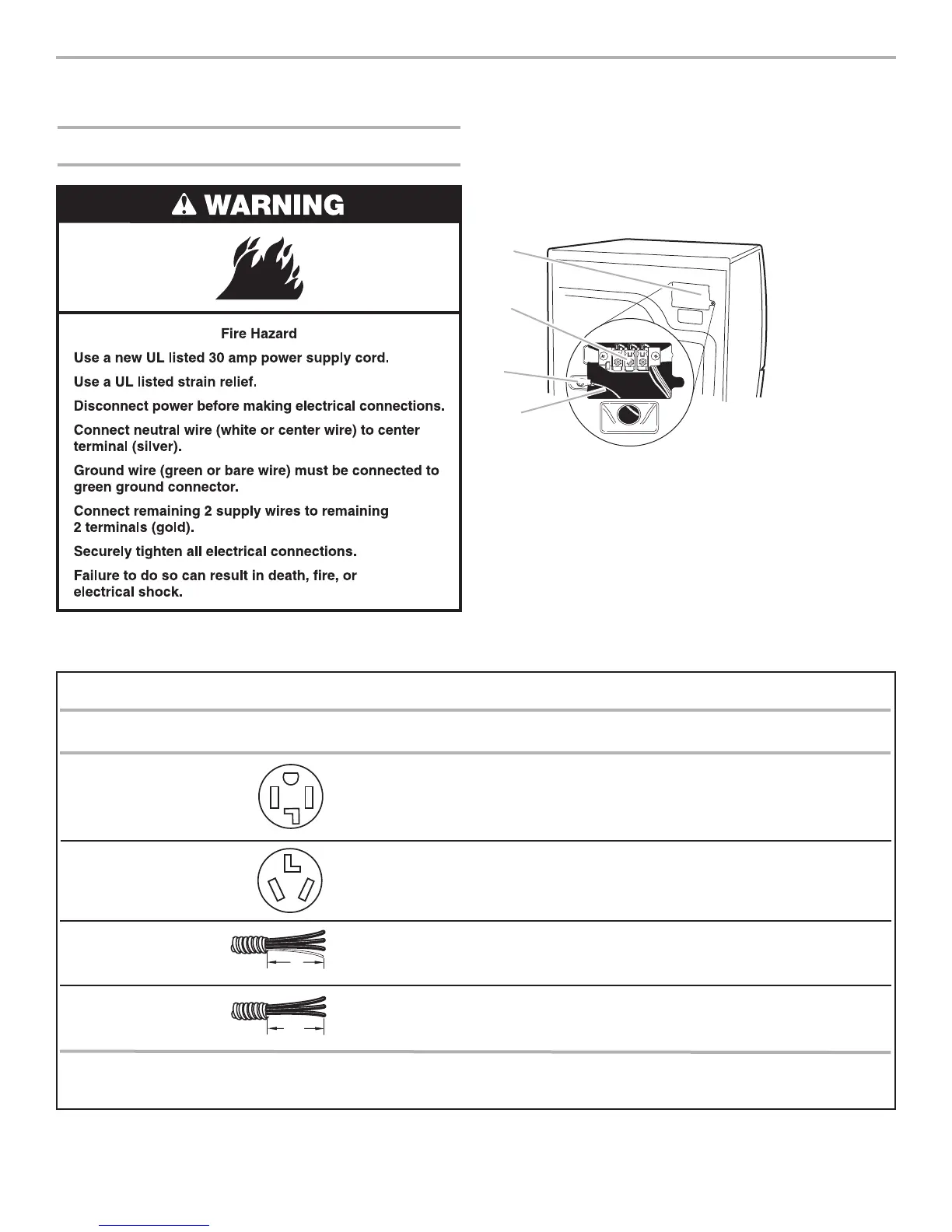

INSTALLATION INSTRUCTIONS – ELECTRIC DRYER
P
ower Supply Cord
1
. Disconnect power.
2. Remove the hold-down screw and terminal block cover.
3. Install strain relief.
B
D
C
A
A. Neutral ground wire
B. External ground conductor screw
C. Center terminal block screw
D. Terminal block cover and holddown screw
Electrical Connection Options
If your location has: And you will be Go to Section
connecting to:
4-wire receptacle A UL listed, 120/240- 4-wire connection:
(NEMA Type 14-30R) volt minimum, Power supply cord
30-amp, dryer power
supply cord*
3-wire receptacle A UL listed, 120/240- 3-wire connection:
(NEMA type 10-30R) volt minimum, Power supply cord
30-amp, dryer power
supply cord*
4-wire direct A fused disconnect or 4-wire connection:
circuit breaker box* Direct Wire
3-wire direct A fused disconnect or 3-wire connection:
circuit breaker box* Direct Wire
*If local codes do not permit the connection of a cabinet-ground conductor to the neutral wire, go to “Optional 3-wire connection”
section.
5"
(127 mm)
3
1
⁄2
"
(89 mm)
To Next Page
