Whirlpool WRD 72PS - Final Assembly

4

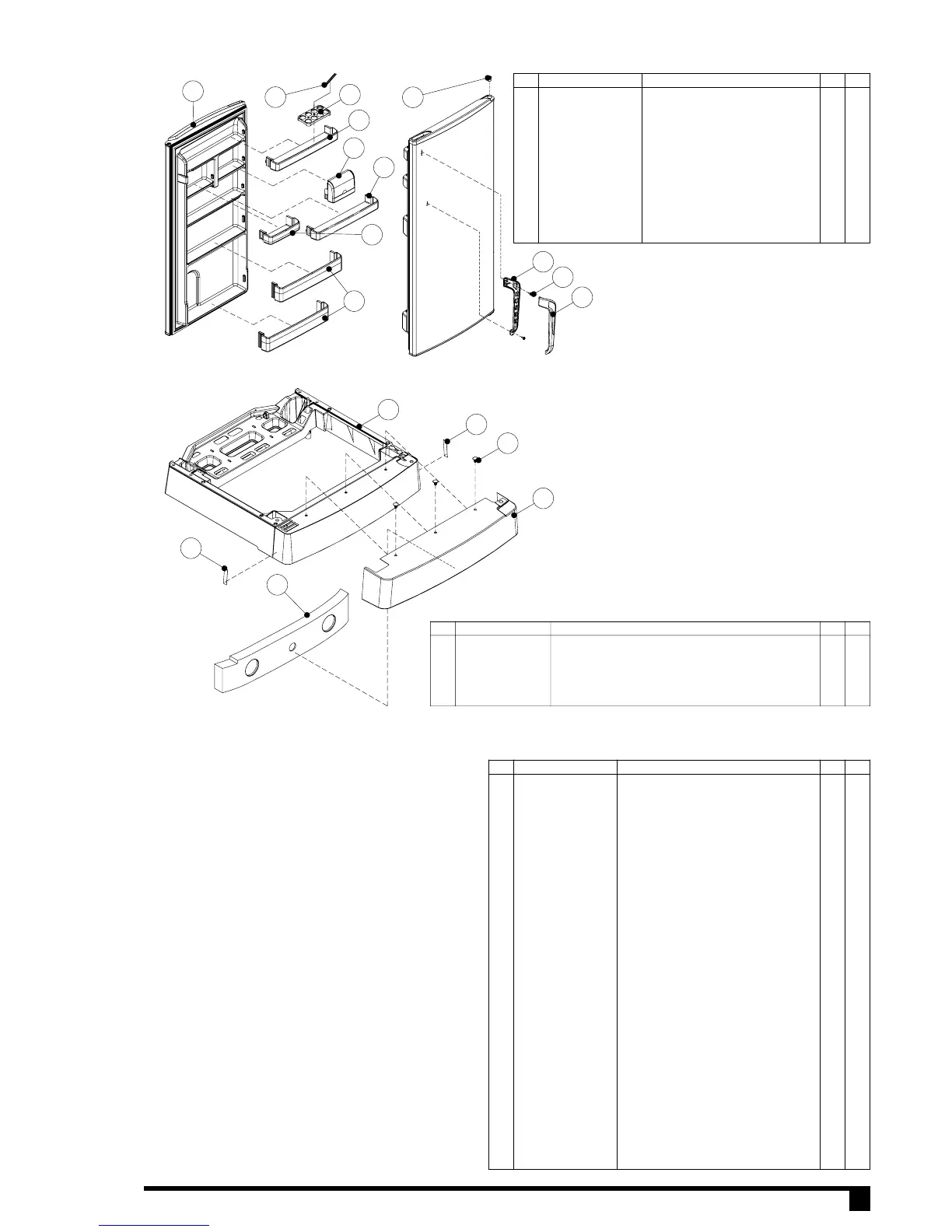

DOOR WITH ACCESSORIES
No. Item Number Description Qty UM
1 EK-137024-AAH00A Eggs Pocket Refrigerator 39 2 EA
2 EK-013803-1AA Eggs Holder (Green M35 0.5%) 1 EA
3 ZT-000001-00C LF Blue Temp Holding Tape 0.5 Inch - MT
4 EK-137025-AAH00A Bottle Pocket Small Refrigerator 39 1 EA
5 EK-167054-AAG20A Medicine Box Refrigerator 39 Kit M02 1 KT
6 EK-137023-AAH00A Bottle Pocket Refrigerator 39 2 EA
7 KD-010272-00A Door Assy WRD72PS (Whirlpool) 1 EA
8 WC-013814-00A Bushing 6 mm Refrigerator-24 1 EA
9 VB-013811-0AA Bottom Handle (Grey M103) 1 EA
10 WS-205016-04A Metric Screw STW 5 x 16 MC 2 EA
11 EK-013811-0AE Upper Handle (Electroplating) 1 EA
1
1
2
3
4
5
6
7
8
9
10
11
BASEBOARD REF CURVE DOOR ASSY
No. Item Number Description Qty UM
1 VB-147333-AAB01 Baseboard Refrigerator Curve Door (Grey M103) 1 EA
2 TF-401000-08A Double Tape with Foam 1/2 Inch Thickness = 1 mm 0.1 MT
3 VF-137640-CAA00 Extended Baseboard (Grey M103) with Painting + Printing 1 EA
4 EP-043773-0AA Serration Clip for Extender Baseboard R39 3 EA
5 GD-177588-ABA00 Spacer for Extended Baseboard R39 1 EA
1
2
2
3
4
5
FINAL ASSEMBLY
EXPLODE DRAWING
No. Item Number Description Qty UM
1 - Foamed Cabinet 1 EA
2 EM-110101-1AA Door Switch without Seal 1 EA
3 KE-000507-00A Base for Control Box R24 Assy 1 EA
4 WS-204012-0AA Tap Screw SUS TSAT 4 x 12 3 EA
5 WE-201201-00A Lamp T-20 Lamp Base E-12 Nickel Plated 1 EA
6 EC-187759-AAA10 Cover for Control Box R24 with Print 1 EA
7 EN-187043-AAA10 Thermostat Knob Refrigerator 24 (M01) 1 EA
8 WC-013815-00F Push Button Tap Refrigerator-24 1 EA
9 EK-013815-0AM Lens for Control Box Refrigerator 24 1 EA
10 VG-147531-AFA10 Bended O Rollbond Evaporator 1 EA
11 EK-013814-0AK Thermostat NTC Clip Refrigerator-24 (M01) 1 EA
12 ZC-013201-00A Heat Shrinkable Tube In Diameter 8 mm 1 MT
13 ZL-440000-00A Putty Black II for Silencer 1 EA
14 TO-134305-00A Putty Back Silence Black 1 EA
15 VD-013801-0AA Ice Cube Tray (White M11) 2 EA
16 VD-137853-BAA00 Frame for Evaporator DW R39 1 EA
17 WS-204018-0AA Tapping Screw TSAT 4 x 18 SUS 2 EA
18 ZT-000002-00A Blue Temp Holding Tape 1 Inch - MT
19 HA-137775-BAA00A Front Door Evaporator 2 R39 1 EA
20 HB-137776-BAA00 Rear Door for Evaporator SM R39 1 EA
21 VD-137029-AAB20A Chiller Refrigerator 39 M02 1 EA
22 WC-013809-00B Upper Drain (M01) 1 EA
23 KE-000437-00A Glass Shelf Assy 3 ST
24 EK-137031-AAG00A Chrisper Refrigerator 39 1 EA
25 GA-137506-AJA10 Carton Layer for Separator (M01) 3 EA
26 HA-137570-CRA00 Tempered Glass for Refrigerator 1 EA
27 - Door with Accessories 1 EA
28 WA-137015-00A Upper Hinge Refrigerator 50 1 EA
