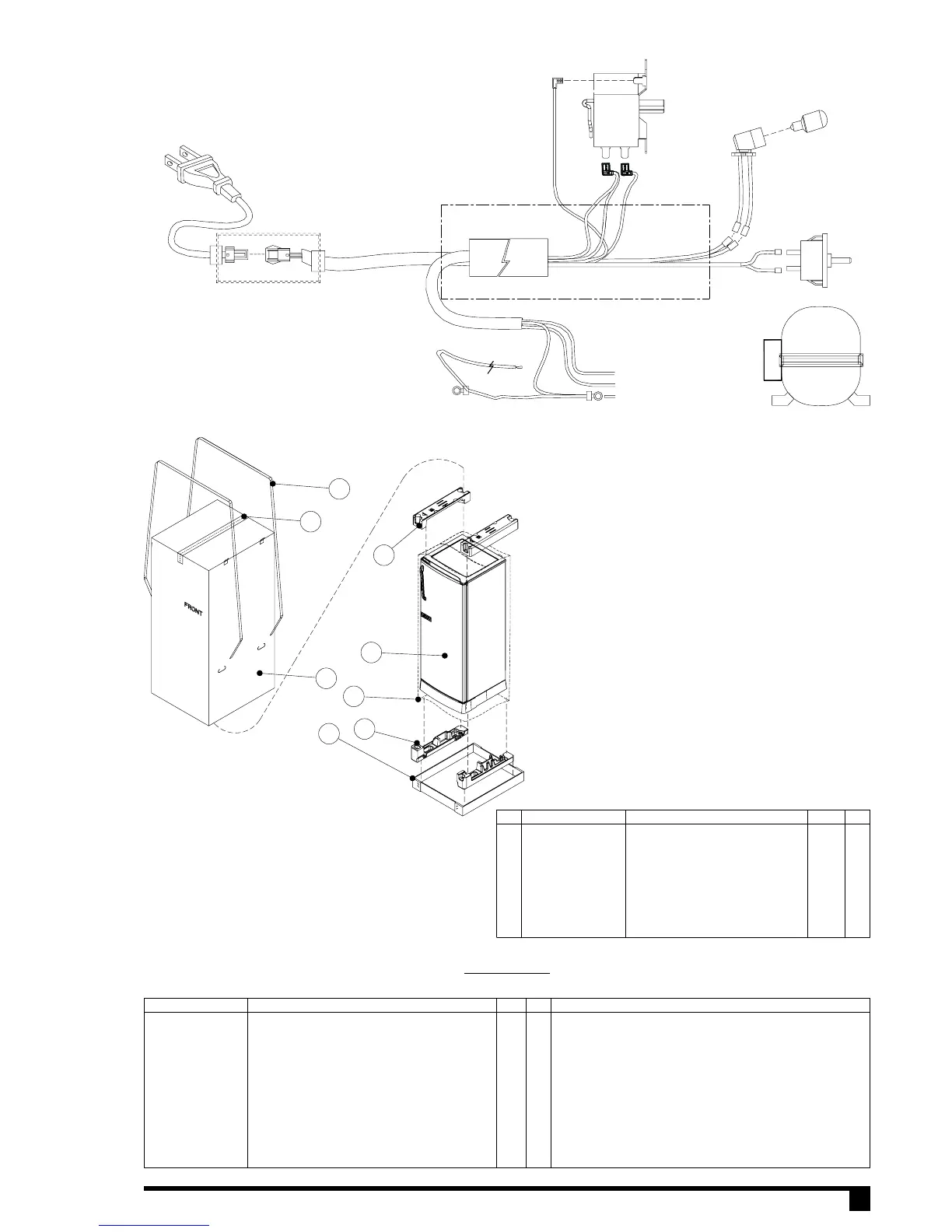

Whirlpool WRD 72PS - Part List; Before Test

No. Item Number Description Qty UM
1 - WRD 72PS 1 ST
2 GH-125110-05A Plastic Bag 1100 x 1250 x 0.05 mm 1 EA
3 GA-177586-AJA00 Bottom Carton SL R39 with Baseboard 1 EA
4 GD-177585-ABA00 Bottom Polyfoam SL R39 with Base 1 EA
5 GD-177584-ABA00 Top Polyfoam SL R39 with Baseboard 1 EA
6 GA-177406-AJA00A Top Carton WRD 72PS 1 EA
7 TF-002801-002 Plak Band Bening 2 Inch 0.015 MT
8 ZT-001001-00A Strapping Band width = 15 mm 8.01 MT
6
WIRING CONNECTION
THERMOSTAT
LAMP
DOOR SWITCH
COMPRESSOR
GROUND CABLE
AC CORD
blue
brown
black
brown
thermostat grounding
blue
brown
black = PTC connection
blue = OLP connection
ground = compressor
PACKING DRAWING
1
2
3
4
5
6
7
8
PART LIST
BEFORE TEST
Item Number Description Qty UM Reference
EC-137638-CEA00 Shielding 1 for Power Cord 1 EA
EC-137639-CEA00 Shielding 2 for Power Cord 1 EA
EC-187759-AAA10 Cover for Control Box R24 with Print 1 EA
EG-533008-CRA Tap Screw NC BTV 3 x 8 4 EA Top Table -> Upper Met
EG-544121-YLA Tap Screw MC BTV 4 x 12 2 EA for Cover Terminal Block
EG-574162-YL Tap Screw MC TSAT 4 x 16 2 EA for Shielding Power Cord
EK-010203-0DB Dry Filter In Diameter 4.9 / 6.5 x In Diameter 1.95 mm 1 EA
EK-013811-0AE Upper Handle (Electroplating) 1 EA
EK-013814-0AK Thermostat NTC Clip Refrigerator - 24 1 EA
EK-013815-0AM Lens for Control Box Refrigerator 24 1 EA
EK-020102-2EA Compressor Fastening Plate 2 EA
