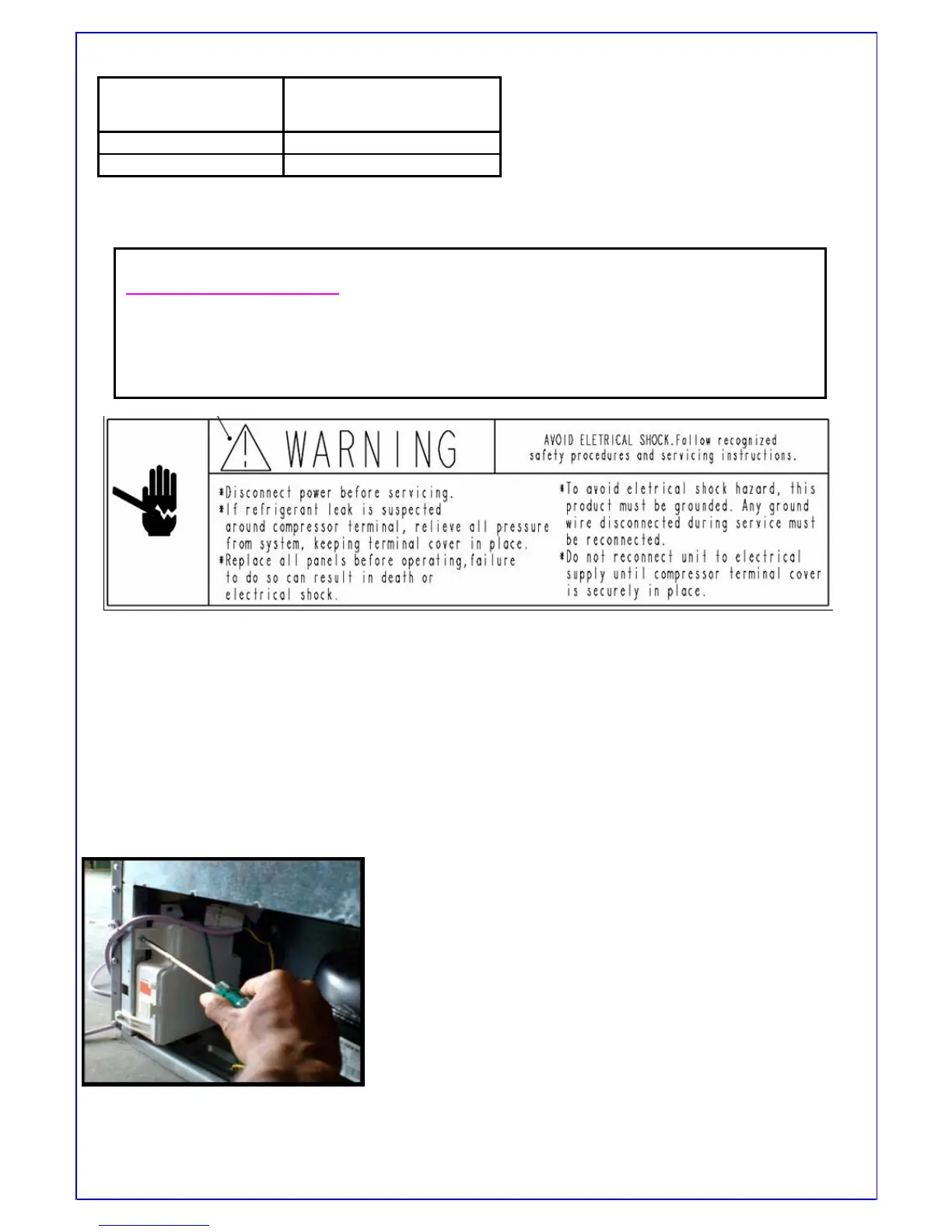

Refrigerant Charging Qty:
Model Refrigerant R134a(gms)
410L Dlx 146
445L Dlx 152
CN1 (Connector 1) – Compressor, Heater and Power Cord
CN2 (Connector 2) – RC/FC LED, Load component and Temperature Sensors/POT
CN3 (Connector 3) – User Interface board (Used only for Elite models)
Assembly &Disassembly Procedure
Disassembly Procedure:
A) Core Board Box
1. Disconnect the Power cord from the Mains supply.
2. Remove the Mounting Screws.
WARNING
Electrostatic Discharge Risk
Do not touch the Circuit components, because you can damage fuse/burned or weaken the
board.
Always handle the Boards by the sides/plastic holder.
Spare parts/stock boards if outside the BOX must be kept in anti-static packaging.
