3-4

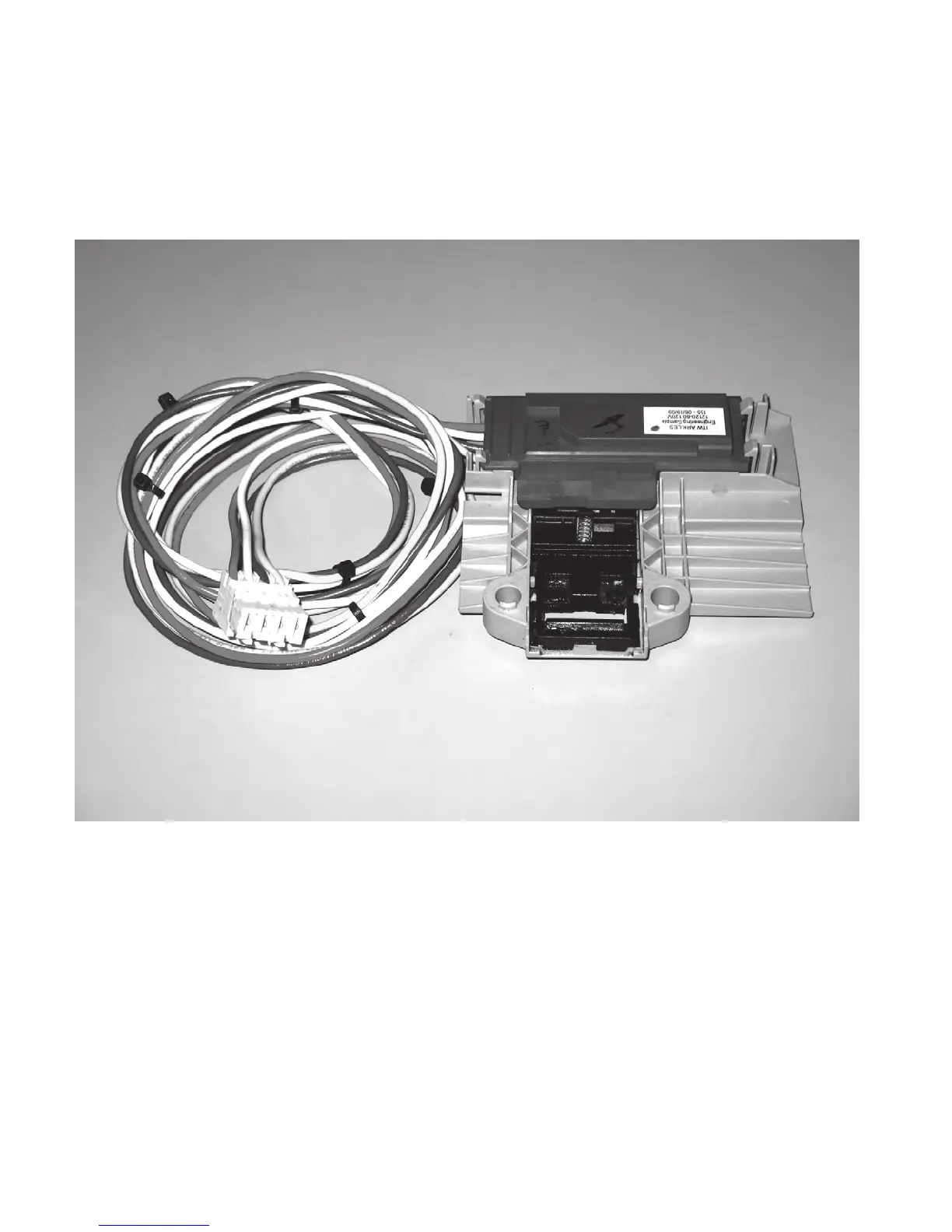

Since this washer does not utilize a brake, a lid lock is used to
prevent access during use. During a cycle, a lid lock mechanism will lock the lid. The lid must
be closed for the machine to ll, wash, drain, or spin. The mechanism houses a switch that
senses that the lid is down, a latch solenoid and a switch to conrm that the lid is locked.
LID LOCK MECHANISM
