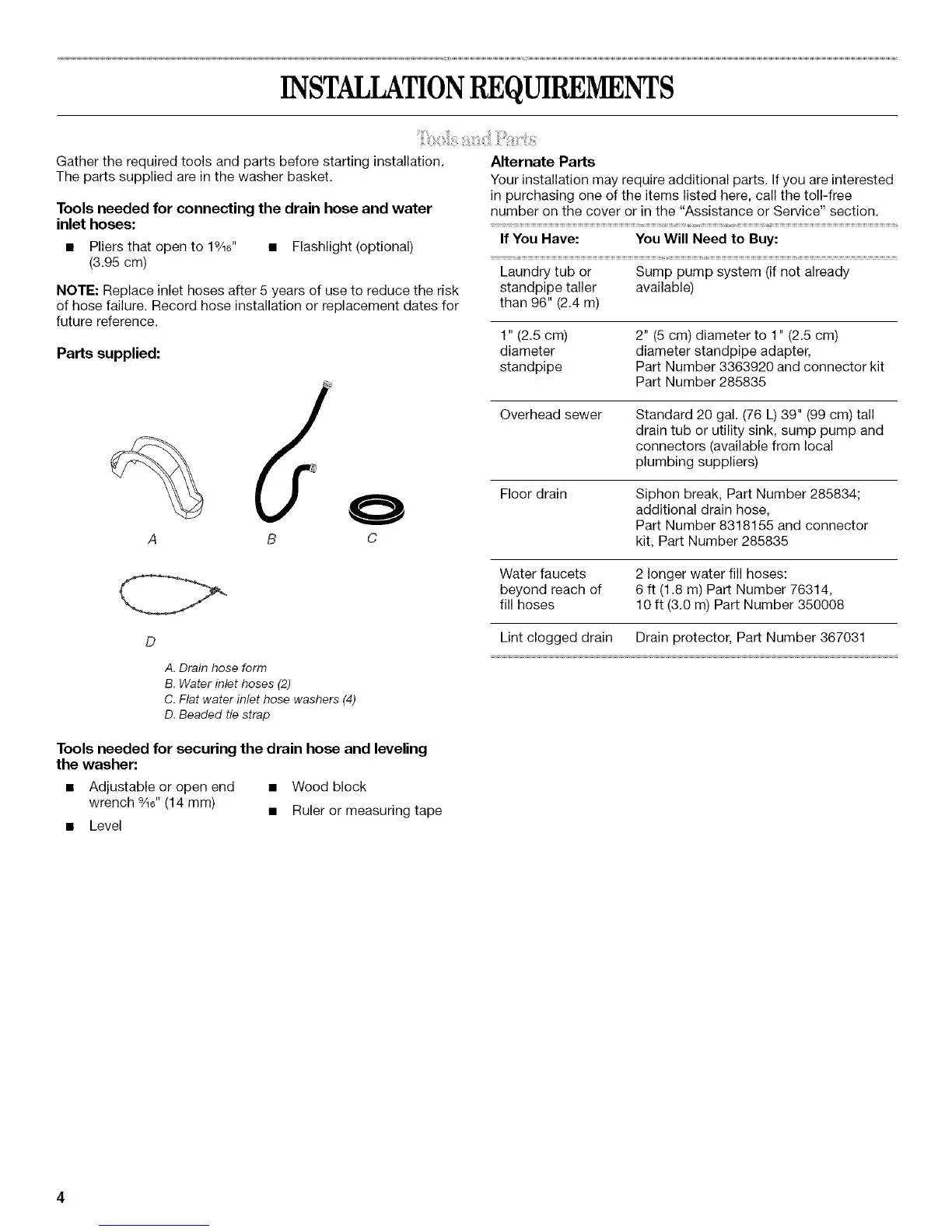

INSTALLATIONREQUIREMENTS
Gather the required tools and parts before starting installation.
The parts supplied are in the washer basket.
Tools needed for connecting the drain hose and water
inlet hoses:
• Pliers that open to 1%6" • Flashlight (optional)
(3.95 cm)
NOTE: Replace inlet hoses after 5 years of use to reduce the risk
of hose failure. Record hose installation or replacement dates for
future reference.
Parts supplied:
A B C
D
A. Drain hose form
B. Water inlet hoses (2)
C. Flat water inlet hose washers (4)
D. Beaded tie strap
Tools needed for securing the drain hose and leveling
the washer:
• Adjustable or open end • Wood block
wrench %6" (14 mm) • Ruler or measuring tape
• Level
Alternate Parts
Your installation may require additional parts. Ifyou are interested
in purchasing one of the items listed here, call the toll-free
number on the cover or in the "Assistance or Service" section.
If You Have: You Will Need to Buy:
Laundry tub or Sump pump system (if not already
standpipe taller available)
than 96" (2.4 m)
1" (2.5 cm) 2" (5 cm) diameter to 1" (2.5 cm)
diameter diameter standpipe adapter,
standpipe Part Number 3363920 and connector kit
Part Number 285835
Overhead sewer Standard 20 gal. (76 L) 39" (99 cm) tall
drain tub or utility sink, sump pump and
connectors (available from local
plumbing suppliers)
Floor drain Siphon break, Part Number 285834;
additional drain hose,
Part Number 8318155 and connector
kit, Part Number 285835
Water faucets 2 longer water fill hoses:
beyond reach of 6 ft (1.8 m) Part Number 76314,
fill hoses 10 ft (3.0 m) Part Number 350008
Lint clogged drain Drain protector, Part Number 367031
