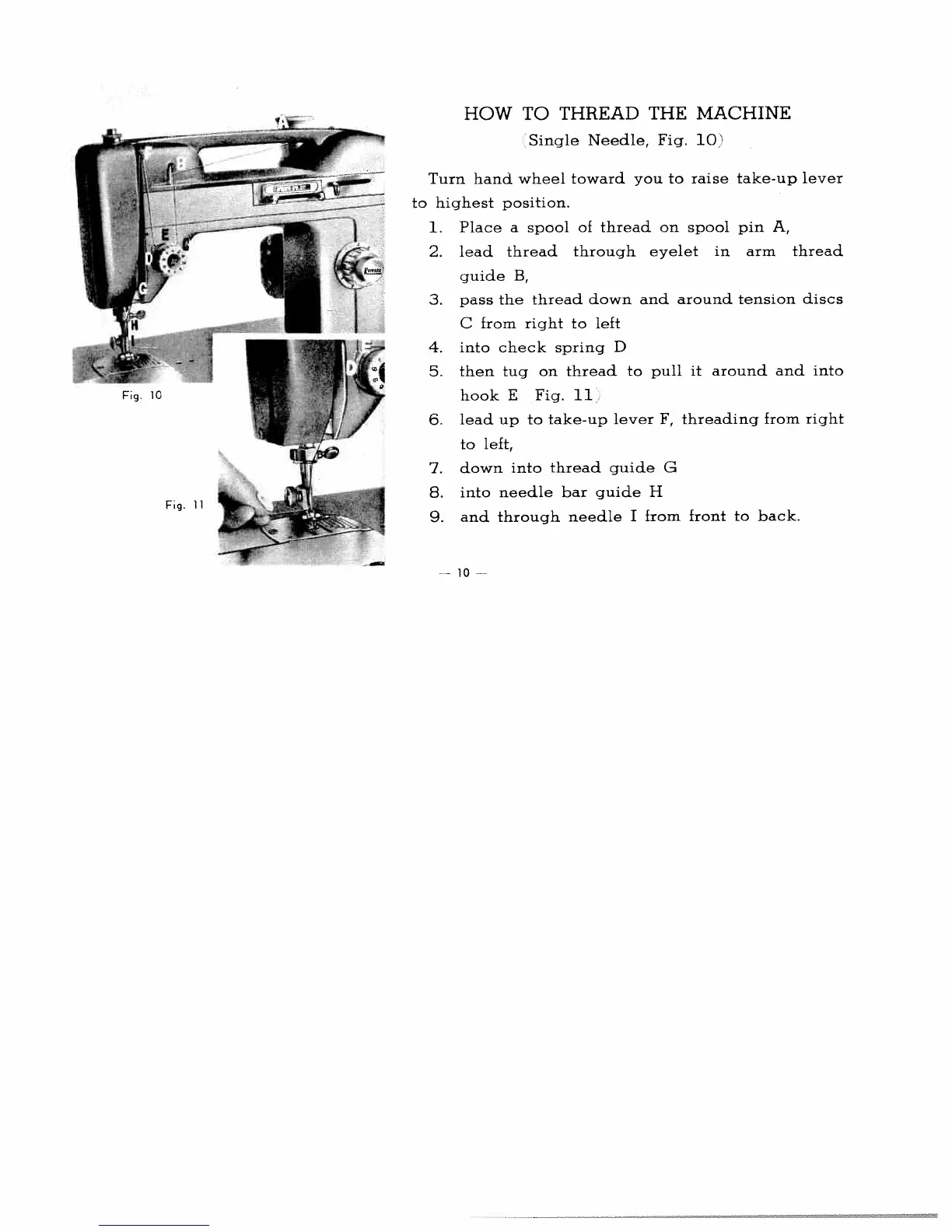

White 2137 - How to Thread the Machine; Single Needle Threading Path

HOW
TO
THREAD THE
MACHINE
Single
Needle, Fig. 1O
Turn
hand
wheel toward
you to raise
take-up lever
to
highest position.
1.
Place a spool of
thread
on
spool pin A,
2.
lead thread
through eyelet in arm
thread
guide B,
3.
pass the thread down
and around tension
discs
C from right to
left
4.
into check spring
D
5.
then
tug on thread to
pull it around and
into
hook E Fig.
11
6.
lead
up
to
take-up
lever
F,
threading
from right
to
left,
7.
down into
thread guide G
8.
into needle
bar guide H
9.
and through
needle I
from front to
back.
Fig.
1 1 —
10
