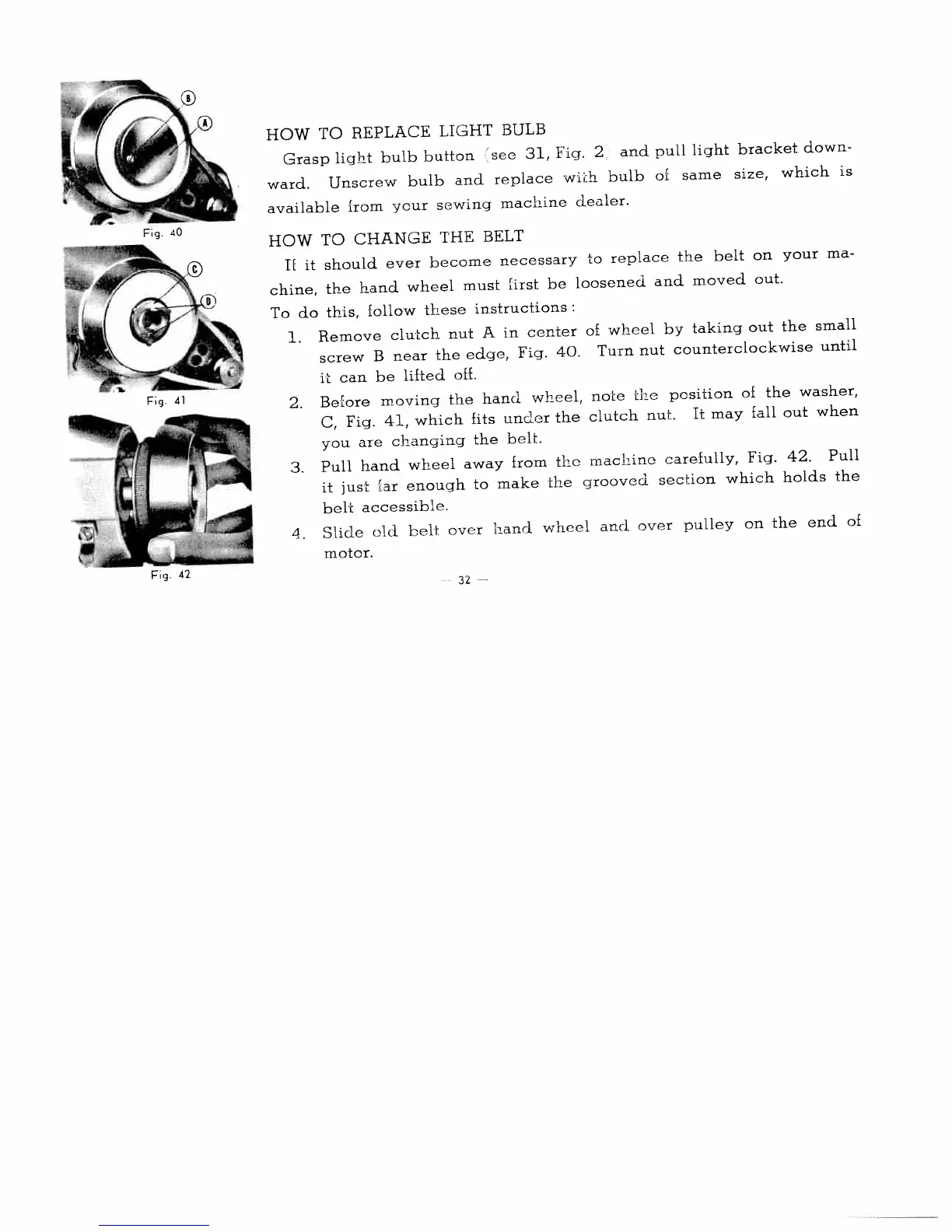

HOW
TO
REPLACE
LIGHT
BULB
Grasp
light
bulb
button
see
31,
Fig.
2
and
pull
light
bracket
down
ward.
Unscrew
bulb
and
replace
wiih
bulb
of
same
size,
which
is
available
from
your
sewing
machine
dealer.
HOW
TO
CHANGE
THE
BELT
H
it
should
ever
become
necessary
to
replace
the
belt
on
your
ma
chine,
the
hand
wheel
must
first
be
loosened
and
moved
out.
To
do
this,
follow
these
instructions:
1.
Remove
clutch
nut
A
in
center
of
wheel
by
taking
out
the
small
screw
B
near
the
edge,
Fig.
40.
Turn
nut
counterclockwise
until
it
can
be
lifted
off.
2.
Before
moving
the
hand
wheel,
note
the
position
of
the
washer,
C,
Fig.
41,
which
fits
under
the
clutch
nut.
It
may
fall
out
when
you
are
changing
the
belt.
3.
Pull
hand
wheel
away
from
the
machine
carefully,
Fig.
42.
Pull
it
just
far
enough
to
make
the
grooved
section
which
holds
the
belt
accessible.
4.
Slide
old
belt
over
hand
wheel
and
over
pulley
on
the
end
of
motor.
32
