White 2137 - Page 36

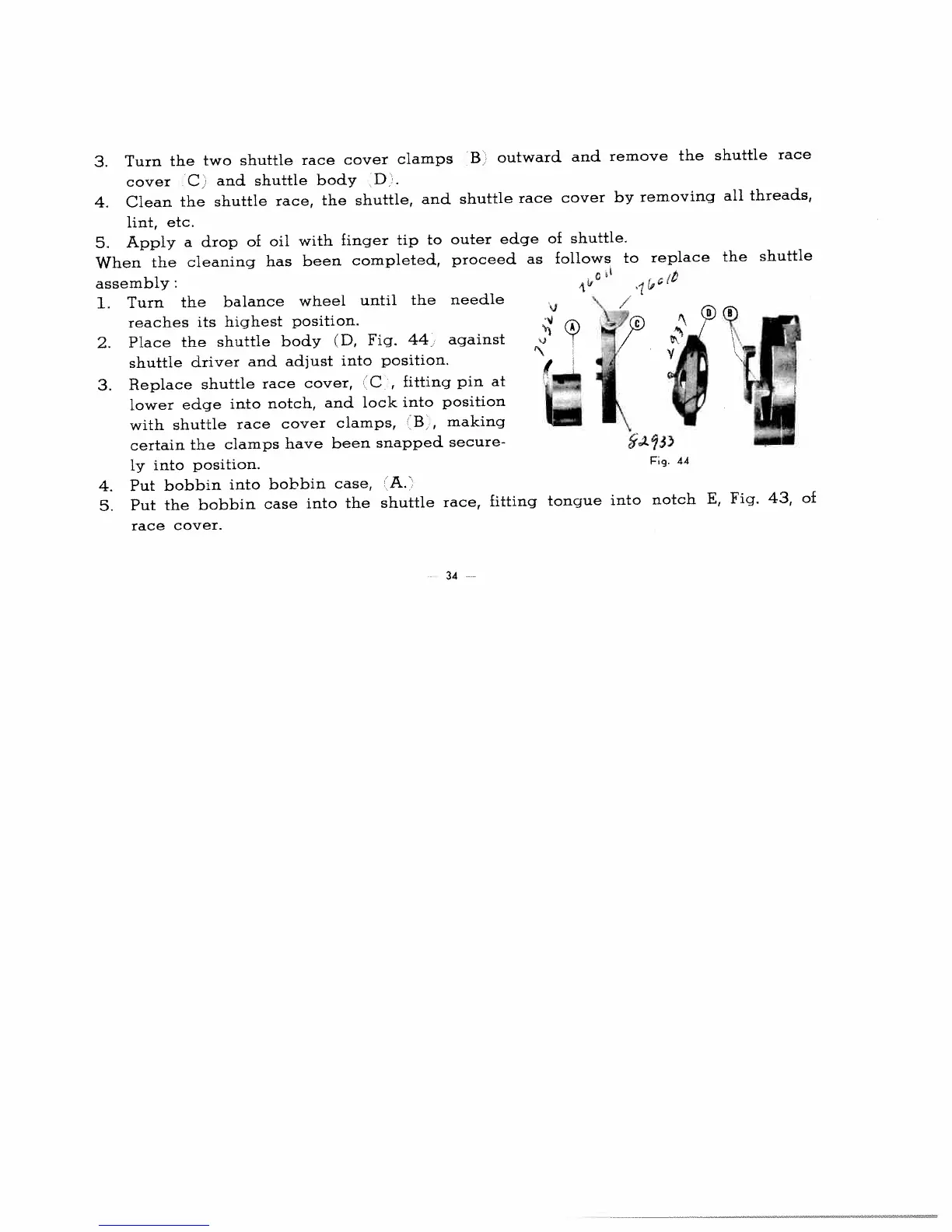

3.
Turn
the
two shuttle
race
cover
clamps
B)
outward
and
remove
the
shuttle
race
cover
C
and
shuttle
body
D
4. Clean
the
shuttle
race, the
shuttle,
and
shuttle
race
cover
by
removing
all
threads,
lint,
etc.
5.
Apply
a
drop
of
oil
with finger
tip
to
outer
edge
of
shuttle.
When
the
cleaning
has
been
completed,
proceed
as
follows
to
replace
the
shuttle
assembly:
G
1.
Turn
the
balance
wheel
until
the
needle
/
reaches
its
highest
position.
A
2.
Place
the
shuttle
body
(D,
Fig.
44
against
.,
shuttle
driver
and
adjust
into
position.
3
Replace
shuttle
race
cover
C
fitting
pin
at
lower
edge
into
notch
and lock
into
position
with
shuttle
race
cover
clamps,
B
,
making
certain
the
clamps
have
been
snapped
secure
ly
into
position.
Fig.
44
4.
Put
bobbin
into
bobbin
case,
A.
5.
Put
the
bobbin
case
into
the
shuttle
race,
fitting
tongue
into
notch
E,
Fig.
43,
of
race
cover.
34
